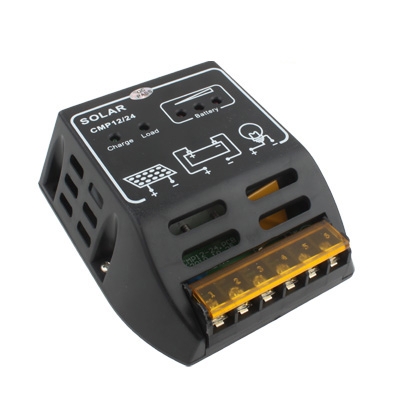

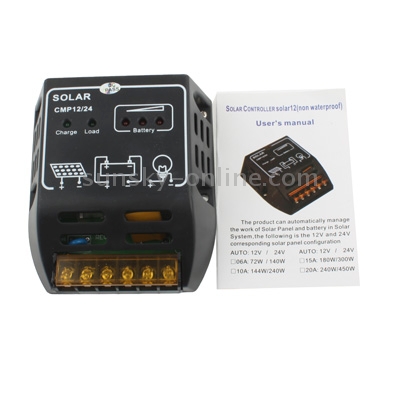

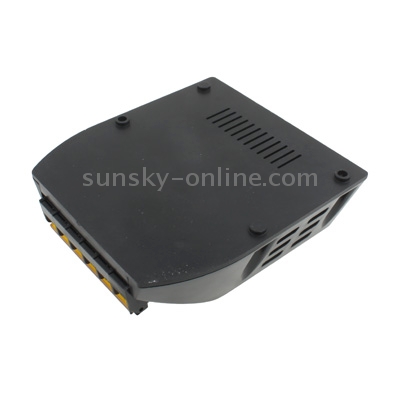

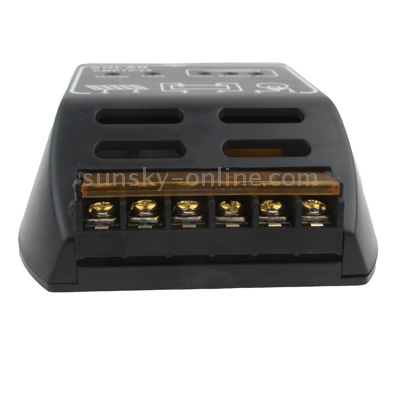

10A 12V/24V Portable Solar Panel Charger Controller DC(Black)
太阳能控制器 CMP12 10A(12V/24V)
条码：6922849703284
HSCode：85044014
批量修改原始型号 		采购：Tony  编辑：Alan  产品经理：Maura

* Description:

-This Solar Panel Charger Controller Regulator is specially designed to protect the battery, which is able to keep the battery on full voltage condition and prevent the battery from over-charging, over-discharging and supplying power to solar panels during nights.

* Feature:

-Generally keep the battery on full voltage condition.

-Prevent the battery from over-charging.

-Prevent the battery from over-discharging.

-Prevent the battery from supplying power to solar panels during nights.

-Specs:

-Rated voltage: 12V or 24V (Auto switch between 12v/24v, 60W/120W)

-Rated charging current: 10A

-Rated load current: 10A

-Operating temperature: -20 ~ +60°C

-Dimensions: 10 x 9.5 x 3.8cm

* Parameters:

-Rated voltage 12V or 24V Voltage of stop power supply *10.8V or 21.6V

-Rated charging current 10A Voltage of resume power supply *11.8V or 23.6V

-Dimension: 101x95x35mm
代码：

Specification:
Package weight
One package Weight 0.2kgs / 0.44lb
Qty per Carton 52
Carton Weight 10kgs / 22.05lb
Carton Size 40cm * 30cm * 30cm / 15.75inch * 11.81inch * 11.81inch
