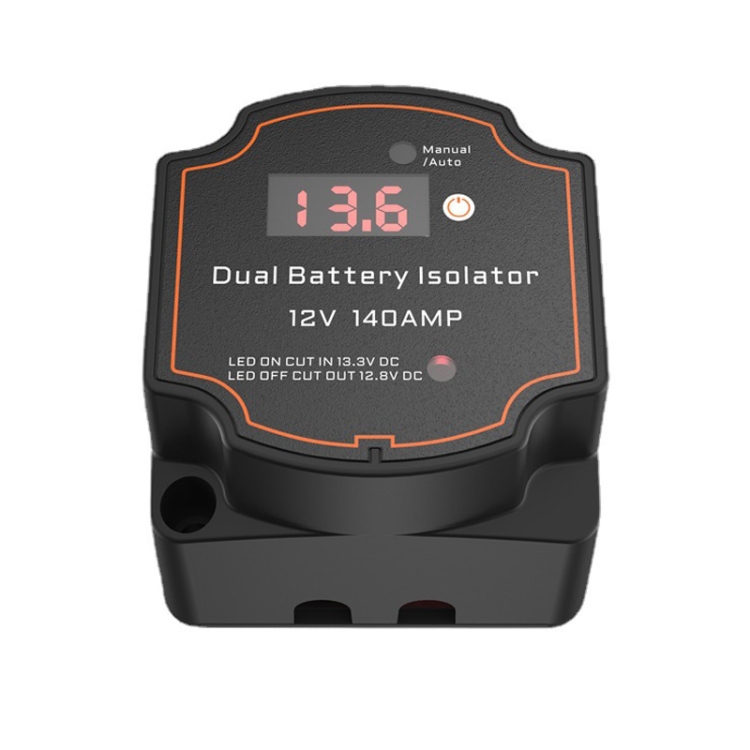

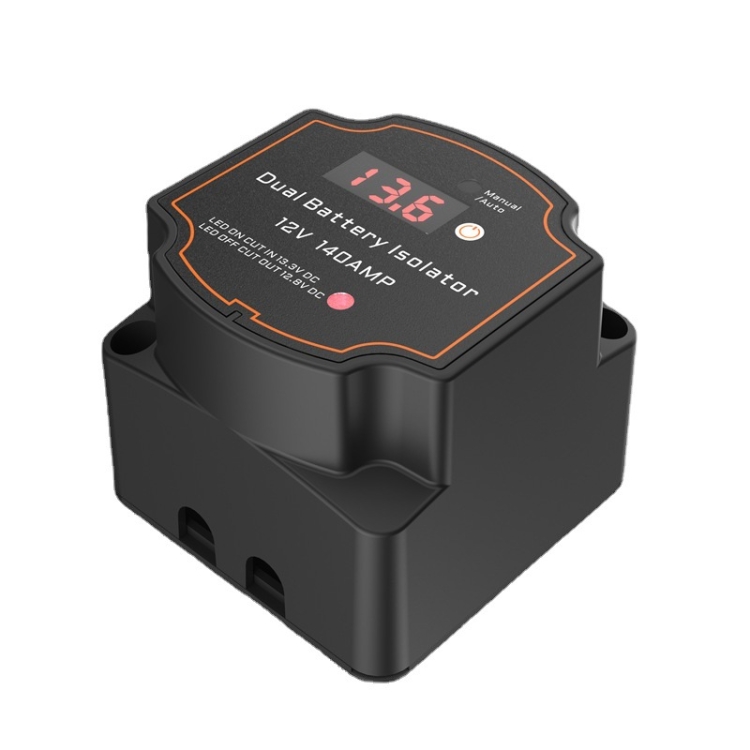

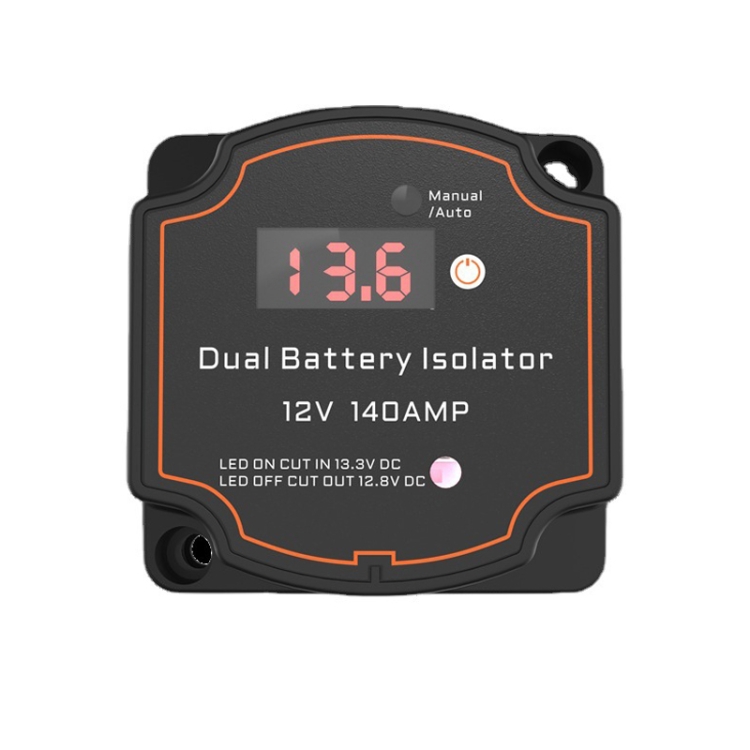

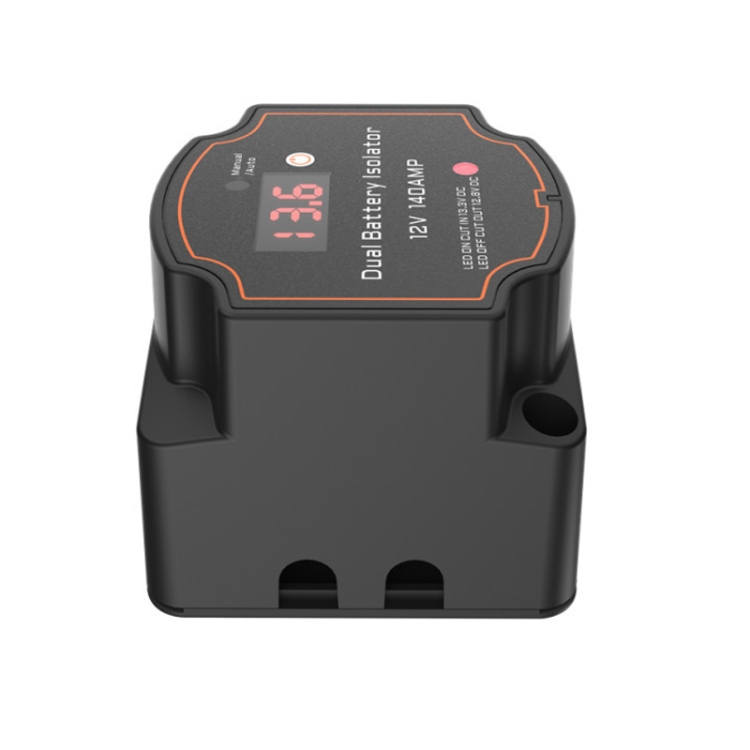

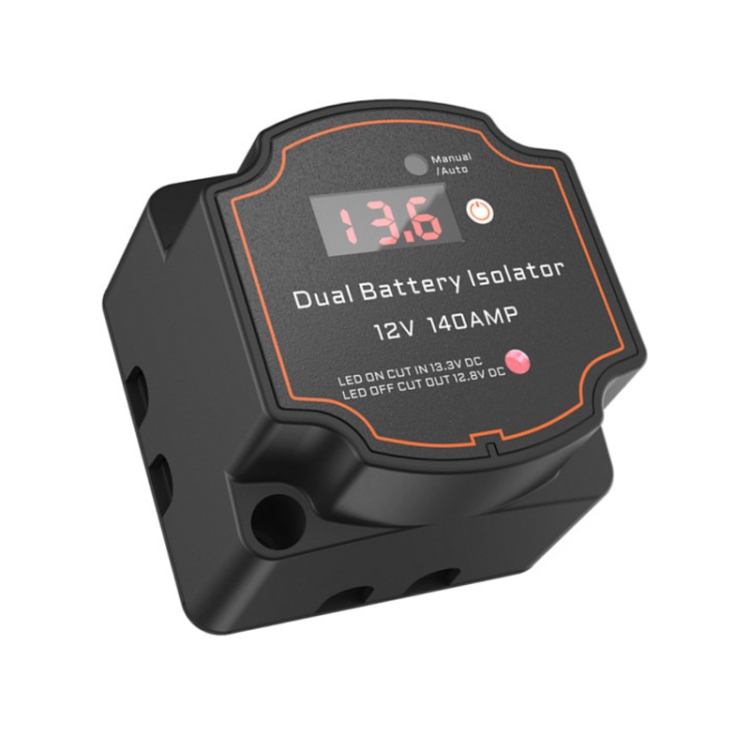

IP68 12V 140A Car Yacht RV Smart Dual Battery Isolation Controller VSR Digital Display Voltmeter
IP68 12V 140A汽车游艇房车智能双电池隔离控制器 VSR数显电压表款
条码：6922509859047
HSCode：39259000
批量修改原始型号 		采购：Felix  编辑：Ellie  产品经理：caifeng

1. Strong waterproof, low loss, good heat dissipation, high efficiency
2. The dual power supply isolator uses a power management chip, which is a relatively new type of intelligent automatic management of electronic circuits

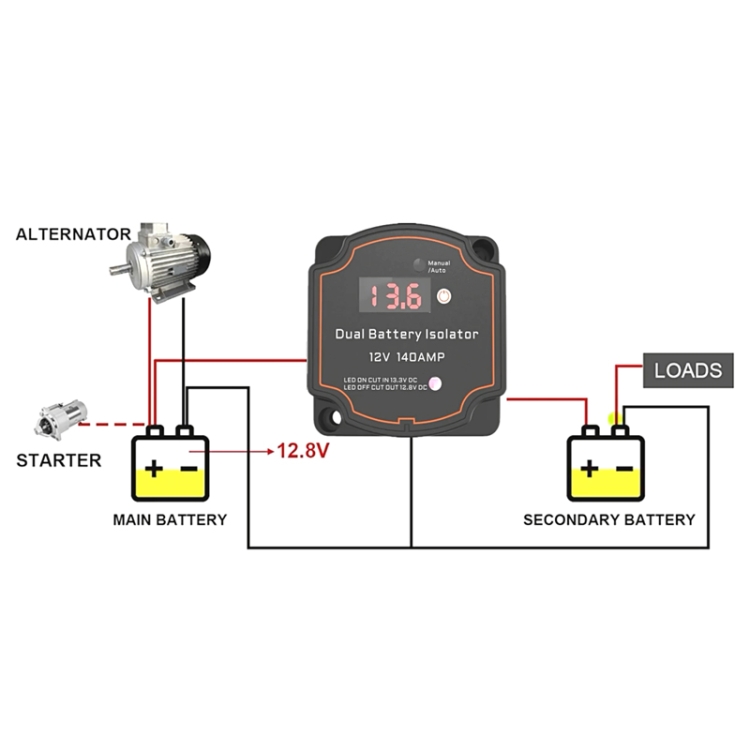

3. When the voltage of the main battery is greater than 13.3V, the main battery charges the auxiliary battery; when the voltage of the main battery is lower than 12.7V, the main battery is disconnected from the auxiliary battery
4. This product is suitable for ATV, UTV, boat, RV, watercraft, truck, caravan
5. Parameters:
- Material: ABS+Metal
- Continuous current: 80-100A
- Instantaneous current: 125A
- Current consumption - charging: 240mA
- Current Consumption - Standby: 8mA
- Escape delay: 5-10 seconds
- Recommended Fuse: 80Amp
- Power stud: M6 brass screw nut
- Surge Protection: Built-in
- Waterproof grade: IP68
- Dimensions: 68x52x68mm


1. 防水性强、损耗低、散热性好、功效高
2. 双电源隔离器采用了电源管理芯片，是较新颖的电子电路智能型自动管理
3. 主电瓶电压大于13.3V时，主电瓶给副电瓶充电；当主电瓶的电压低于12.7V时，主电瓶与副电瓶断开
4. 本产品适用于ATV、UTV、船、房车、船舶、卡车、大篷车
5. 参数：
- 材质：ABS+金属
- 持续电流：80-100A
- 瞬间电流：125A
- 消耗电流-充电：240mA
- 电流消耗-待机：8mA
- 脱离延迟：5-10秒
- 推荐保险丝：80Amp
- 动力螺柱：M6铜螺杆螺母
- 浪涌保护：内置
- 防水等级：IP68
- 尺寸：68x52x68mm


代码：

Specification:
Package weight
One package Weight 0.22kgs / 0.49lb
One Package Size 7.0cm * 7.0cm * 6.0cm / 2.76inch * 2.76inch * 2.36inch
Qty per Carton 120
Carton Weight 27.3kgs / 60.19lb
Carton Size 42cm * 32cm * 32cm / 16.54inch * 12.6inch * 12.6inch
