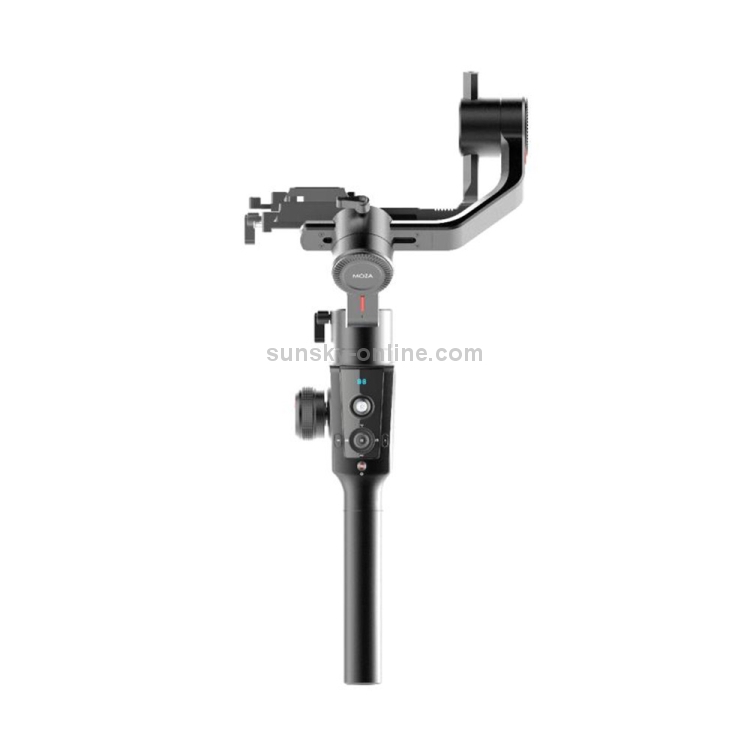

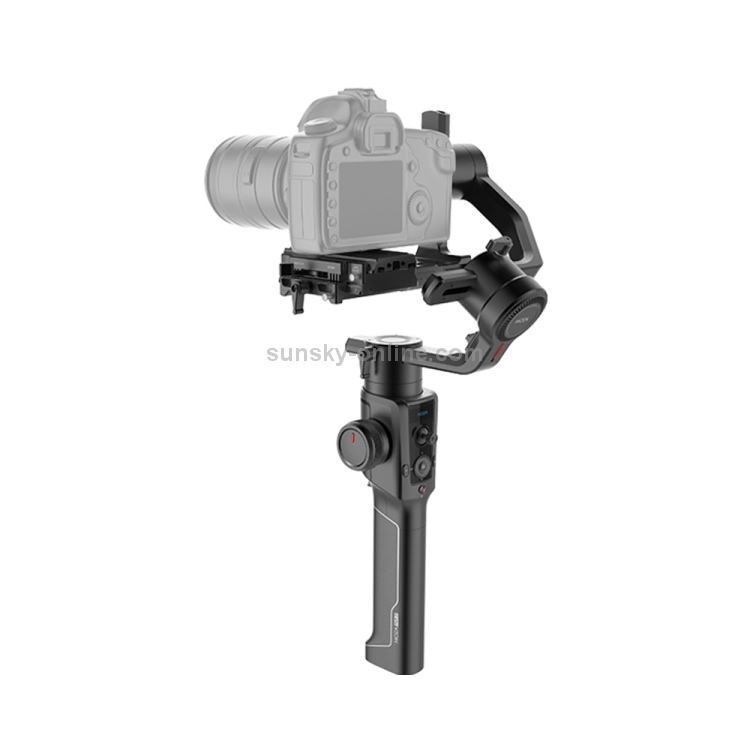

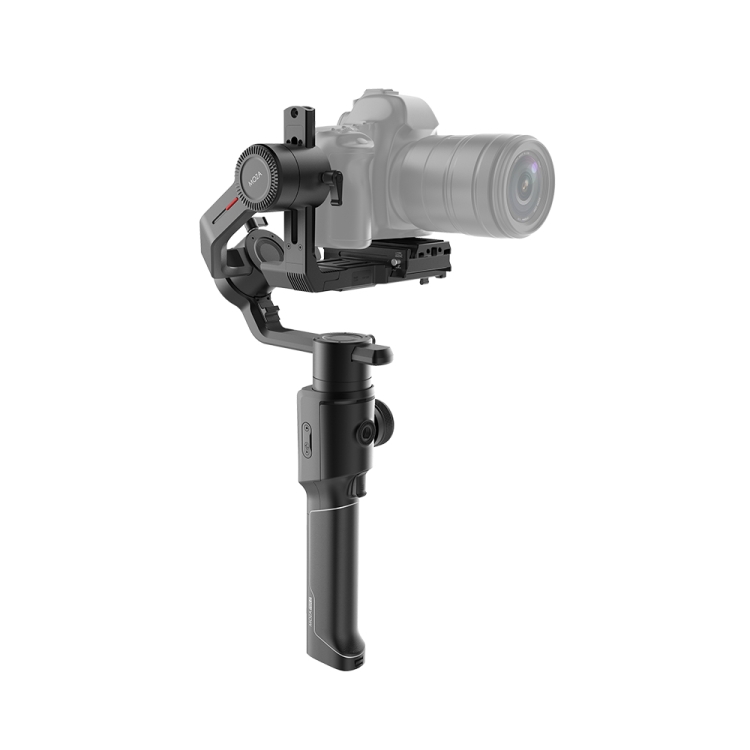

MOZA Air 2 + iFocus-M + Fashion Backpack 3 Axis Handheld Gimbal Stabilizer for DSLR Camera, Load: 4.2kg(Black)
魔爪 Air 2 软包版 稳定器3轴手持手机云台 (颜色：黑色)
条码：6922446636824
HSCode：90069199
批量修改原始型号 		采购：Colin  编辑：Shadow  产品经理：zengli

Features
1. Payload of 4.2kg(9lbs) with an only 1.6kg gimbal body
2. Long battery life up to 16 hours
3. iFocus system: Wireless follow focus system
4. Spark power supply system: Gimbal can power the camera and other accessories
5. Smart timelapse: Track, motion time-lapse, zoom timelapse and more
6. Memory quick release system: no trouble of frequent balancing anymore

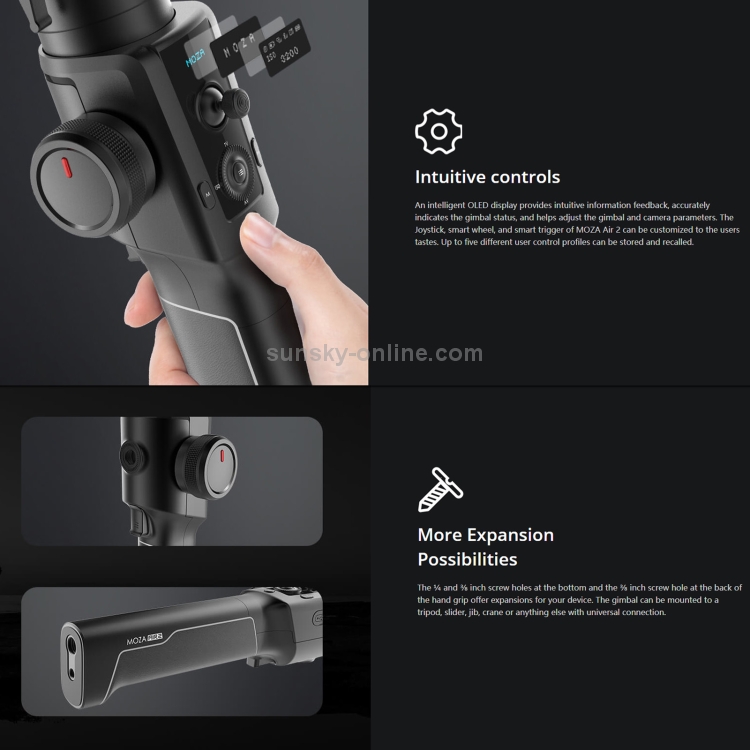

7. Smart wheel and OLED display: More intuitive operation experience
8. Novel design: Angled arm for an unobstructed view of the camera screen

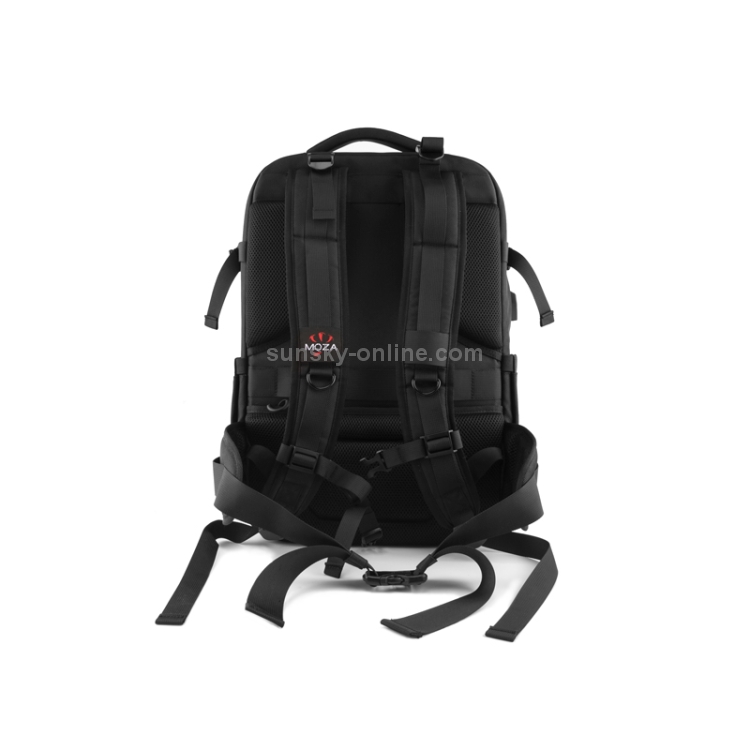

9. Considerate ecosystem: Professional backpack, thumb controller and dual handle

Specification
1. Gimbal Weight: 1.6kg
2. Payload: 300g-4.2kg
3. Gimbal Dimensions: 230x240x470mm
4. Camera Tray Dimension: Tilt to release center: 110mm; Roll to release center: 100mm
5. Mechanical Endpoint Range:
- Pan axis: 360 degree continuous rotation
- Roll axis: 360 degree continuous rotation
- Tilt axis: 180 to -95 degree
6. Controlled Endpoint Range:
- Pan axis: 360 degree continuous rotation
- Roll axis: +/-30 degree
- Tilt axis: 180 to -95 degree
7. Deviation in Motion State: +/-0.01 to 0.03 degree
8. Operation Temperature: 0-50 degree C
9. Operation Voltage: 13.6-14.8V
10. Static Current: 150mA
11. Battery Type: High-rate 18650 Li-ion 2500mAh
12. Battery Working Temperature: Discharge: 0-50 degree C, Charge: 0-45 degree C
13. Charging Time: 5 hours
14. Charger Type: 4-slot USB charger
15. Battery Life: 16 hours
16. Connections:
- Bluetooth V4.0 BLE: Support
- 2.4G: Support
- USB-C: Support(no charge)
- Multi CAN: Support
- PPM: Unsupported
17. Power Ports:
- USB: Unsupported
- DC OUT: 2.0mm 7.8V, 5.5mm 16.8V, Multi CAN 7.8V
- DC IN: 5.5mm 16V
18. Compatibility of Quick Release Plate:
- Manfrotto 5: Support
- ARCA: Unsupported


特点
1. 仅1.6kg万向架机身的有效载荷为4.2kg（9lbs）
2. 电池寿命长达16小时
3. iFocus系统：无线跟焦系统
4. Spark电源系统：云台可以为相机及其他配件供电
5. 智能延时：跟踪，运动延时，缩放延时等
6. 内存快速释放系统：不再需要频繁进行平衡
7. 智能滚轮和OLED显示屏：更直观的操作体验
8. 新颖的设计：倾斜的手臂，可一览无余的摄像机屏幕
9. 贴心的生态系统：专业的背包，拇指控制器和双手柄

1. 云台重量：1.6kg
2. 有效载荷：300g-4.2kg
3. 云台尺寸：230x240x470mm
4. 相机托盘尺寸：倾斜至释放中心：110mm；卷到释放中心：100mm
5. 机械端点范围：
- 摇摄轴：360度连续旋转
- 横滚轴：360度连续旋转
- 倾斜轴：180至-95度
6. 受控端点范围：
- 摇摄轴：360度连续旋转
- 横滚轴：+/- 30度
- 倾斜轴：180至-95度
7. 运动状态偏差：+/- 0.01至0.03度
8. 工作温度：0-50摄氏度
9. 工作电压：13.6-14.8V
10. 静态电流：150mA
11. 电池类型：高倍率18650锂离子电池2500mAh
12. 电池工作温度：放电：0-50摄氏度，充电：0-45摄氏度
13. 充电时间：5小时
14. 充电器类型：4插槽USB充电器
15. 电池寿命：16小时
16. 连接：
- 蓝牙V4.0 BLE：支持
- 2.4G：支持
- USB-C：支持（不充电）
- 多CAN：支持
- PPM：不支持
17. 电源端口：
- USB：不支持
- 直流输出：2.0mm 7.8V，5.5mm 16.8V，Multi CAN 7.8V
- 直流输入：5.5mm 16V
18. 快装板的兼容性：
- 曼富图5：支持
- ARCA：不支持


代码：

Specification:
General
Model Air 2
Battery High-rate 18650 Li-ion
Capacity 2500mAh
Voltage 13.6-14.8V
Charging Time 5 hours
Using Time 16 hours
Operating Temperature 0-50 degree C
Load Capacity 300g-4.2kg
Size 230x240x470mm
Weight 1.6kg
Package weight
One package Weight 2.23kgs / 4.92lb
One Package Size 42.0cm * 32.0cm * 12.0cm / 16.54inch * 12.6inch * 4.72inch
Qty per Carton 4
Carton Weight 9.8kgs / 21.61lb
Carton Size 62cm * 65cm * 42cm / 24.41inch * 25.59inch * 16.54inch
