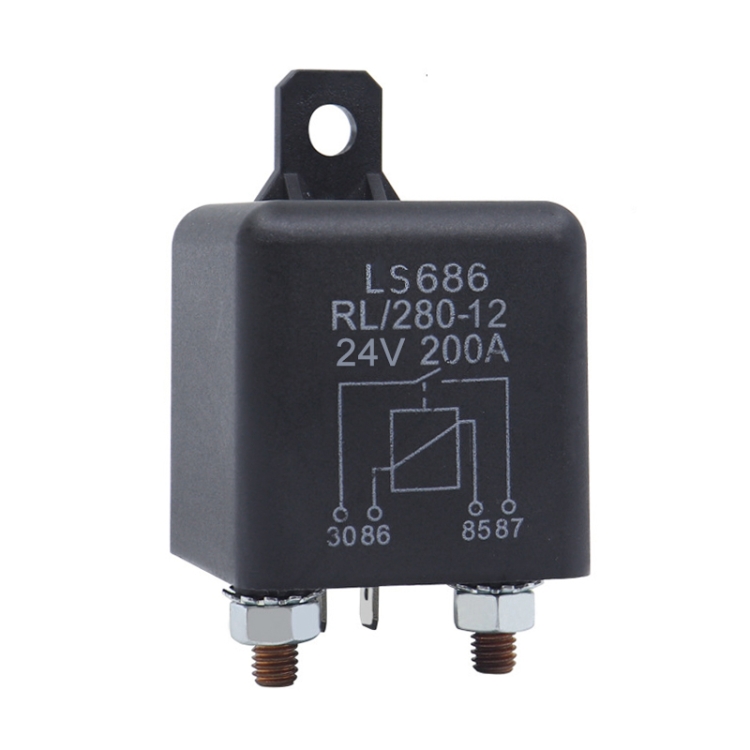

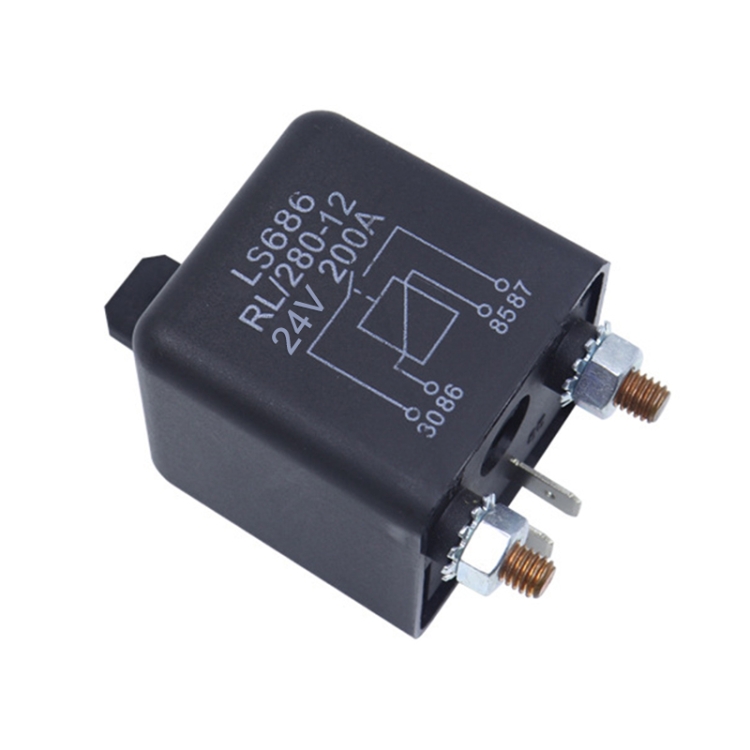

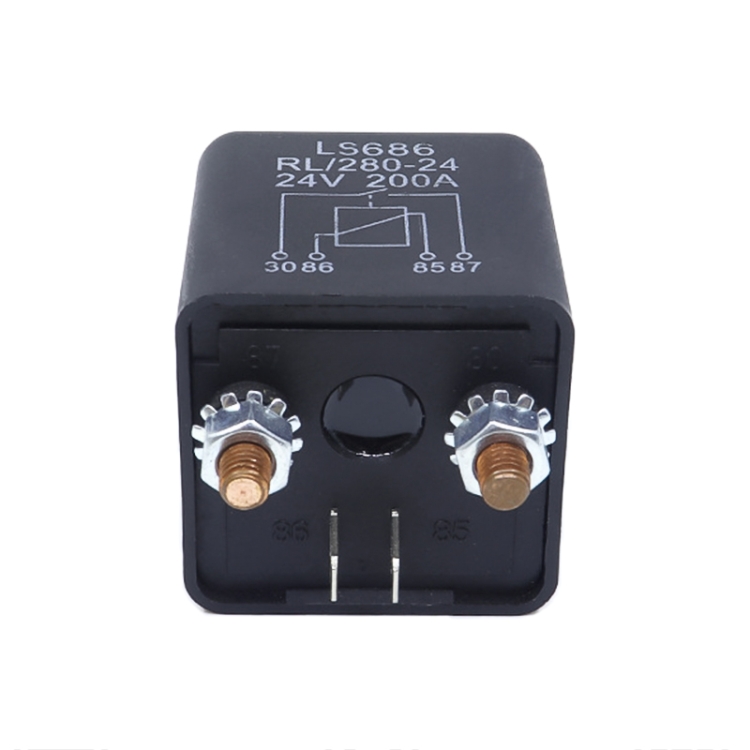

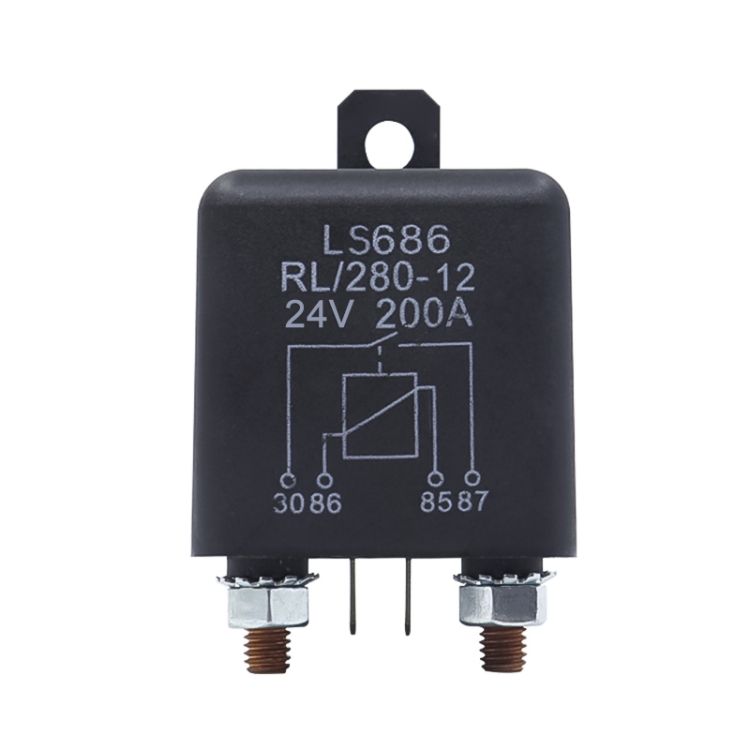

24V 1.8W Continuous Type 200A RV Modified Start Relay
24V 1.8W 连续型 200A房车改装启动继电器
条码：6922501586425
HSCode：39259000
批量修改原始型号 		采购：Felix  编辑：Ellie  产品经理：caifeng

1. Flame-retardant shell, with good smoothness.
2. Silver point tin indium oxide material, high stability, heat resistance, arc erosion resistance and melting resistance, and long service life.
3. Two six-square-wire copper wires, the product has fixed installation holes, which is easier to install and fix.
4. Coil voltage: 12V/24V
5. Coil power: 1.8W/4.8W
6. Contact form: normally open
7. Contact load: 200A

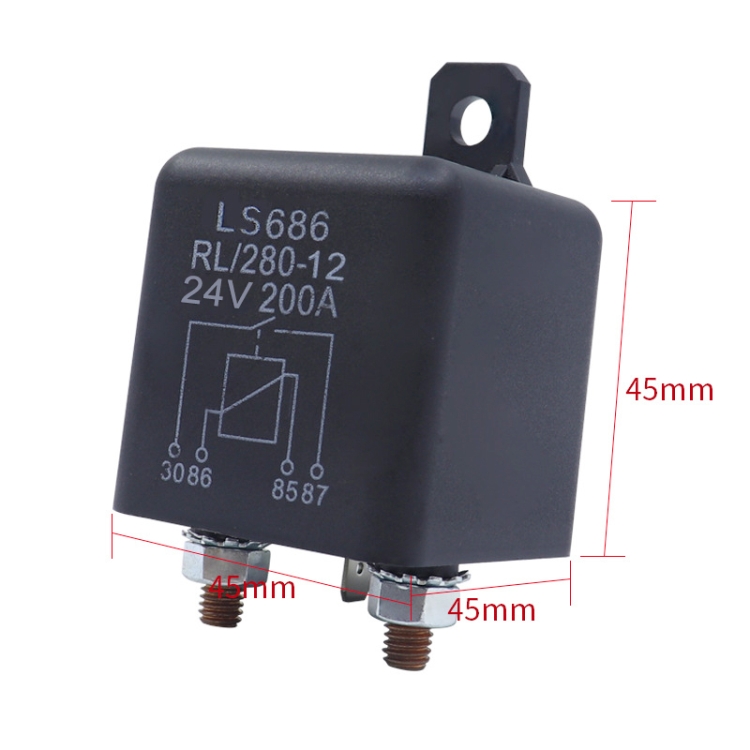

8. Dimensions: 45 x 45 x 45mm
9. Weight: 108.6g
1. 阻燃外壳，有较好的平滑性。
2. 银点氧化锡铟材质，稳定性高，耐热、耐电弧侵蚀及抗熔性，使用寿命长。
3. 两条六平方线铜线，产品带有固定安装孔，更容易安装固定。
4. 线圈电压：12V/24V
5. 线圈功率：1.8W/4.8W
6. 触点形式：常开
7. 触点负载：200A
8. 尺寸：45 x 45 x 45mm
9. 重量：108.6g
代码：

Specification:
Package weight
One package Weight 0.08kgs / 0.18lb
One Package Size 6.0cm * 5.0cm * 3.0cm / 2.36inch * 1.97inch * 1.18inch
Qty per Carton 350
Carton Weight 29.5kgs / 65.04lb
Carton Size 38cm * 32cm * 28cm / 14.96inch * 12.6inch * 11.02inch
