SKU:

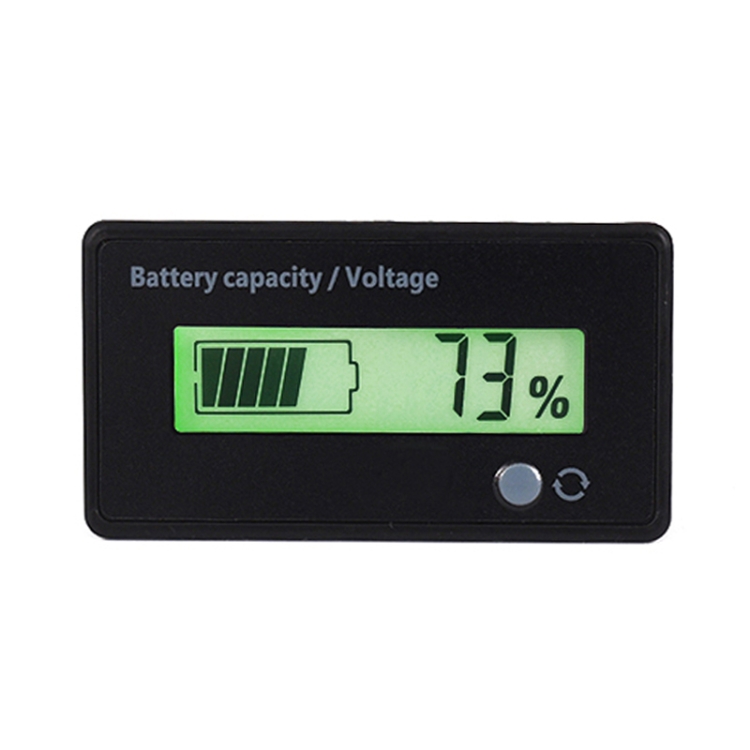

H6133 12V-84V Lead-acid Battery Voltage Tester Percentage Voltmeter Gauge Lithium Battery Status Monitor(Green Light)
H6133 12V-84V 电量显示器电量电压表液晶电量表 (颜色：绿色背光)
条码：6922567613025
HSCode：90303390
批量修改原始型号 		采购：Felix  编辑：Shadow  产品经理：Maura

Features
1. The product has reverse connection protection, it will not burn out if it is reversed
2. Lead-acid battery Lithium battery is universal and can be adjusted through the buttons on the back

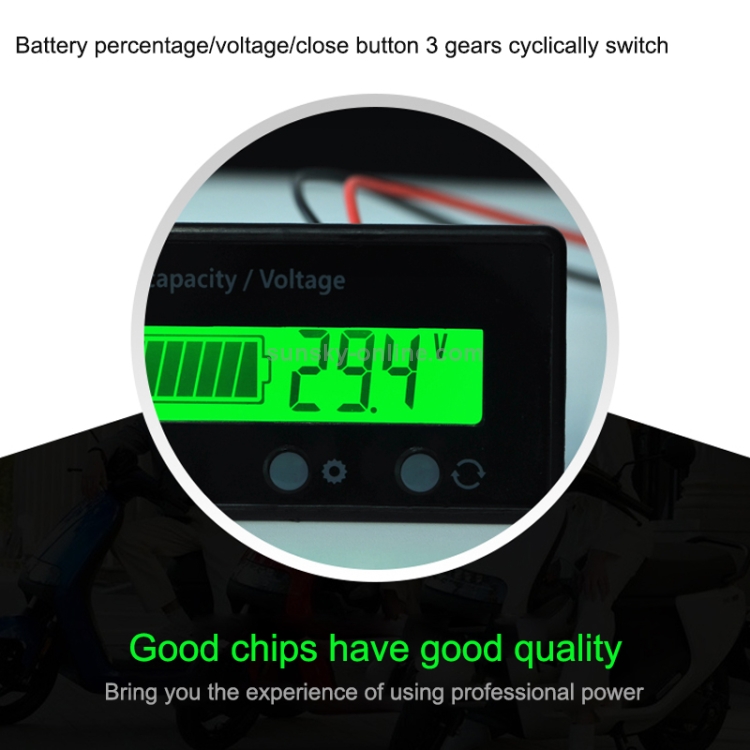

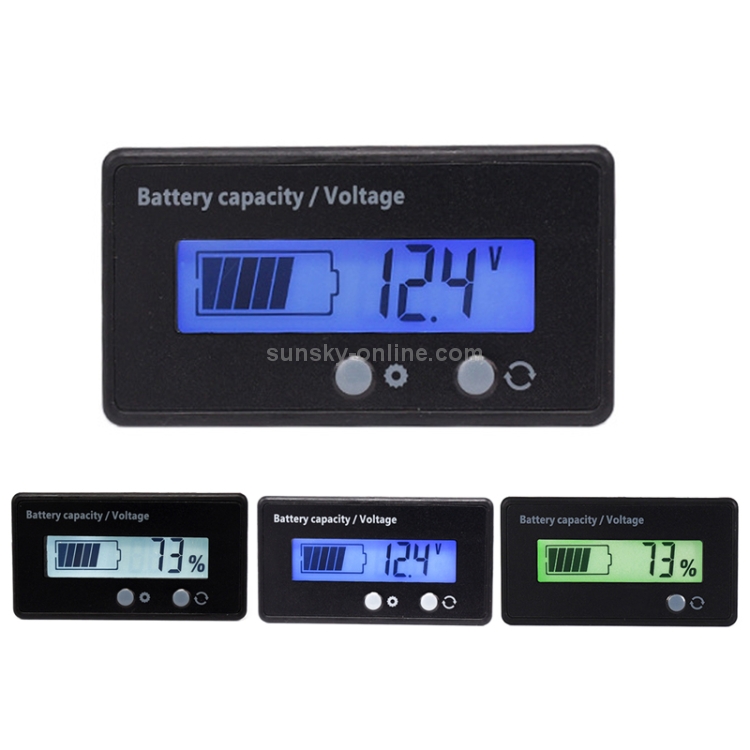

3. It can display battery symbol + percentage or battery symbol + voltmeter, the two display modes can be switched at will
4. The product has only two wires, simple wiring, equipped with a wiring socket, and the wire length is 300mm
5. All battery specifications and function selections are set through the buttons on the back, no electric soldering iron is required

Specification
1. Work voltage: 10-100V
2. Work current: Less than 5mA
3. Sleep current: 12uA (12V test)
4. Display: LCD with backlit
5. Suitable for: 3-27 x 3.7V Lithium Batteries; Lead Acid Batteries 12V, 24V, 36V, 48V, 60V, 72V, 84V
6. Dimensions: 61.3 x 33.3 x 13.5mm
7. Mounting hole Size: 58.5 x 28.5mm
8. Wire Length: 30cm


特点
1. 产品有反接保护，接反不会烧坏
2. 铅酸电池 锂电池通用，可通过背面按键调整
3. 可显示电池符号+百分比或电池符号+电压表，两个显示模式随意切换
4. 产品只有两根线，接线简单，配有接线插座，线长300mm
5. 所有电池规格和功能的选择均通过背面按键设定，无需电烙铁

参数
1. 工作电压：10-100V
2. 工作电流：小于5mA
3. 睡眠电流：12uA（12V测试）
4. 显示：LCD带背光
5. 适用于：3-27 x 3.7V锂电池； 铅酸电池12V，24V，36V，48V，60V，72V，84V
6. 尺寸：61.3 x 33.3 x 13.5mm
7. 安装孔尺寸：58.5 x 28.5mm
8. 线长：30cm


代码：

Specification:
Package weight
One package Weight 0.04kgs / 0.09lb
One Package Size 12.0cm * 6.0cm * 2.0cm / 4.72inch * 2.36inch * 0.79inch
Qty per Carton 400
Carton Weight 13kgs / 28.66lb
Carton Size 50cm * 42cm * 32cm / 19.69inch * 16.54inch * 12.6inch
