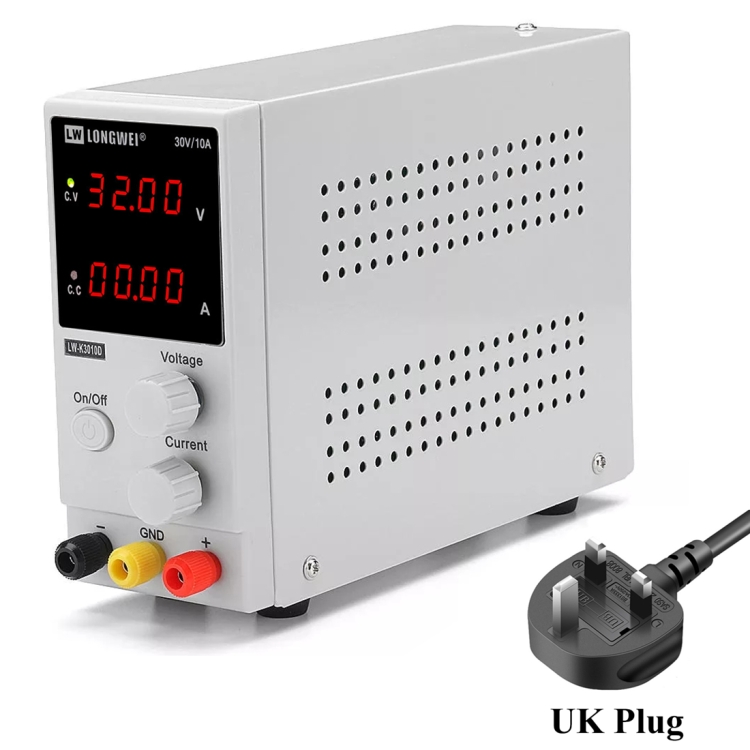

K3010D 30V 10A DC Switching Regulated Powers Supply Phone Repair Voltage Regulator(UK Plug)
龙威 K3010D 30V10A 可调直流稳压电源手机维修电源 (颜色：英规)
条码：6922976955334
HSCode：84519000
批量修改原始型号 		采购：Kitty  编辑：Shadow  产品经理：zengli

Features

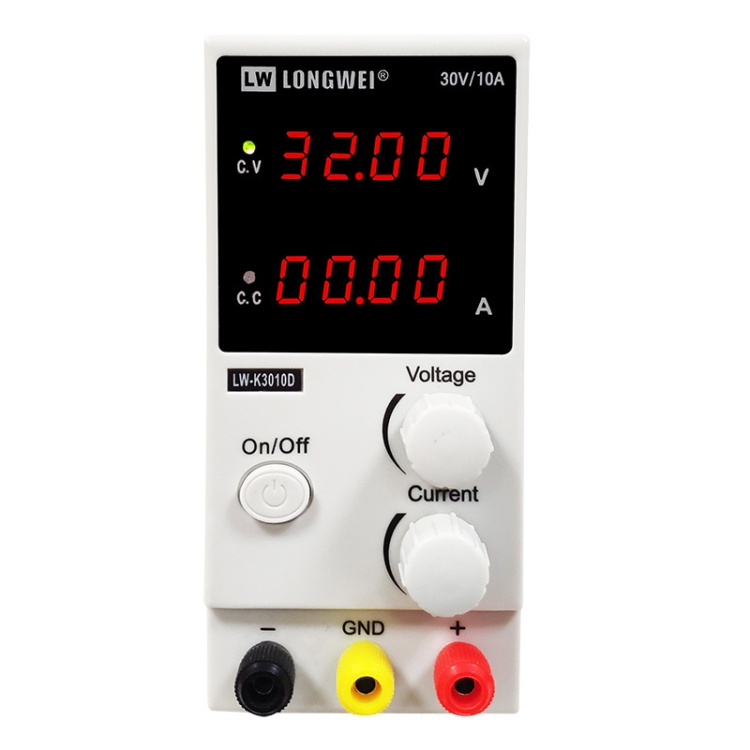

1. High-precision LED digital display, intuitive and clear.

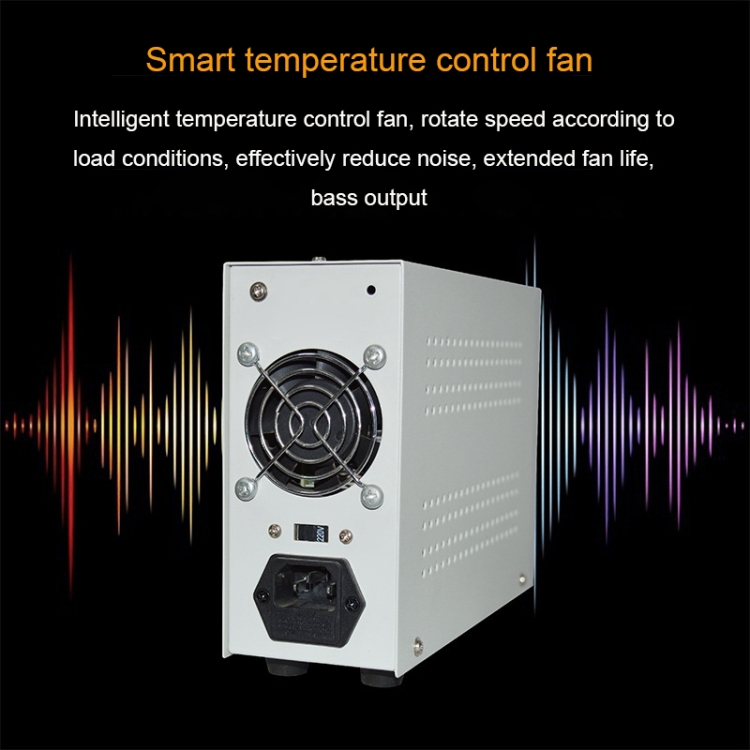

2. 8cm smart fan, excellent heat dissipation, effectively extend fan life and reduce noise.
3. The use of advanced technology to effectively reduce the weight of the power and convenience of mobile power.
4. A variety of protection, current limiting protection (OCP), over temperature protection (OTP), Over Power Protection (OPP).

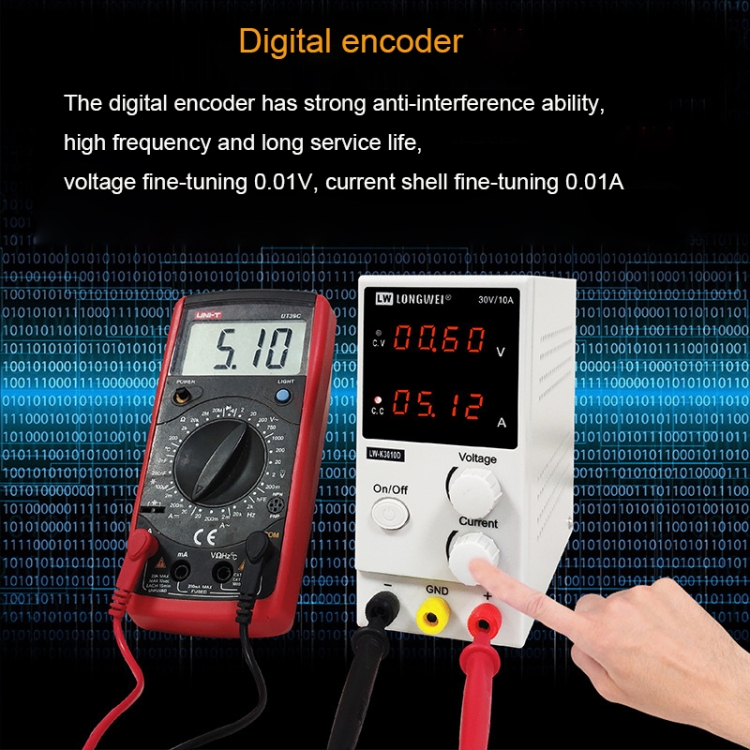

5. Plastic panels, more beautiful, voltage, current, coarse and fine adjustment knob to set the settings to be more precise.
Specifications
1. Input voltage:
- 220V +/- 10% 50Hz +/- 5Hz
- 110V +/- 10% 60Hz +/- 5Hz
- Switch or a single voltage input
2. Output voltage: DC 0-30 rated V
3. Output Current: DC 0-10 rated A
4. Display Accuracy:
- +/- 0.1% +/- 1 word (four digital LED display, voltage resolution 0.01V, current resolution 0.01A)
5. Ripple and Noise:
- CV Less than or equal to10mV
- CC Less than or equal to 20mA (RMS)
6. Efficiency: Greater than or equal to 80% (under full load test)
7. Working environment: -10 - + 40 degree C Relative humidity 20% -80% (non-condensing)
8. Storage Environment: -20 - + 80 degree C Relative humidity 20% -70% (non-condensing)

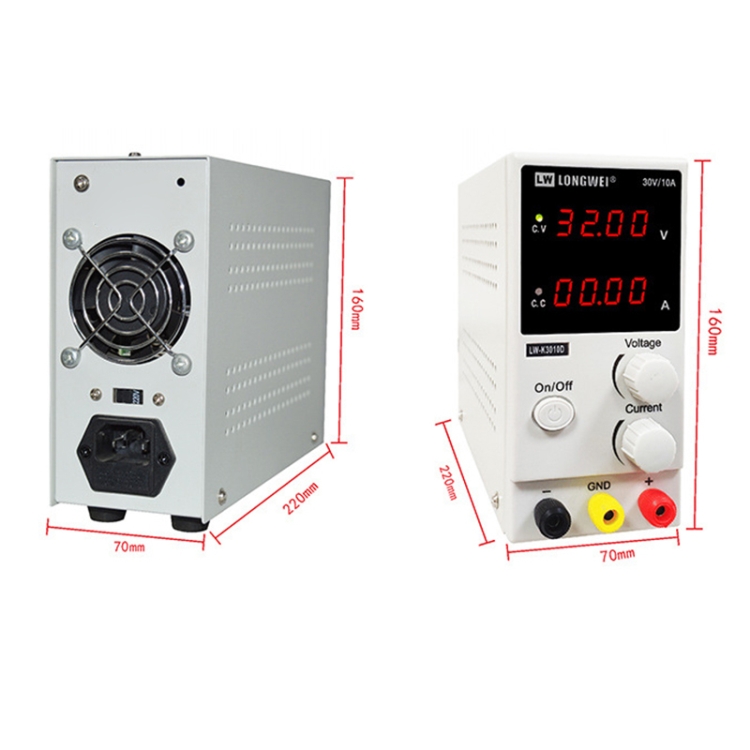

9. Size: 220 x 160 x 70mm

特点
1. 高精度LED数字显示，直观清晰。
2. 8cm智能风扇，散热很好，有效延长风扇寿命，降低噪音。
3. 采用先进技术，有效减轻电源重量，方便移动电源。
4. 多种保护，限流保护（OCP），过温保护（OTP），过功率保护（OPP）。
5. 塑料面板，更美观，电压、电流、粗调和微调旋钮设置设置更精准。
参数
1.输入电压：
- 220V +/- 10% 50Hz ± 5Hz
- 110V +/- 10% 60Hz ± 5Hz
- 开关或单电压输入
2. 输出电压：DC 0-30额定V
3. 输出电流：DC 0-10额定A
4. 显示精度：
- +/- 0.1% +/- 1字（四位数码管显示，电压分辨率0.01V，电流分辨率0.01A）
5. 纹波和噪声：
- CV 小于等于10mV
- CC 小于或等于 20mA (RMS)
6. 效率：大于等于80%（满载测试下）
7. 工作环境：-10 - + 40°C 相对湿度20% -80%（非冷凝）
8. 储存环境：-20 - + 80°C 相对湿度 20% -70%（非冷凝）
9. 尺寸：220 x 160 x 70mm

代码：

Specification:
Package weight
One package Weight 1.9kgs / 4.19lb
One Package Size 30.0cm * 20.0cm * 11.0cm / 11.81inch * 7.87inch * 4.33inch
Qty per Carton 10
Carton Weight 19.5kgs / 42.99lb
Carton Size 57cm * 42cm * 32cm / 22.44inch * 16.54inch * 12.6inch
