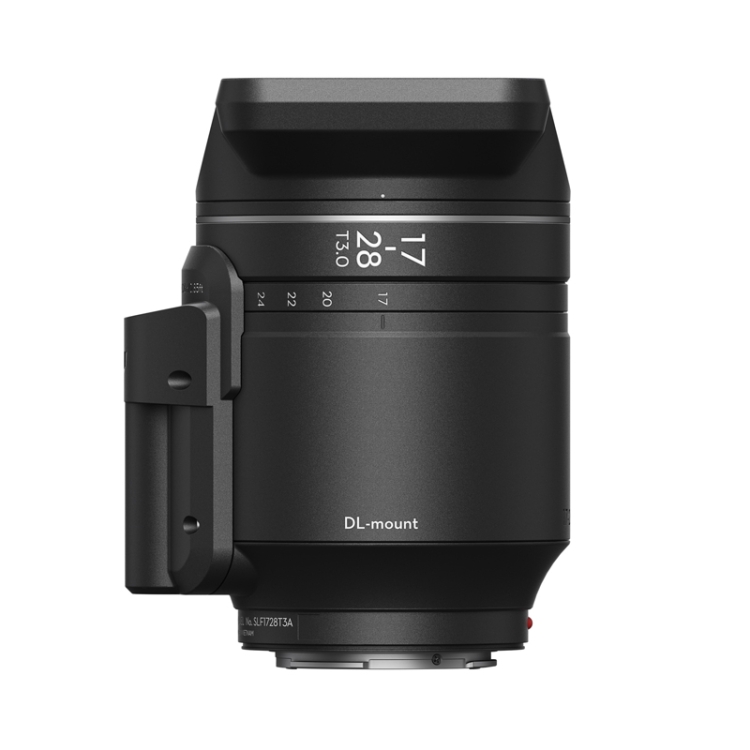

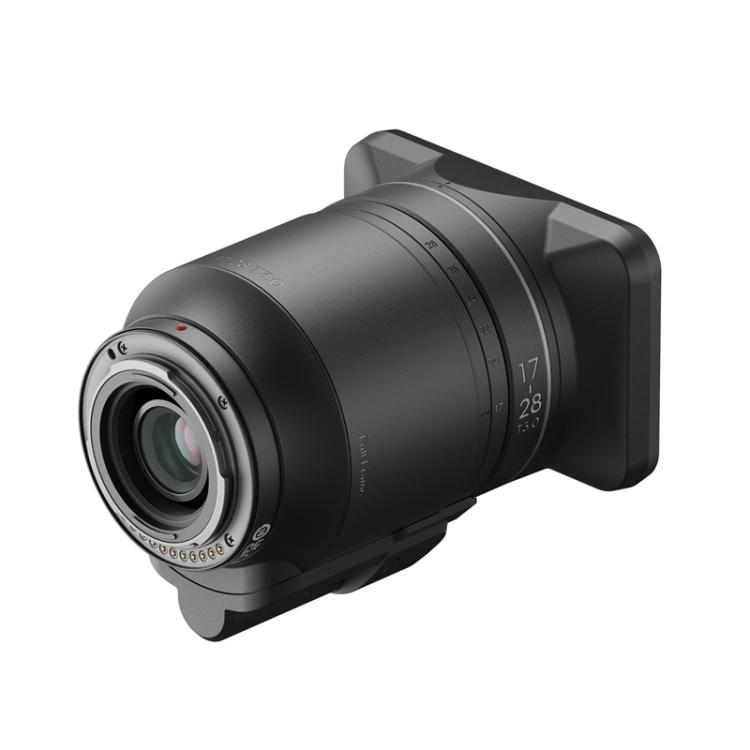

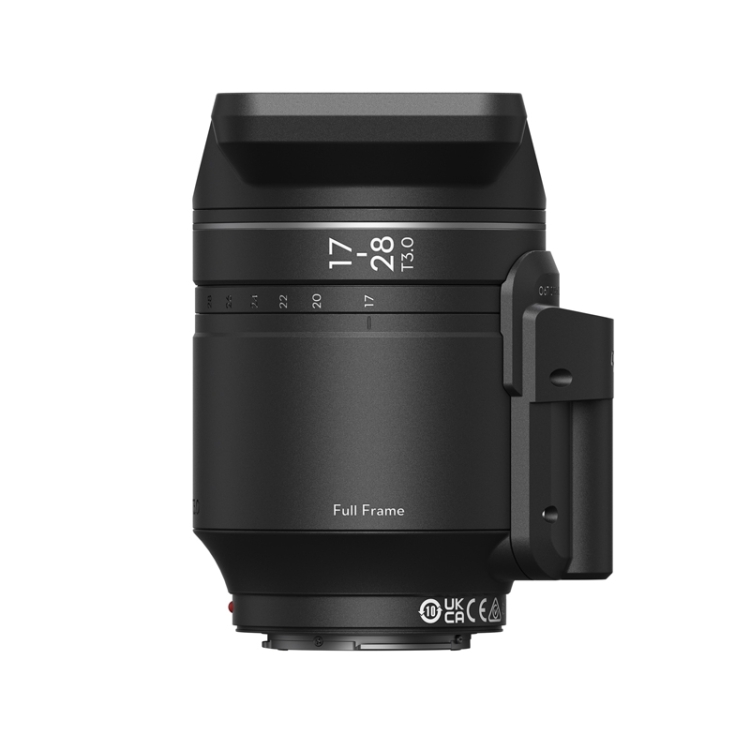

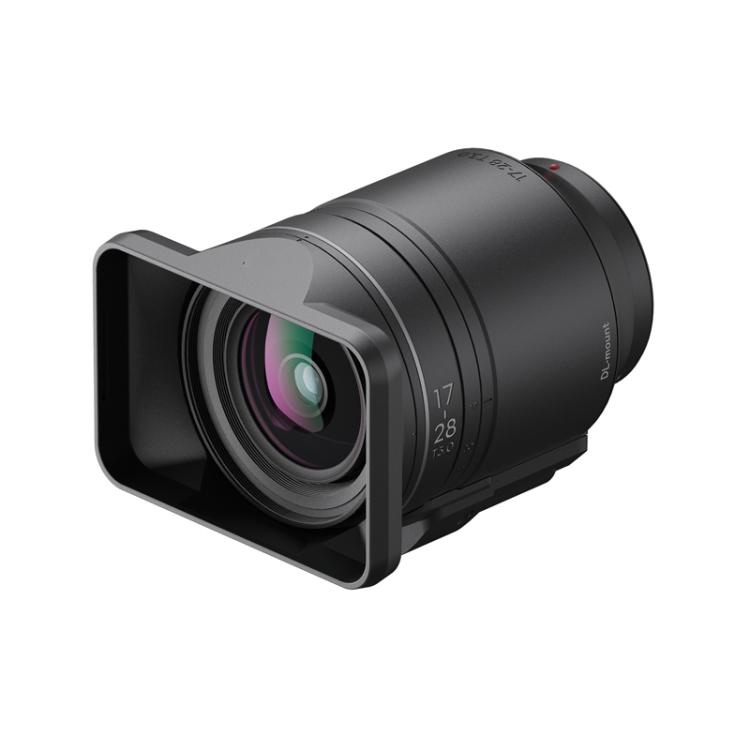

Original DJI DL PZ 17-28mm T3.0 ASPH Lens For Ronin 4D
原装大疆 DL PZ 17-28mm T3.0 ASPH镜头适用于如影Ronin 4D
条码：6922054059765
HSCode：39269010
批量修改原始型号 		采购：Kitty  编辑：Shadow  产品经理：zengli


1. DL PZ 17-28mm T3.0 ASPH is DJI's first motorized zoom lens, covering a 17 mm ultra-wide-angle focal length to a 28 mm wide-angle focal length. After the lens is installed, it can directly realize precise focus and zoom operations without calibration, satisfying professional creations wide-angle shooting needs.
2. High resolution from the center of the screen to the corners: The ultra-high resolution from the center to the edge can fully meet the image quality requirements of 8K sensors. It has very sharp picture quality performance and excellent optical quality.
3. The minimum focusing distance of 0.19 meters meets most of the needs of close-up shooting in ultra-wide-angle situations.
4. Thanks to the aluminum-magnesium alloy body design, it achieves an ultra-light weight of 520 grams. While ensuring the rigidity and strength of the lens, it effectively reduces the weight of the lens.
5. With a built-in servo zoom motor, no additional motor is required, and the zoom effect can be easily realized. The servo motor package is not detachable, light and compact.
6. No leveling during the zooming process: When the lens is zooming, the displacement of the inner lens barrel of the lens does not exceed 5 mm. Using it with Ronin 4D can completely avoid the need for leveling after zooming.

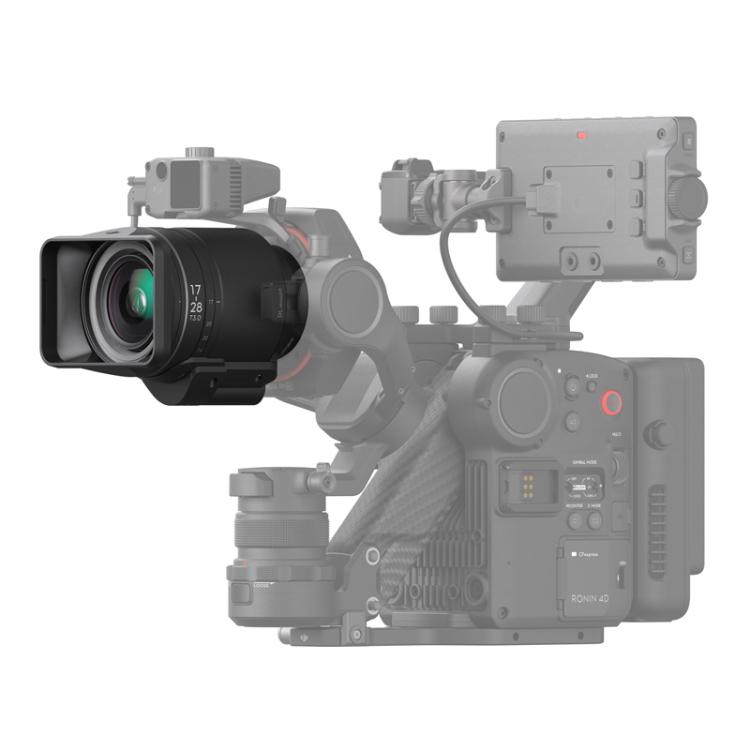

7. Compatible products: suitable for DJI Ronin 4D-6K / DJI Ronin 4D-8K

Technical Parameters:
1. Image size: full frame (36 mm×24 mm)
2. Focal length: 17 mm to 28 mm
3. Minimum focusing distance (MOD):
- Focal length 17 mm: 0.19 meters
- Focal length 28 mm: 0.26 meters
4. Aperture: T3.0 to T22
5. Filter diameter: 67mm in diameter
6. Mount type: DL mount
7. Weight (including lens hood): Approx. 520g
8. Working temperature: -10 to 55 degrees Celsius

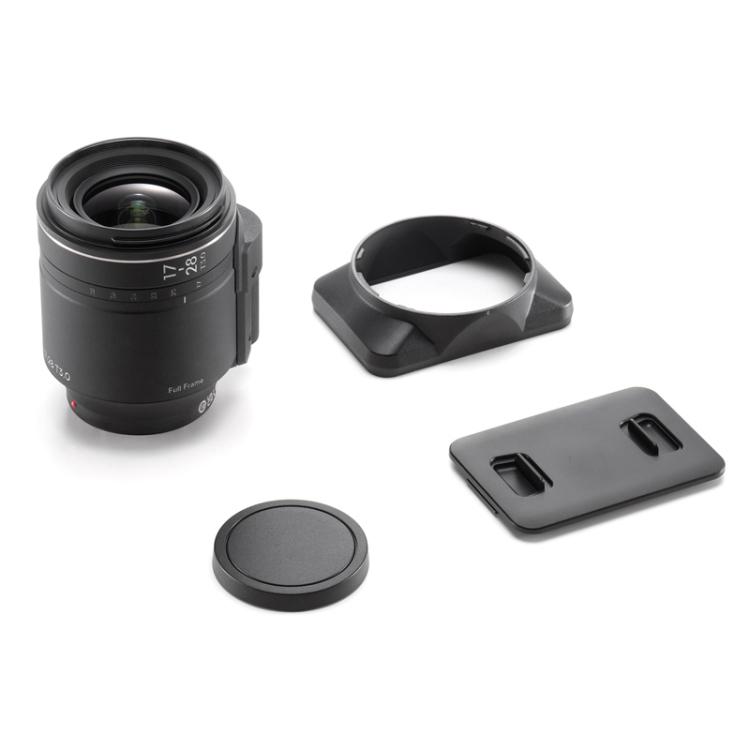

packing list:
Lens front protective cap × 1
Hood × 1
Lens ×1
Lens rear protective cover × 1

1. DL PZ 17-28mm T3.0 ASPH 为 DJI 首款电动变焦镜头，覆盖 17 mm 超广角焦段至 28 mm 广角焦段，镜头安装后无需标定即可直接实现精准的对焦和变焦操作，满足专业创作的广角拍摄需求。
2. 从画面中心到边角的高解析度：中心到边缘拥有超高解析度，可完全胜任 8K 传感器的画质需求。具备非常锐利的画质表现以及出色的光学素质。
3. 0.19 米最近对焦距离，在超广角情况下满足大部分近景拍摄需求。
4. 得益于铝镁合金机身设计，实现了 520 克的超轻重量。在保证镜头刚度和强度的同时，有效降低了镜头重量。
5. 内置伺服变焦电机，无需额外加装电机，可轻松实现变焦效果。伺服电机包不可拆卸，轻便小巧。
6. 变焦过程免调平：镜头变焦时，镜头内镜筒位移不超过 5 毫米，搭配 Ronin 4D 使用可完全避免变焦后需要调平的情况。
7. 适配产品：适用于DJI Ronin 4D-6K / DJI Ronin 4D-8K

技术参数：
1. 影像尺寸：全画幅（36 mm×24 mm）
2. 焦距：17 mm 至 28 mm
3. 最近对焦距离（MOD）：
-焦距 17 mm：0.19 米
-焦距 28 mm：0.26 米
4. 光圈：T3.0 至 T22
5. 滤镜口径：直径67mm
6. 卡口类型：DL 卡口
7. 重量（含遮光罩）：约 520 克
8. 工作温度：-10 至 55摄氏度

包装清单：
镜头前保护盖 ×1
遮光罩 ×1
镜头 ×1
镜头后保护盖 ×1
代码：

Specification:
General
Compatible with DJI:  Ronin 4D
Package weight
One package Weight 0.6kgs / 1.32lb
One Package Size 20.0cm * 17.0cm * 8.0cm / 7.87inch * 6.69inch * 3.15inch
Qty per Carton 50
Carton Weight 30kgs / 66.14lb
Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
