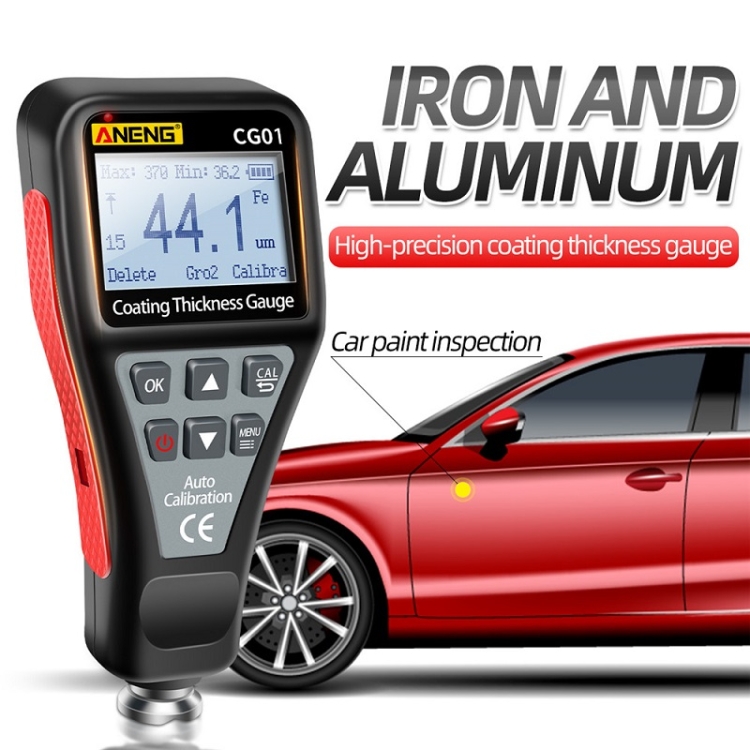

ANENG Iron-aluminum Dual-purpose Coating Thickness Measuring Instrument(CG01)
ANENG 铁铝双用涂层厚度测量仪（CG01）
条码：6922428036936
HSCode：90303390
批量修改原始型号 		采购：Dani  编辑：Shadow  产品经理：Maura


1. Number of calibration points: 4 calibration points for linear smoothing calculation
2. Data group storage: 6 groups x 100 groups
3. Display rotation angle: 0 degrees, 90 degrees, 180 degrees, 270 degrees/off
4. Unit conversion: um/mil
5. Upper and lower limit range: 0~1500um (0~59.0mil) freely set/close
6. Backlight brightness: 10 levels adjustable/close
7. Power battery: 2 AAA batteries (not included)
8. Iron base type: magnetic metal iron base (FE) / non-magnetic metal non-ferrous base (NFE) / automatic identification
9. Measurement method: single measurement/continuous measurement
10. Low battery reminder: below 2.4V
11. Automatic shutdown: automatic shutdown without any operation within 3 minutes
12. This coating thickness gauge integrates the functions of a magnetic thickness gauge and an eddy current thickness gauge, which can be used to measure the coating thickness on ferrous and non-ferrous metal substrates
13. The dual-function built-in probe is used to automatically identify iron-based or non-ferrous metal materials, and select the corresponding measurement method for measurement
14. High measurement accuracy and wide measurement range: 0~1500um (0~59.0mil)
15. Dot matrix LCD liquid crystal display, the data can be clearly seen even when the backlight is turned off during the day, power saving, the backlight can adjust the brightness

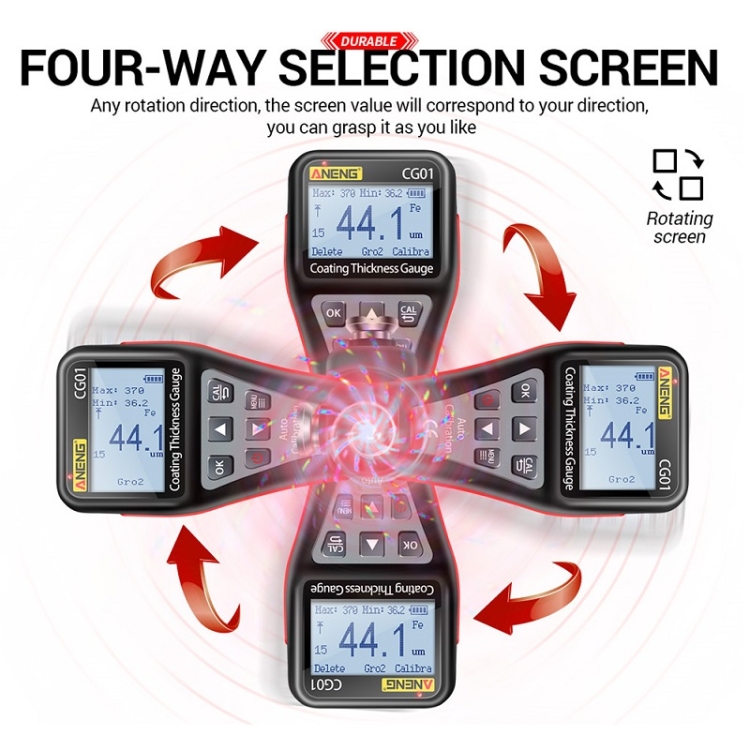

16. With gravity sensing function, it can automatically rotate the display content, keep the direction consistent with the gravity, easy to read the measurement data

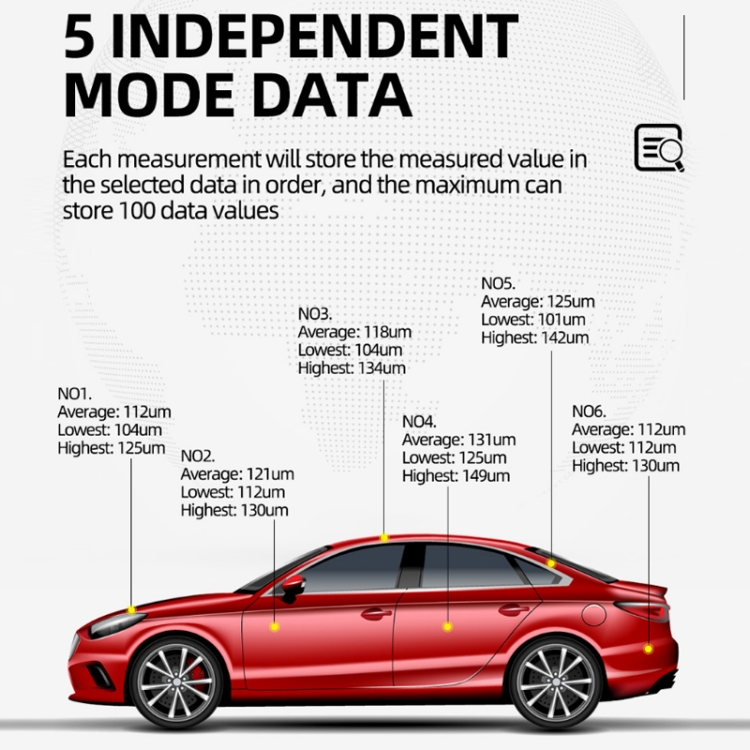

17. With 6 groups of data group storage function, it is convenient to compare the data and deviation of different parts.
18. With 4-point smoothing calibration function, making the measurement data more accurate

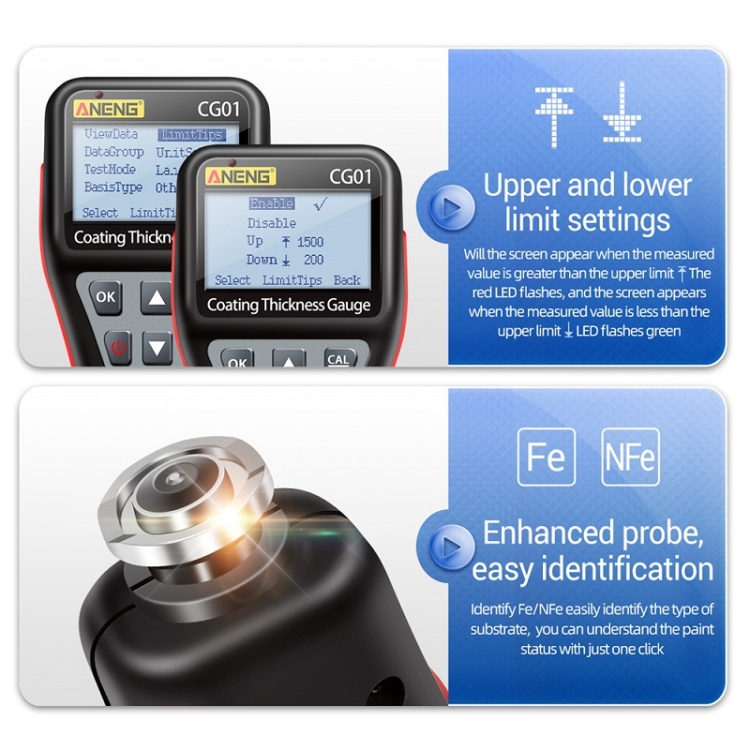

19. With upper and lower limit setting and prompting functions, red and green bi-color LED lights can flash, and the display screen indicates the over-limit status
20. Suitable for painting, metal processing, sales measurement, automotive paint testing, used cars, accident vehicle evaluation and other industries

1. 标定点数：4个标定点线性平滑计算
2. 数据组存储：6组x100组
3. 显示旋转角度：0度、90度、180度、270度/关闭
4. 单位换算：um/mil
5. 上下限范围：0~1500um（0~59.0mil）自由设定/关闭
6. 背光亮度：10级可调/关闭
7. 电源电池：2节AAA电池（不含）
8. 铁基类型：磁性金属铁基（FE）/非磁性金属有色基（NFE）/自动识别
9. 测量方式：单次测量/连续测量
10. 低电量提醒：低于2.4V
11. 自动关机：3分钟内无任何操作自动关机
12. 该涂层测厚仪集磁性测厚仪和涡流测厚仪的功能于一体，可用于测量黑色金属和有色金属基材上的涂层厚度
13. 双功能内置探头用于自动识别铁基或有色金属材料，并选择相应的测量方法进行测量
14. 测量精度高，测量范围宽：0~1500um（0~59.0mil）
15. 点阵LCD液晶显示，白天关闭背光也能清晰看到数据，省电，背光可以调节亮度
16. 具有重力感应功能，可自动旋转显示内容，保持方向与重力一致，便于读取测量数据
17. 具有6组数据分组存储功能，方便统计比较不同部位的数据和偏差
18. 具有4点平滑校准功能，使测量数据更加准确
19. 具有上下限设置及提示功能，红绿双色LED灯可闪烁，显示屏提示超限状态
20. 适用于涂装、金属加工、销售计量、汽车油漆检测、二手车、事故车辆评估等行业
代码：

Specification:
Package weight
One package Weight 0.2kgs / 0.44lb
One Package Size 14.0cm * 7.0cm * 6.0cm / 5.51inch * 2.76inch * 2.36inch
Qty per Carton 146
Carton Weight 30kgs / 66.14lb
Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
