SKU:

Rocketek MM483 For Mac Mini Docking Station With Hard Disk Enclosure
Rocketek MM483 适用于Mac Mini拓展坞+内置硬盘盒
条码：6922772521535
HSCode：84717090
批量修改原始型号 		采购：Kitty  编辑：Teri  产品经理：Maura


1. Suitable for MAC mini docking station, built-in 2.5-inch SATA hard disk interface.

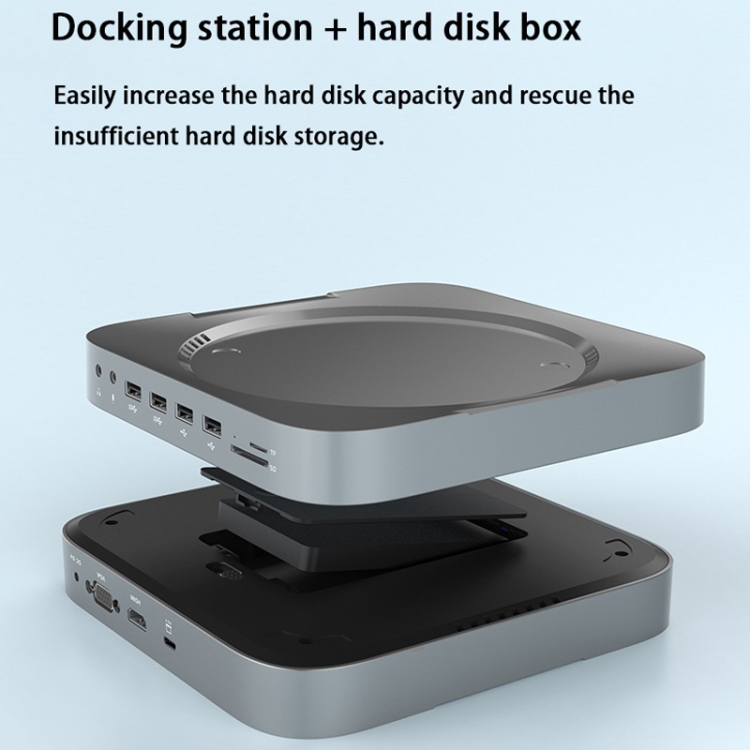

2. 2 in 1: docking station + hard disk box, easy to increase hard disk capacity and save hard disk storage space.

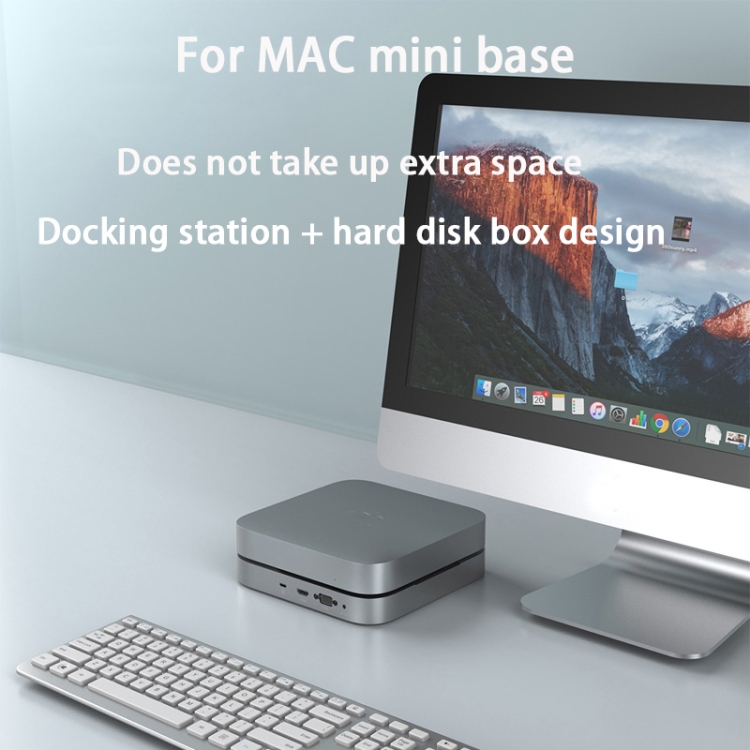

3. Save desktop space, base design, no need to take up extra space.

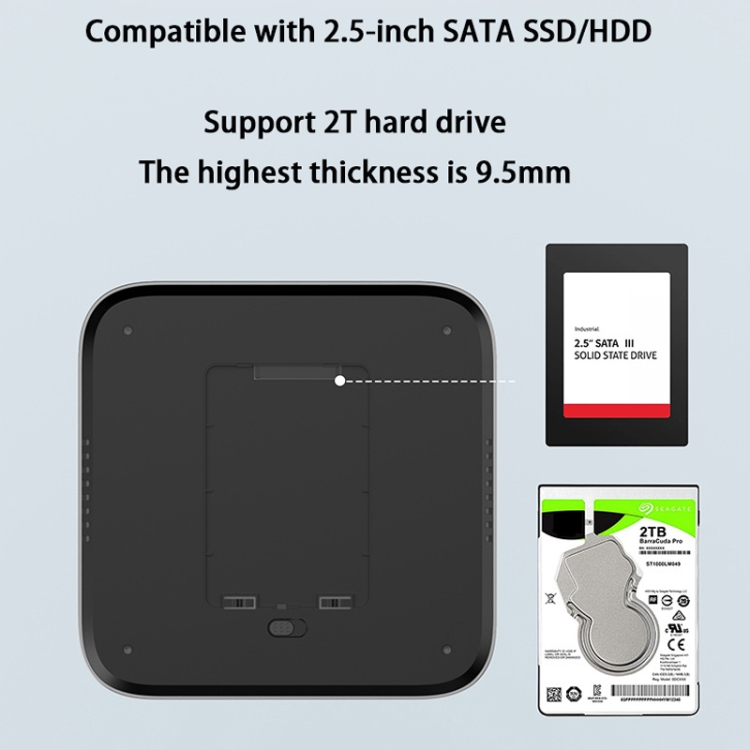

4. Built-in hard disk expansion: Compatible with 2.5-inch SATA solid-state/mechanical hard disks, supports 2T hard disks, and has a maximum thickness of 9.5mm.

parameter:

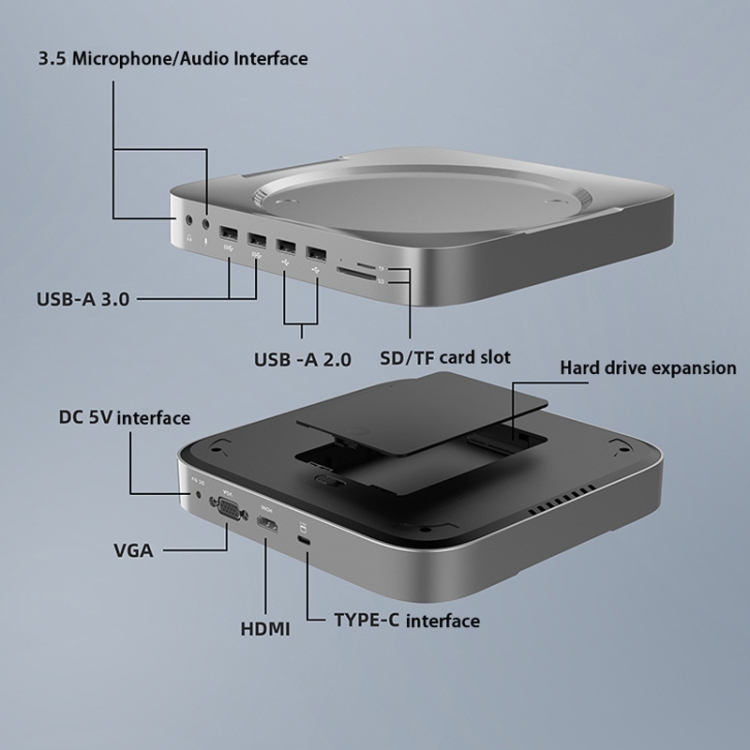

1. TYPE-C female socket: The upstream port of the product is used to connect to the host.
2. USB-A: Two USB3.0/2.0-A female sockets, supporting maximum bandwidth (5Gbps/480Mbps).
3. Power indicator: LED lights on when the product is powered on.
4. SD/TF card slot: USB2.0 card read and write speed, support inserting Secure Digital/TF card, up to 2TB card read and write.
5. HD-MI compatible female socket: maximum support 4K/30HZ video output.
6. VGA interface: maximum support 1080P video output

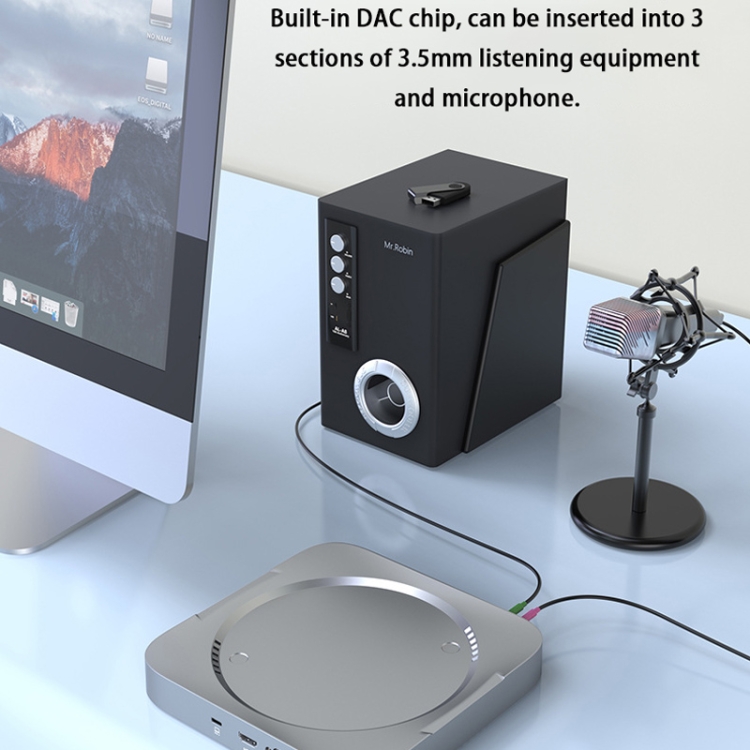

7. 3.5 microphone/audio interface: There is a DAC chip inside, which can be inserted into a 3-segment 3.5 speaker/microphone.
8. DC interface: support 5V/2A auxiliary power input, the internal switch will automatically cut off the DC power after the PC is turned off.
9. Hard disk slot: Supports inserting 2.5-inch HDD or SSD. Support 5mm/7mm/9.5mm thickness SATA interface hard disk. The maximum supported hard disk capacity is 2TB.
10. Product size 225 x 215 x 35mm

1. 适用于MAC mini扩展坞，内置2.5英寸SATA硬盘接口。
2. 2合1：扩展坞+硬盘盒，轻松增加硬盘容量，节省硬盘存储空间。
3.节省桌面空间，底座设计，无需占用额外空间。
4. 内置硬盘扩展：兼容2.5英寸SATA固态/机械硬盘，支持2T硬盘，Max厚度9.5mm。

参数：
1. TYPE-C母座：产品上行口用于连接主机端。
2. USB-A：两个USB3.0/2.0-A型母座，支持Max带宽（5Gbps/480Mbps）。
3. 电源指示灯：产品通电时LED灯亮。
4. SD/TF卡槽：USB2.0卡读写速度，支持插入Secure Digital/TF卡，Max支持2TB卡读写。
5. HD-MI兼容母座：MAX支持4K/30HZ视频输出。
6. VGA接口：MAX支持1080P视频输出
7. 3.5麦克风/音频接口：内部有DAC芯片，可插入3段3.5听音器/麦克风。
8. DC接口：支持5V/2A辅助电源输入，PC关机后内部开关会自动切断DC电源。
9. 硬盘插槽：支持插入 2.5 英寸 HDD 或 SSD。支持5mm/7mm/9.5mm厚度的SATA接口硬盘。Max支持硬盘容量2TB。
10. 产品尺寸225 x 215 x 35mm
代码：

Specification:
Package weight
One package Weight 0.68kgs / 1.5lb
One Package Size 28.0cm * 25.0cm * 8.0cm / 11.02inch * 9.84inch * 3.15inch
Qty per Carton 46
Carton Weight 30kgs / 66.14lb
Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
