Shaft Length 23mm Quartz Pendulum Clock Movement DIY Movement Kits
轴长23mm 2款金属钟针+摇摆机芯创意摆钟机芯DIY套件
条码：6922734315017
HSCode：91051900
批量修改原始型号 		采购：Eva  编辑：Ellie  产品经理：caifeng


1. Wide range of applications: your own DIY clock or for repairing and replacing bad wall clocks. Suitable for cross-stitch, three-dimensional embroidery, craft clocks, frameless paintings, floor clocks, etc.

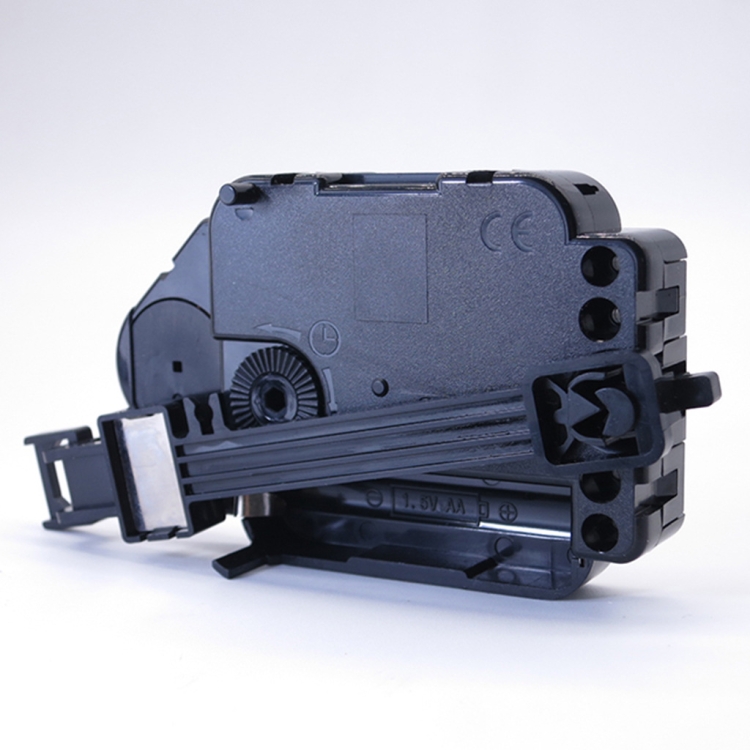

2. Movement model: HR1688-23 swing movement

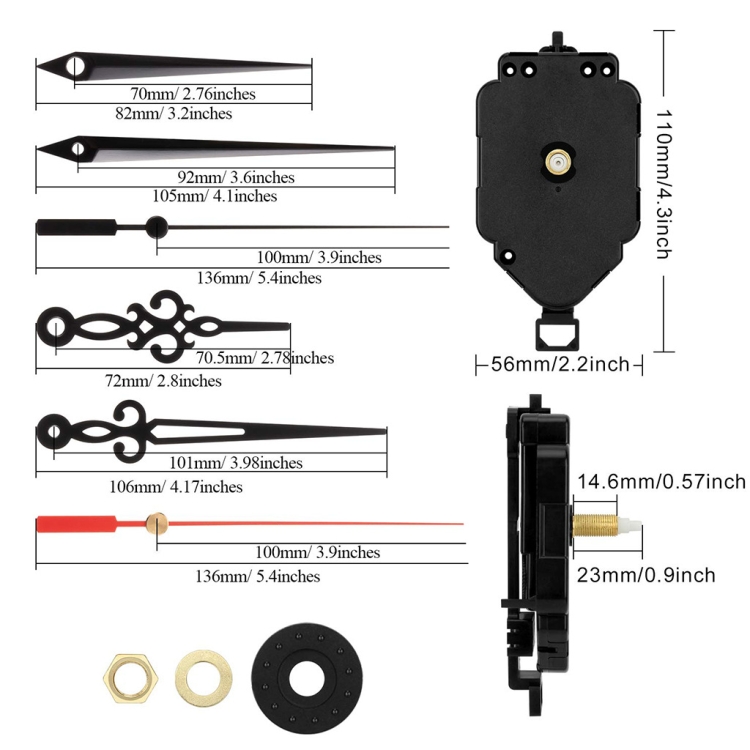

3. Movement size: 110 x 56mm
4. Movement shaft length: total shaft length 23mm, thread height 14.6mm, suitable for through about 11mm thick panel
5. Battery: use one AA battery (shipped without battery)
6. Pointer model: HR9312+903
-Size: measured from the center hole, hour hand 70mm, minute hand 92mm, second hand 100mm, suitable for panels with a diameter of 22cm or more
-Material: metal
-Color: black hour, minute and second hands
7. Hand model: HR9611-1+903
-Size: measured from the center hole, hour hand 70.5mm, minute hand 101mm, second hand 100mm, for panels with a diameter of 22cm or more
-Material: metal
-Color: black hour and minute hands + gold-tipped red seconds hand

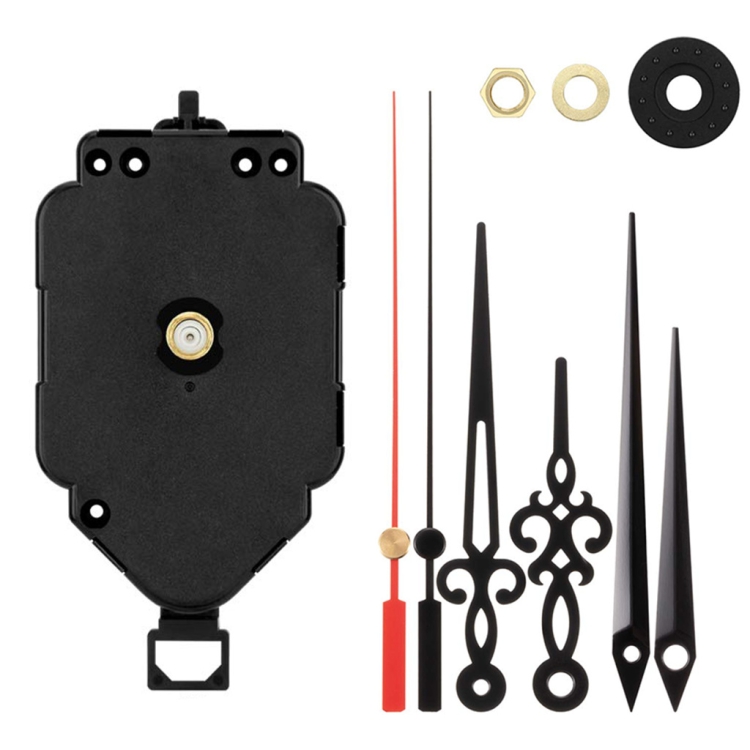

Packing list:
1 x oscillating movement
2 x hour hand
2 x minute hand
2 x second hand
1 x nut
1 x Washer
1 x rubber pad

1. 应用广泛：自己DIY时钟或用于修补、更换坏的挂钟。适用于十字绣、立体绣、工艺钟、无框画、落地钟等
2. 机芯型号：HR1688-23摇摆机芯
3. 机芯尺寸：110 x 56mm
4. 机芯轴长：总轴长23mm，螺纹高14.6mm，适用于穿过约11mm厚的面板
5. 电池：使用一节5号AA电池（出货不含电池）
6. 指针型号：HR9312+903
-尺寸：从中心孔量起，时针70mm，分针92mm，秒针100mm，适用于直径22厘米以上的面板
-材质：金属
-颜色：黑色时分秒针
7. 指针型号：HR9611-1+903：
-尺寸：从中心孔量起，时针70.5mm，分针101mm，秒针100mm，适用于直径22厘米以上的面板
-材质：金属
-颜色：黑色时分针+金头红色秒针

包装清单：
1 x摇摆机芯
2 x时针
2 x分针
2 x秒针
1 x螺母
1 x华司
1 x胶垫
代码：

Specification:
Package weight
One package Weight 0.1kgs / 0.22lb
One Package Size 19.0cm * 7.0cm * 6.0cm / 7.48inch * 2.76inch * 2.36inch
Qty per Carton 288
Carton Weight 30kgs / 66.14lb
Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
