GA01P 2G Mini Intelligent Power Off / Power Outage SMS Phone Alarm
GA01P 2G 迷你智能断电/停电短信电话报警器
条码：6922538136525
HSCode：85319010
批量修改原始型号 		采购：Dani  编辑：zengli  产品经理：Maura

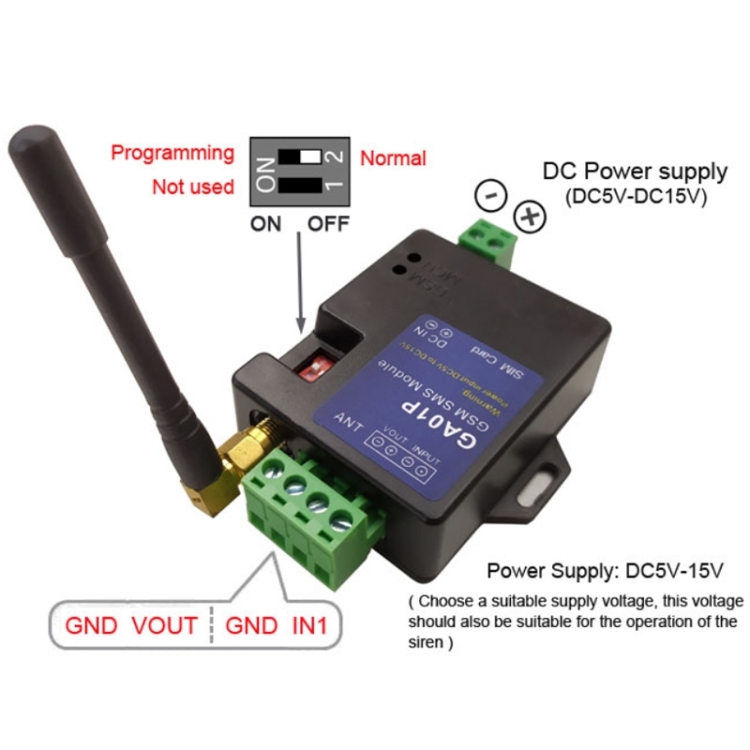

1. Power supply: DC5-15V (V)
2. Communication method: GSM
3. Relay drive: 1 voltage output
4. Probe input mode: dry junction
5. Type: Anti-theft alarm panel
6. Scope of application: industry, shops, homes, warehouses, communities, buildings, garages, etc.

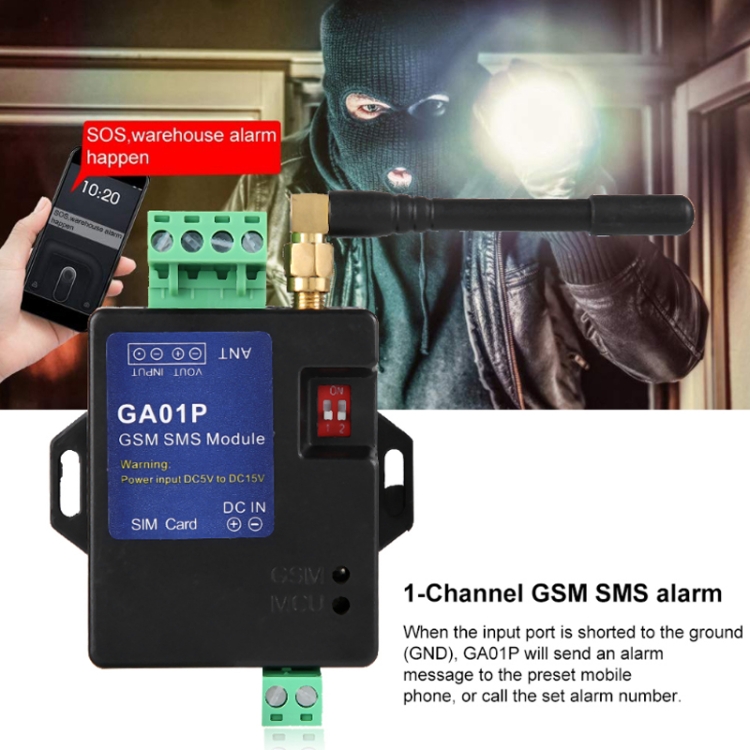

7. The input of GA01P is a switch signal. When the input port is short-circuited with the ground wire (GND), GA01P will send an alarm text message to the preset alarm mobile phone, or call the set alarm number. The content of the alarm text message can be set by yourself
8. It is easy to use and can be well embedded in other equipment as a remote alarm system
9. The alarm content of the 1-channel alarm input and the alarm content of returning to normal can be defined by yourself
10. Built-in rechargeable lithium battery (140mAh), usually in charging state, when the main power supply fails, it will provide power and send an alarm message to the preset number

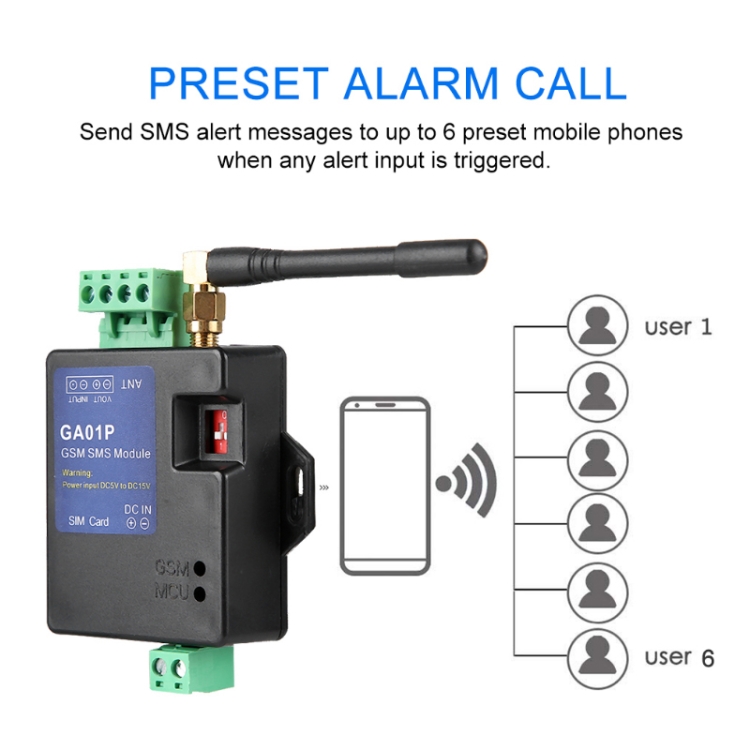

11. Remote text messages and phone calls
12. Support one alarm input
13. Support the connection of the alarm to realize the sound, or the sound and light alarm
14. Support wide voltage input, DC 5V to DC 15V

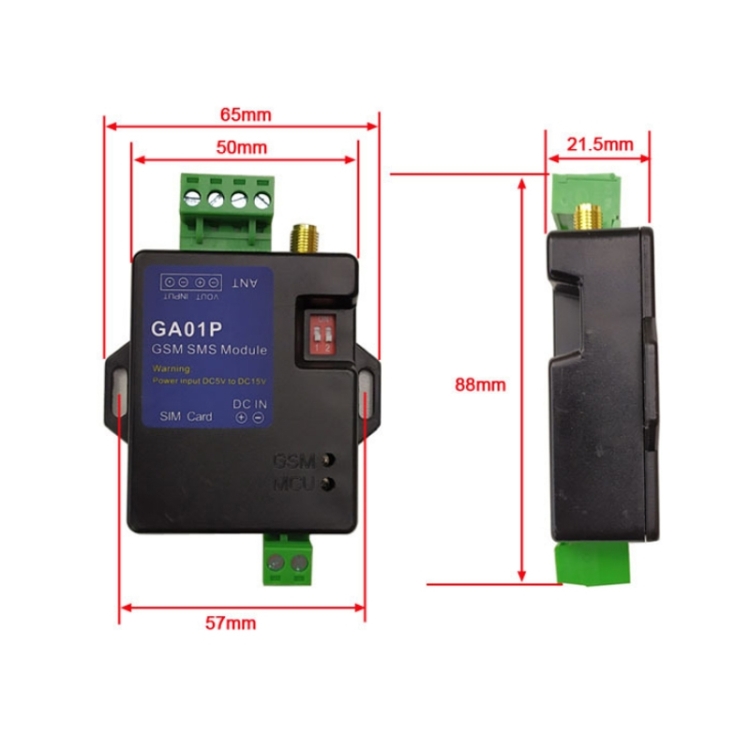

15. Dimensions: 65x88x21.5 mm
17. Weight: about 100 grams

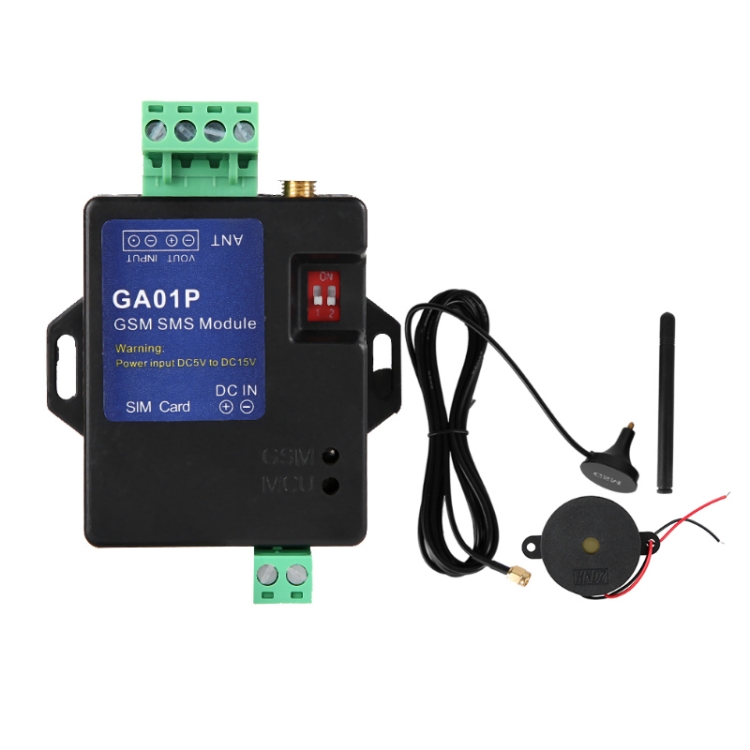

Packing list:
- GA01P SMS phone alarm x 1
- Antenna x 1
- Sound alarm x 1

1. 供电电源：DC5-15V（V）
2. 通讯方式：GSM
3. 继电器驱动：1路电压输出
4. 探头输入方式：干结点
5. 类型：防盗报警主机
6. 适用范围：工业，商铺，家庭，仓库，小区，楼宇，车库等
7. GA01P的输入为开关信号，当输入端口端口与地线(GND)短路时，GA01P会向预先设置的报警你手机发送报警短信，或者呼叫设定的报警号码，报警短信的内容可以自己设置
8. 使用简单方便，可以很好的嵌入到其它设备中，担任远程报警的工作系统中
9. 1路报警输入的报警内容以及恢复正常的报警内容均可以自己定义
10. 内置可充电锂电池（140mAh），平时为充电状态，在主电源掉电的时候，则会提供电源，向预设号码发送报警短信
11. 可以远程短信电话
12. 支持一路报警输入
13. 支持可接报警器实现声音，或者声光报警
14. 支持宽电压输入，直流5V到直流15V
15. 尺寸：65x88x21.5毫米
17. 重量：100克左右

包装清单：
- GA01P短信电话报警器 x 1
- 天线一根 x 1
- 声音报警器 x 1
代码：

Specification:
Package weight
One package Weight 0.13kgs / 0.29lb
One Package Size 10.0cm * 12.0cm * 5.0cm / 3.94inch * 4.72inch * 1.97inch
Qty per Carton 194
Carton Weight 30kgs / 66.14lb
Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
