SKU:

For Nintendo Switch / Switch OLED SW335 Network Card Investment Base HDMI Video Conversion Charging Bracket Storage
适用于任天堂Switch / Switch OLED SW335 网卡投屏底座HDMI视频转换充电支架收纳
条码：6922083605458
HSCode：39174000
批量修改原始型号 		采购：Nicole  编辑：Alan  产品经理：caifeng


1. Applicable products: for Nintendo Switch / Switch OLED
2. Scope of application: TV, monitor projection
3. Network port output: 1000MBPS
4. Output voltage: 5V-15V
5. Working current: about 2.6A
6. USB: 2.0
7. Note: The product only includes the bracket, nothing else
8. Material: ABS
9. Network port: RJ45

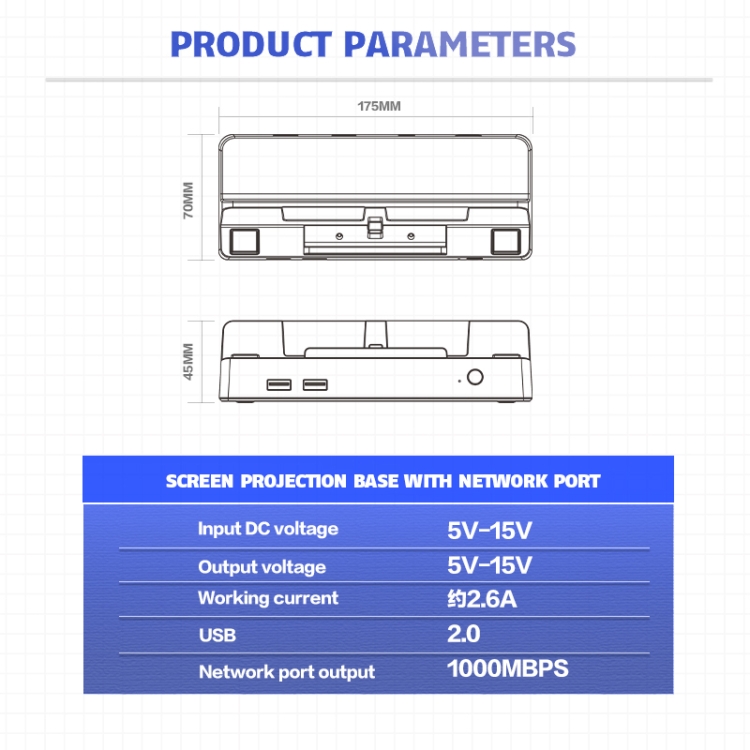

10. Size: 18x7.5x5CM
11. Net weight: 126G
12. Gross weight: 156G

Features:

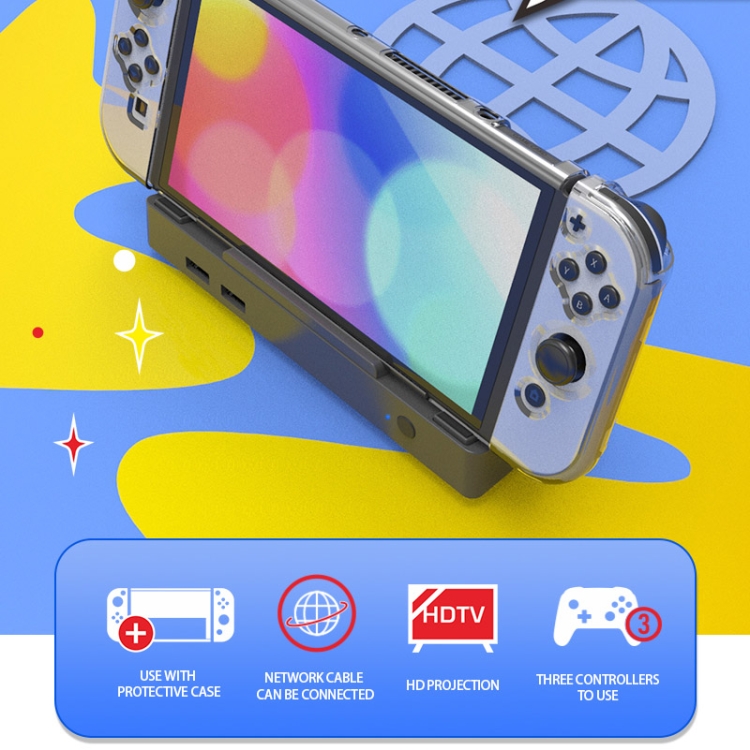

1. TV screen projection base with network port, used with a protective case, can connect network cable, high-definition screen projection, and expand three handles
2. Data input: TYPE-C/USB-C male connector, suitable for Switch host
3. Video data output: HDMI to TV conversion video
4. USB HUB output: 3 USB2.0
5. Network output: Gigabit network transmission, controlled by independent chip AX88179, integrated 10/100/1000Mbps network transmission

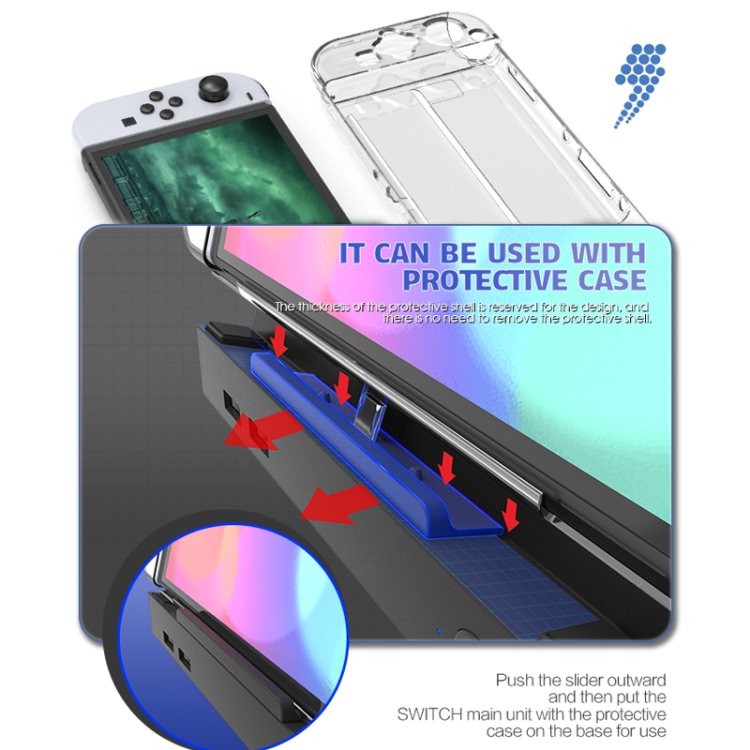

6. The thickness of the protective case is reserved for the design, which can be used without removing the protective case
7. Push the slider outward, and then put the protective case suitable for the Switch host on the base for use

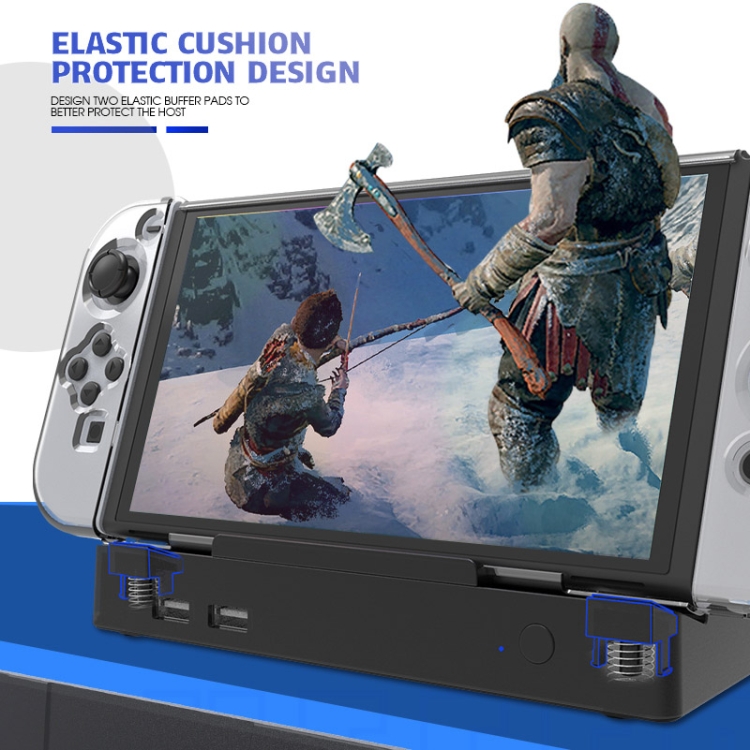

8. Elastic buffer pad protection design, better protect the host

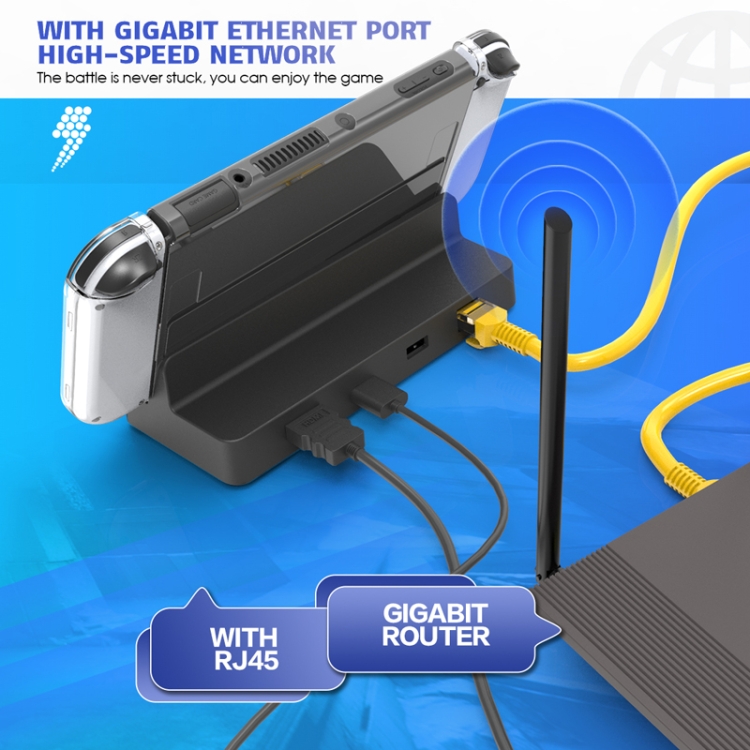

9. With Gigabit Ethernet port, high-speed networking, no lag, and smooth game play
10. 4K scalp, support one-key switching, free switching between desktop mode and TV mode, enjoy the fun of the big screen

Operation guide:
1. Use an adapter power supply to connect to the power input Type-c interface of the base, connect one end to the TV with HDMI, and connect the other end to the video output HDMI interface of the base. Convert and output to TV end, video switching can be switched to the host by pressing the TV switch button
2. Use the base to plug in the power to charge the main unit, and you can charge while playing games
3. The USB interface can be connected externally and is suitable for the use of Switch wired controllers
4. Insert the network cable into the network port to connect to the network

1. 适用产品：适用于任天堂 Switch / Switch OLED
2. 适用范围：电视、显示器投屏
3. 网口输出：1000MBPS
4. 输出电压：5V-15V
5. 工作电流：约2.6A
6. USB：2.0
7. 注意：产品仅含支架，不含其他
8. 材质：ABS
9. 网口：RJ45
10. 尺寸：18x7.5x5CM
11. 净重：126G
12. 毛重：156G

特点：
1. 带网口电视投屏底座，带保护壳使用，可以连接网线，高清投屏，扩展三个手柄
2. 数据输入：TYPE-C/USB-C公头，接插适用于Switch主机
3. 视频数据输出：HDMI 到电视转换视屏
4. USB HUB输出：3个USB2.0
5. 网络输出：千兆网络传输，采用独立芯片AX88179控制，集成10/100/1000Mbps网络传输
6. 预留保护壳厚度空间设计，可以不用拆卸保护壳使用
7. 将滑块向外推动，再把带有保护壳的适用于Switch主机装上底座使用
8. 弹性缓冲垫保护设计，更好的保护主机
9. 带千兆网口，高速联网，不卡顿，畅玩游戏
10. 4K头皮，支持一键切换，桌面模式和电视模式自由切换，享受大屏乐趣

操作指引：
1. 用适配器电源连接到底座电源输入Type-c接口，用HDMI一头连接电视，一头连接底座视频输出HDMI接口，主机放到底座TYPE-C/USB-C公头插拔转换装置上面即可视频转换输出到TV端,视频切换可按TV切换按键即可视频切换到主机
2. 使用底座插上电源可对主机进行充电，可边玩游戏边充电
3. USB接口可外接适用于Switch有线手柄使用
4. 网口插入网线即可连接网络
代码：

Specification:
General
Compatible with Nintendo:  Switch OLED
Package weight
One package Weight 0.16kgs / 0.35lb
One Package Size 18.0cm * 8.0cm * 5.0cm / 7.09inch * 3.15inch * 1.97inch
Qty per Carton 182
Carton Weight 30kgs / 66.14lb
Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
