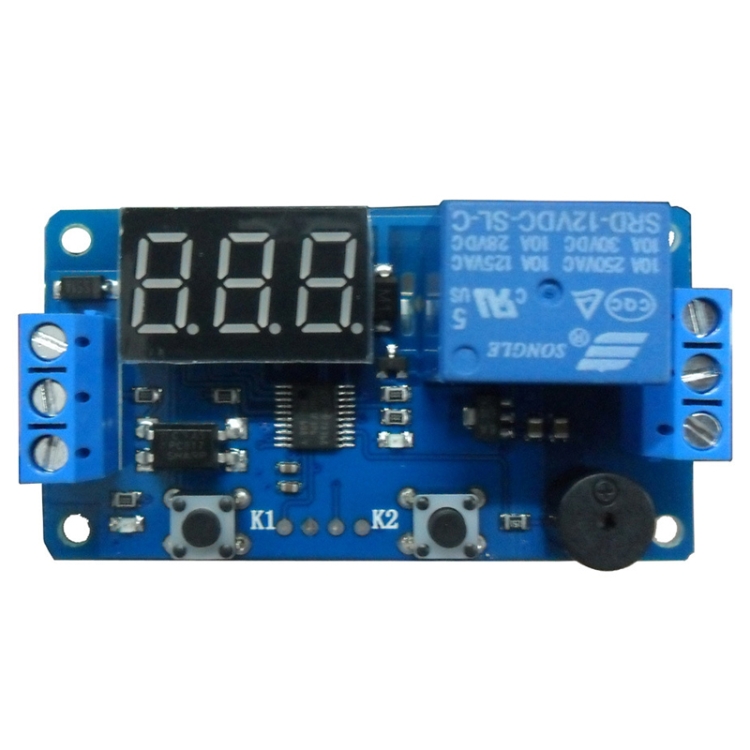

DK-C-01 Car Programmable Timing LCD Digital Display Relay Module Can Control DC AC Delay Relay
DK-C-01 汽车可编程定时液晶数显继电器模块可控制直流交流延时继电器
条码：6922857072321
HSCode：39259000
批量修改原始型号 		采购：Nicole  编辑：Ellie  产品经理：caifeng


1. Widely used in car modification and industrial mechanical, electrical and electrical equipment
2. Voltage input anti-reverse connection circuit, worry-free wiring

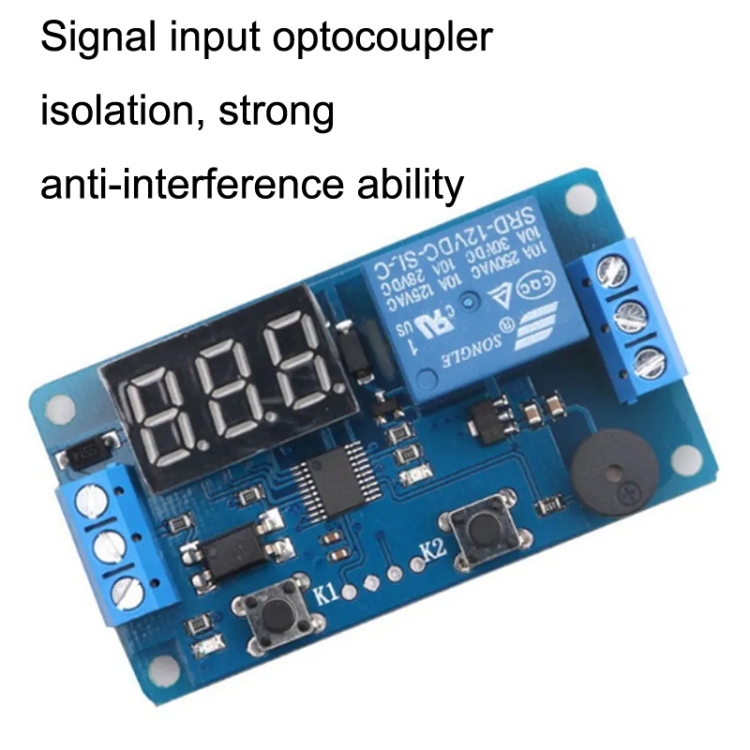

3. Signal input optocoupler isolation, strong anti-interference ability
4. The set parameters are permanently memorized when the power is off
5. Powerful FLASH MCU online programming function, according to user needs, you can contact the manufacturer to customize the required functions.
6. Working voltage: DC12V (normal working voltage DC10V-16V)

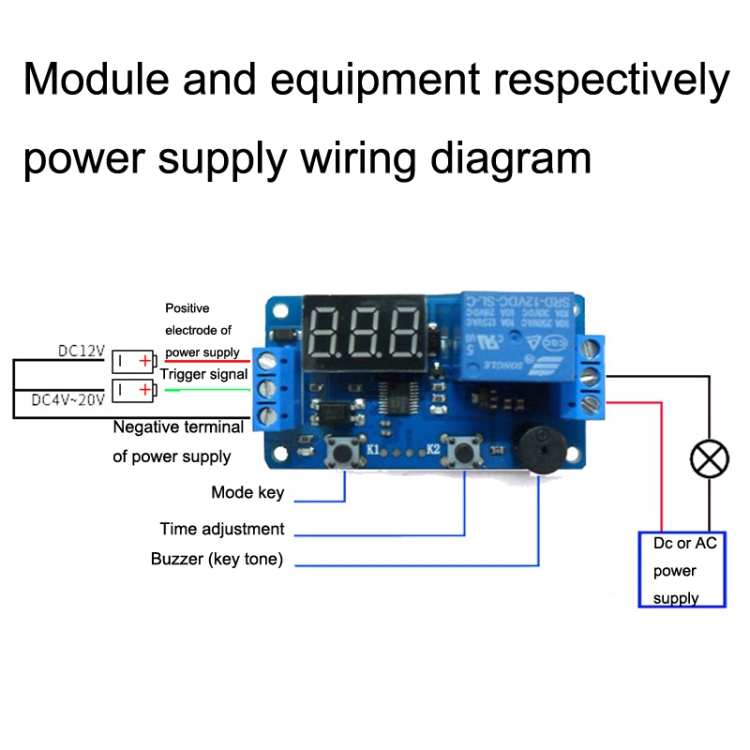

7. Output capability: It can control equipment within DC 30V 5A or AC 220V 5A
8. Static current: 20MA
9. Working current: 50MA
10. Service life: more than 100000 times
11. Working temperature: -40 to 85 degrees Celsius

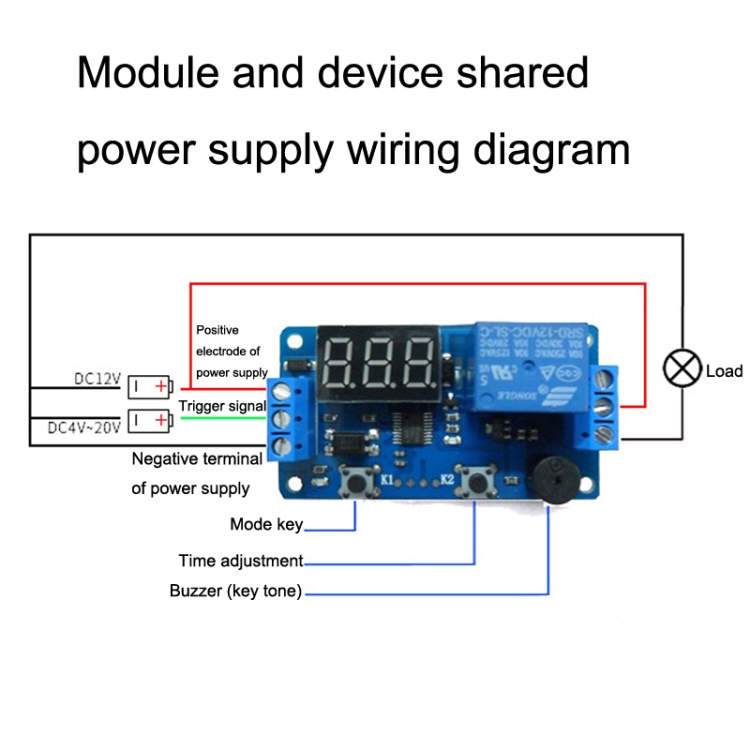

12. Signal source: DC4V-20V (common power supply positive trigger, button, PNP sensor, PLC signal, etc.)
13. Function: Turn on the power, receive the trigger signal, start counting down, at the same time the relay works, when the timing is over, the relay stops working, the time returns to the setting, and waits for the next trigger signal

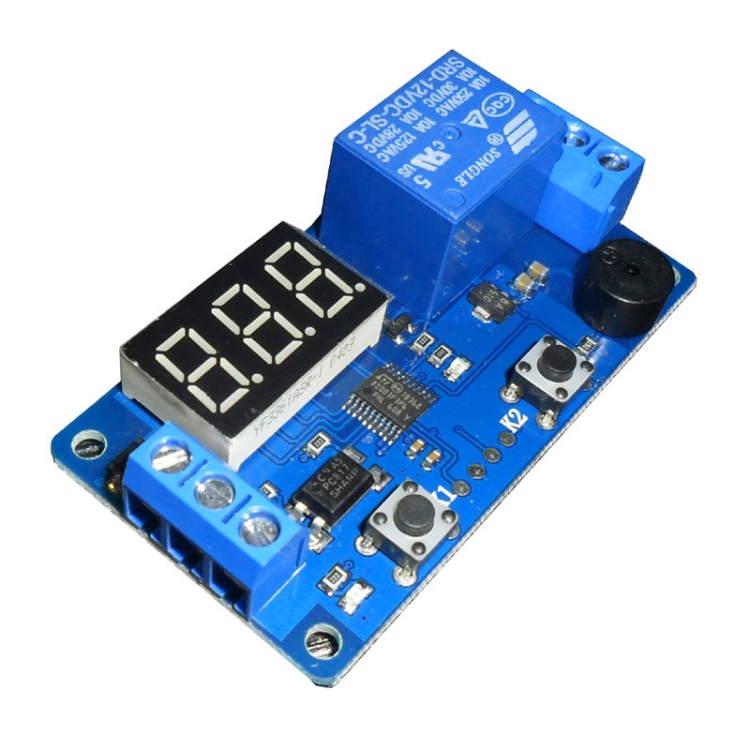

14. Dimensions: 64.2 x 34.8 x 18.5MM
15. Net weight: about 26G

Instructions
1. Press K1 to enter the time setting, the hundreds digital tube starts to flash, press K2 at this time, the hundreds digit changes; press K1+ digit digital tube starts to flash again, press K2 at this time, the tens digit changes; press again Press K1 once and the unit digit digital tube starts to flicker, press K2 at this time, the unit digit changes; press K1 again, exit the setting, and the digital tube no longer flickers
2. When the digital tube displays normally, press K2 to shift the decimal point. The decimal point in the ones represents 0 to 999 minutes, and the tens digit represents 0 to 99.9 seconds. Without a decimal point, it represents 0 to 999 seconds; the time setting is now complete.



1. 广泛应用于汽车改装和工业机电气动设备
2. 电压输入防反接电路，无忧接线
3. 信号输入光耦隔离，抗干扰能力强
4. 设定参数断电长久记忆
5. 强大的FLASH MCU在线编程功能，根据用户需求可联系厂商定制所需功能。
6. 工作电压：DC12V（正常工作电压DC10V-16V）
7. 输出能力：可以控制直流30V 5A以内或者交流220V 5A以内的设备
8. 静态电流：20MA
9. 工作电流：50MA
10. 使用寿命：大于10万次
11. 工作温度： -40至85摄氏度
12. 信号源：DC4V-20V（常用电源正极触发，按钮， PNP传感器，PLC信号等）
13. 功能：接通电源，收到触发信号，开始倒计时，同时继电器工作，计时结束，继电器停止工作，时间恢复到设定，等待下一个触发信号
14. 尺寸：64.2 x 34.8 x 18.5MM
15. 净重：约26G

操作说明
1. 按一下K1进入时间设置，百位数码管开始闪烁，此时按下K2，百位数字变化；再按一下K1+位数码管开始闪烁，此时按下K2，十位数字变化；再按一下K1个位数码管开始闪烁，此时按下K2,个位数字变化；再按一下K1,退出设定，数码管不再闪烁
2. 数码管正常显示时，按下K2，小数点移位，小数点在个位表示0到999分钟在十位表示0到99.9秒没有小数点表示0到999秒；至此时间设定完毕。
