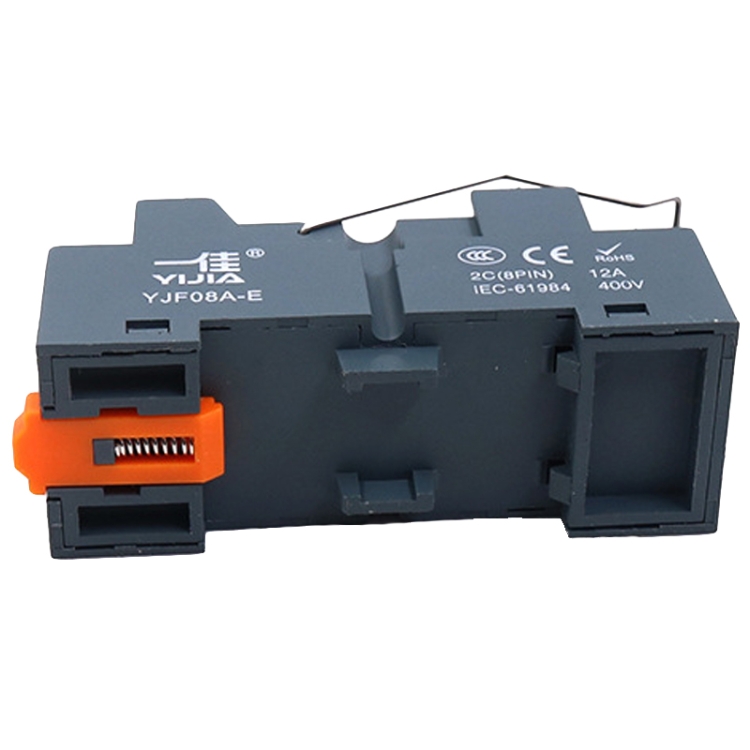

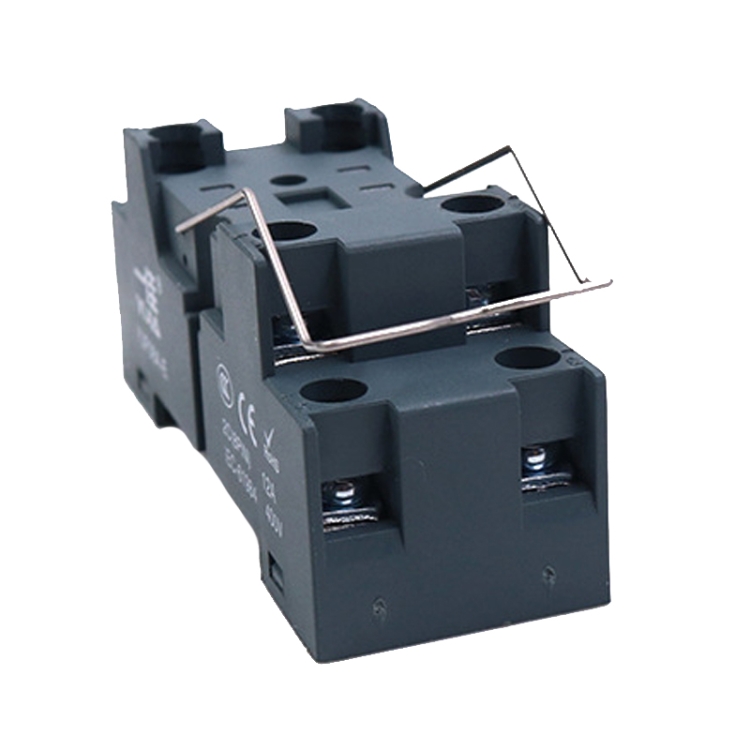

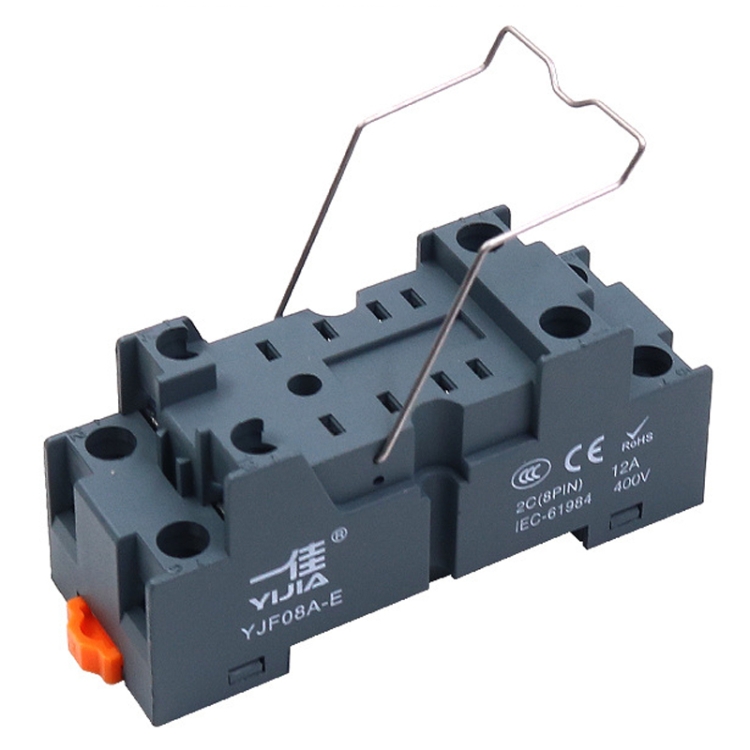

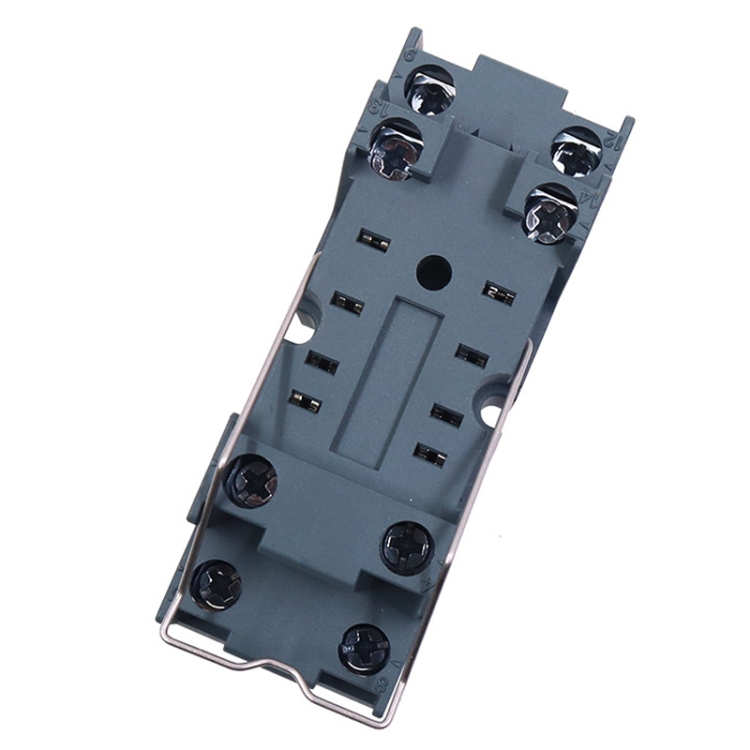

YIJIA YJF08A-E Compact HH52P Intermediate Electromagnetic Relay 8-Pin Base
一佳 YJF08A-E 小型HH52P中间电磁继电器8脚底座
条码：6922594580303
HSCode：39259000
批量修改原始型号 		采购：Karl  编辑：Joy  产品经理：caifeng


1. Product type: small 8-pin
2. Contact form: 2 open and 2 closed
3. Internal structure: high precision brass sheet connection
4. Installation: U-rail mounting/screw fixing

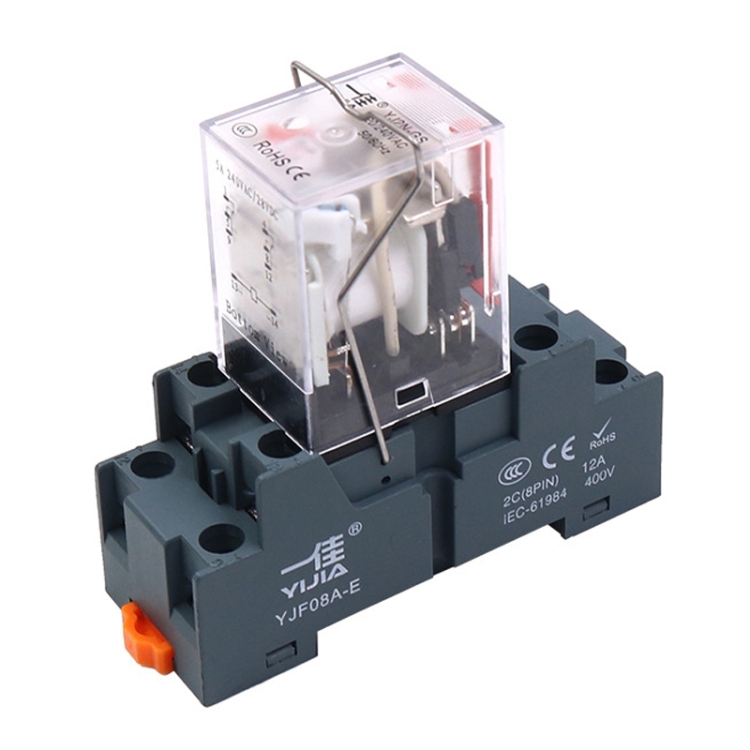

5. Applicable relays: YJ4N/QS/MY4NJ/HH54P/JZX-4Z
6. Flame retardant and impact resistant shell, high compressive strength, heat and corrosion resistance, good flame retardant insulation, U-type mounting clips, drop resistance and durability
7. Beautiful appearance, good conductivity, panel labeling product parameters, fine workmanship

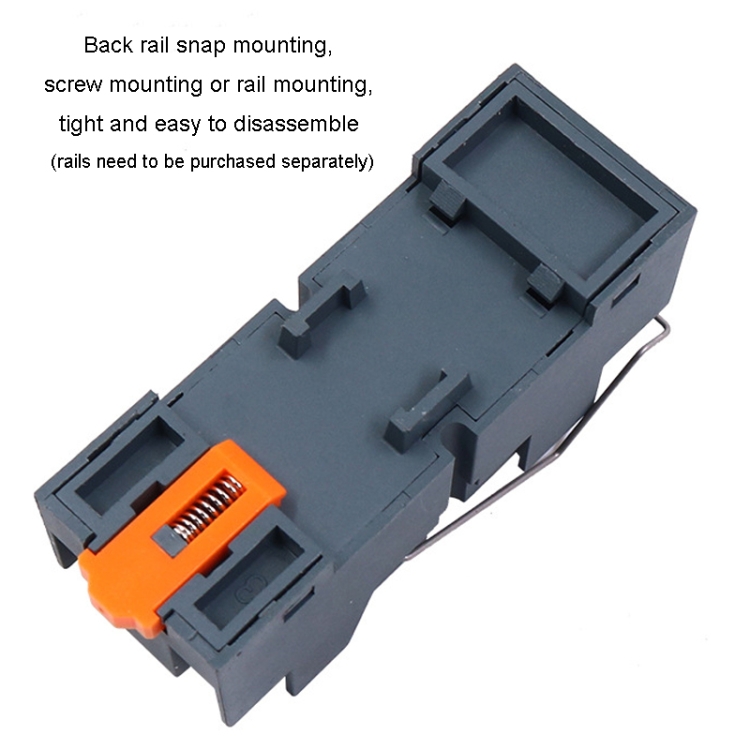

8. Back rail mounting, screw mounting or rail mounting, easy to dismantle (rails need to be purchased separately)
9. Apply to a variety of fields, suitable for instrumentation, electrical cabinet equipment, complete sets of equipment, the use of peace of mind
10. Weight: about 36 g

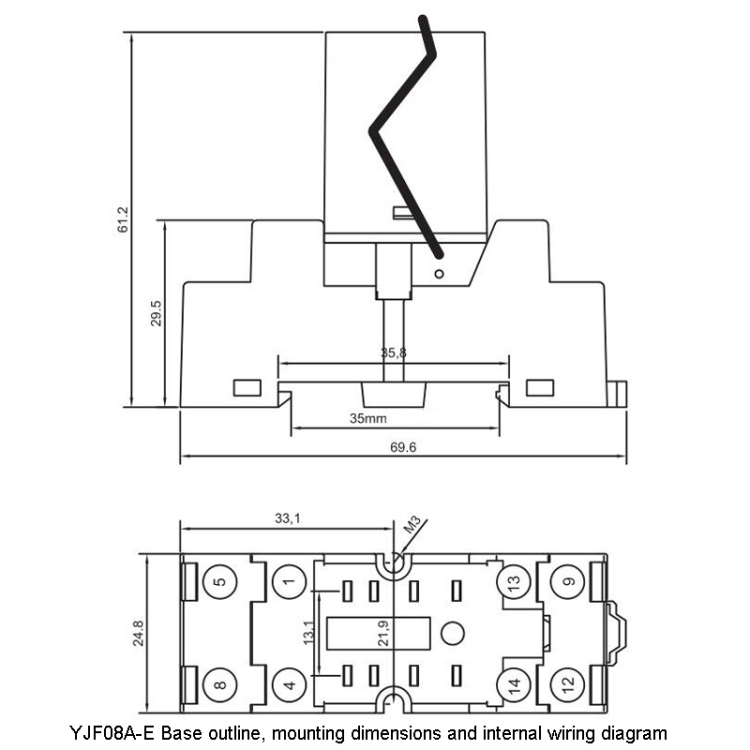

11. Size: about 6.95 x 2.45 x 2.9 cm

1. 产品类型：小8脚
2. 触点形式：2开2闭
3. 内部结构：高精黄铜片连接
4. 安装方式：U型导轨安装/螺丝固定
5. 适用继电器：YJ4N/QS/MY4NJ/HH54P/JZX-4Z
6. 阻燃耐冲击外壳，壳体抗压强度高，耐热耐腐蚀，阻燃绝缘性好，U型安装卡扣，耐摔耐用
7. 外形美观，导电性好，面板标注产品参数信息，做工精细
8. 背部导轨卡扣安装，螺丝安装或导轨式安装，紧固易拆卸(导轨需单独购买)
9. 应用于多种领域，适用于仪器仪表、电器柜设备、成套设备，使用放心
10. 重量：约36 g
11. 尺寸：约6.95 x 2.45 x 2.9 cm
代码：

Specification:
Package weight
One package Weight 0.05kgs / 0.11lb
One Package Size 10.0cm * 6.0cm * 5.0cm / 3.94inch * 2.36inch * 1.97inch
Qty per Carton 150
Carton Weight 8.6kgs / 18.96lb
Carton Size 52cm * 32cm * 32cm / 20.47inch * 12.6inch * 12.6inch
