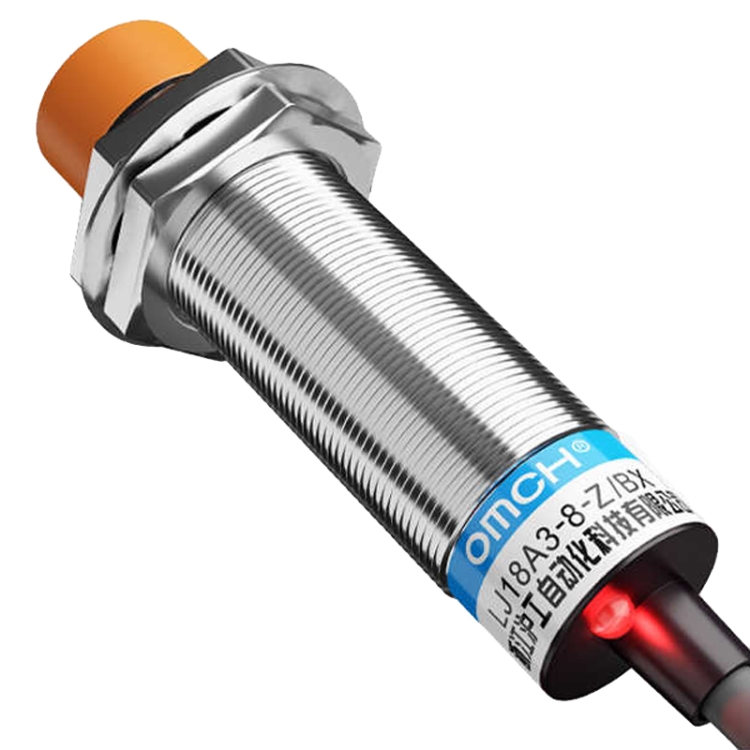

OMCH LJ18A3-8-Z/BX DC NPN 3-Wire Normally Open Sensors Inductive M18 Proximity Switch
沪工 LJ18A3-8-Z/BX 直流NPN三线常开传感器 电感式 M18 接近开关
条码：6922798704850
HSCode：74198099
批量修改原始型号 		采购：Karl  编辑：Joy  产品经理：Maura


1. Output form: DC NPN three-wire normally open
2. Detection distance: about 8mm
3. Detecting object: metal object
4. Current: 300mA
5. Power supply voltage: DC12-24V (6-36V)
6. Weight: about 86.2 g

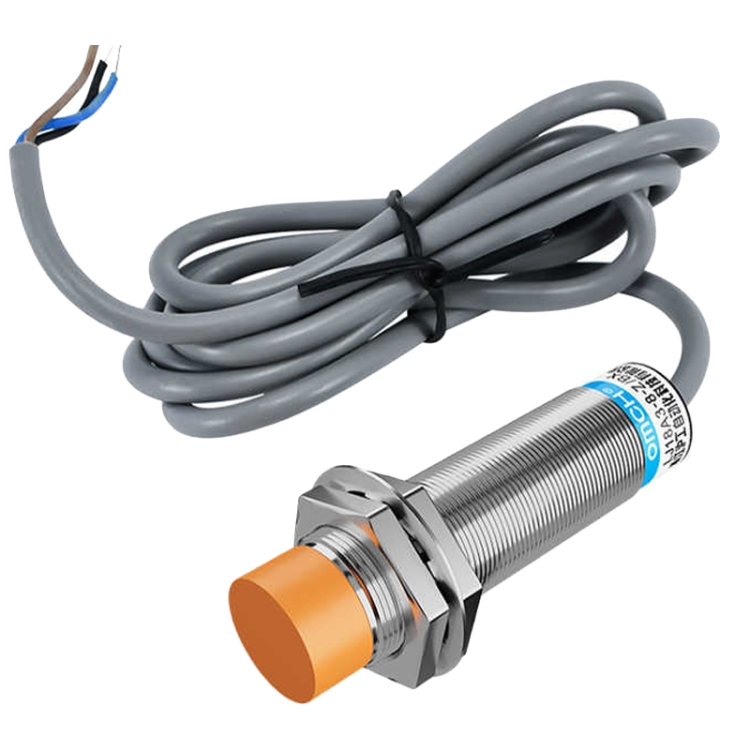

7. Wire length: about 1.1m

Features:

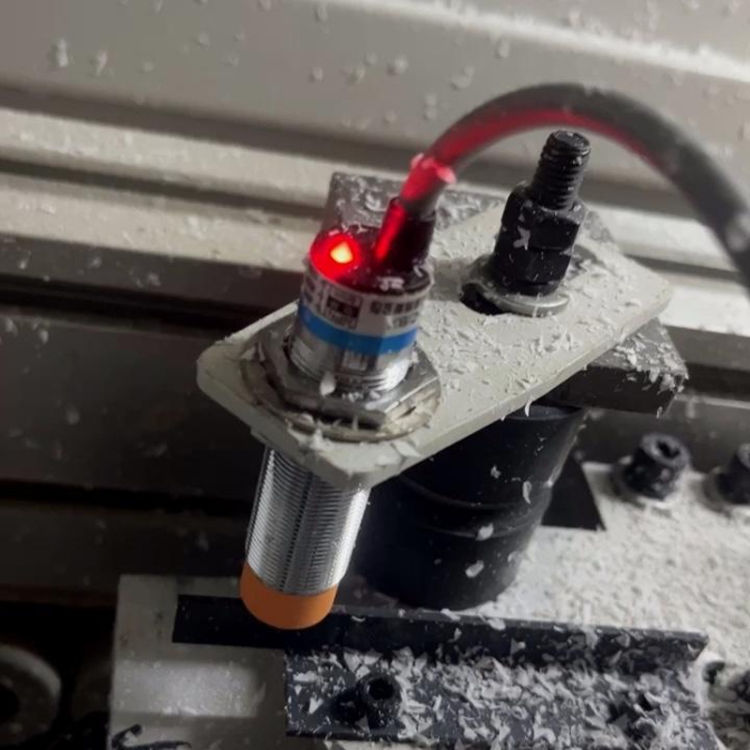

1. Proximity switch detects metal objects, the detection distance is about 8mm (when the proximity switch detects metal objects, the red light at the end will light up)
2. Built-in smart sensor chip on the top of the product, more sensitive to detect metal objects
3. Threaded design, solid and reliable, nickel-plated brass
4. Selection of wire, the standard line length of about 1.1 meters, the application of thicker cable, durable, good conductivity

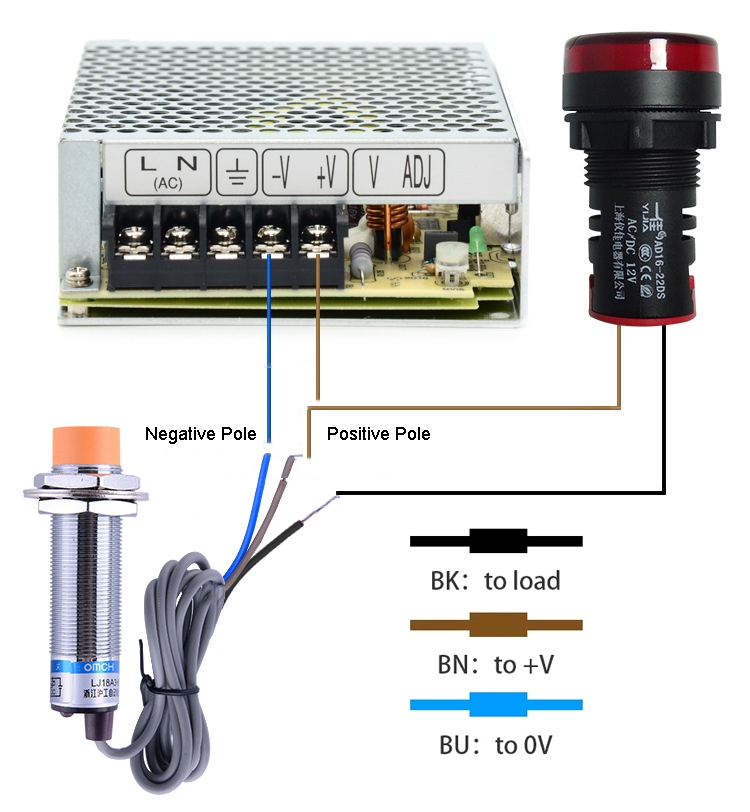

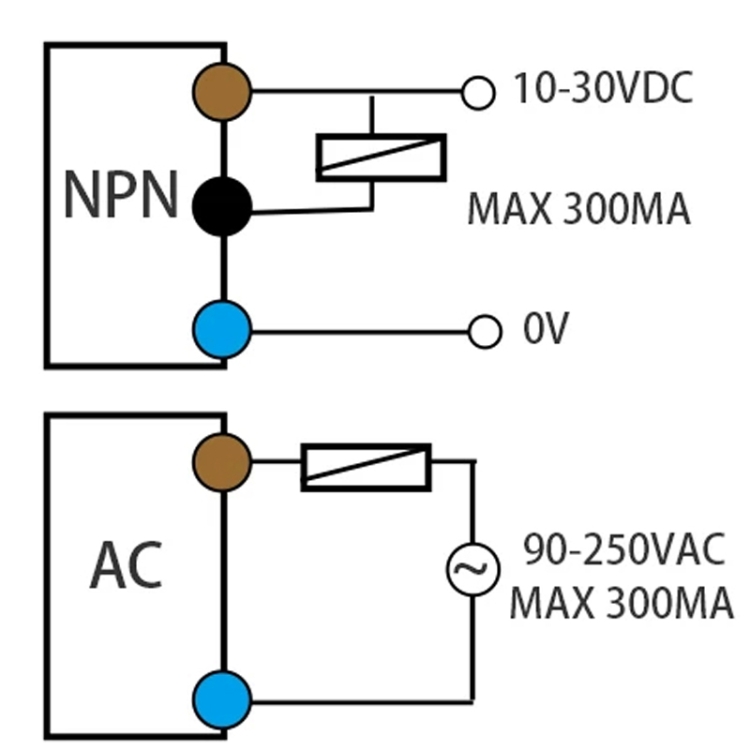

5. NPN: indicates a common positive voltage, negative voltage output; NPN NO: indicates that the normal is normally open, when the object is detected, the black line outputs a negative voltage signal

1. 输出形式：直流NPN三线常开
2. 检测距离：约8mm
3. 检测物体：金属物体
4. 电流：300mA
5. 电源电压：DC12-24V(6-36V)
6. 重量：约86.2 g
7. 线长：约1.1m

特点：
1. 接近开关检测金属物体，检测距离约为8mm(当接近开关检测到金属物体时,尾部红灯亮起)
2. 产品顶部内置智能感应芯片，更能灵敏检测金属物体
3. 螺纹式设计，牢固可靠，黄铜镀镍
4. 甄选电线，标准线长约1.1米，适用加粗电缆线，耐用，导电性好
5. NPN：表示共正电压，输出负电压；NPN NO：表示常态下是常开的，检测到物体时黑色线输出一个负电压信号
代码：

Specification:
Package weight
One package Weight 0.1kgs / 0.22lb
One Package Size 10.0cm * 6.0cm * 5.0cm / 3.94inch * 2.36inch * 1.97inch
Qty per Carton 120
Carton Weight 13.1kgs / 28.88lb
Carton Size 50cm * 32cm * 27cm / 19.69inch * 12.6inch * 10.63inch
