SKU:

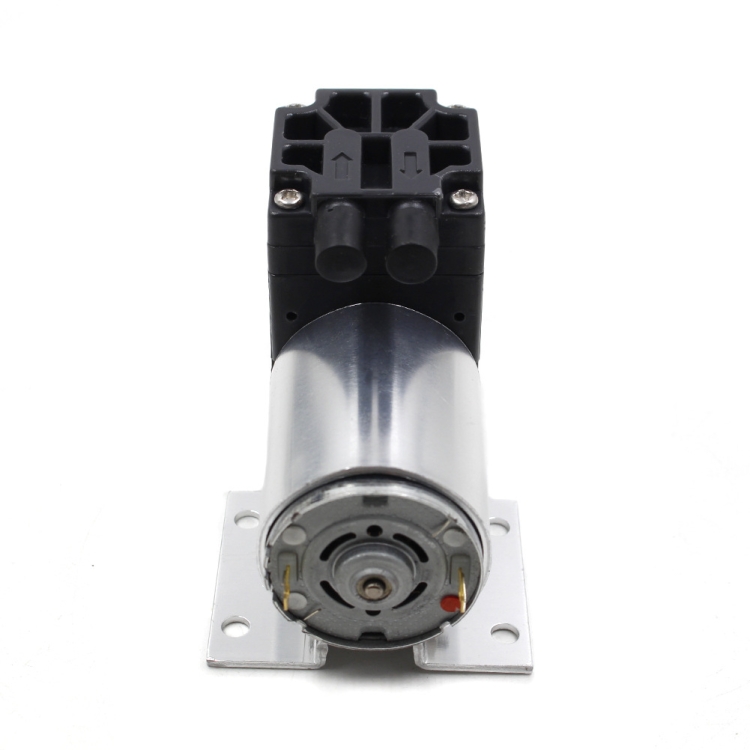

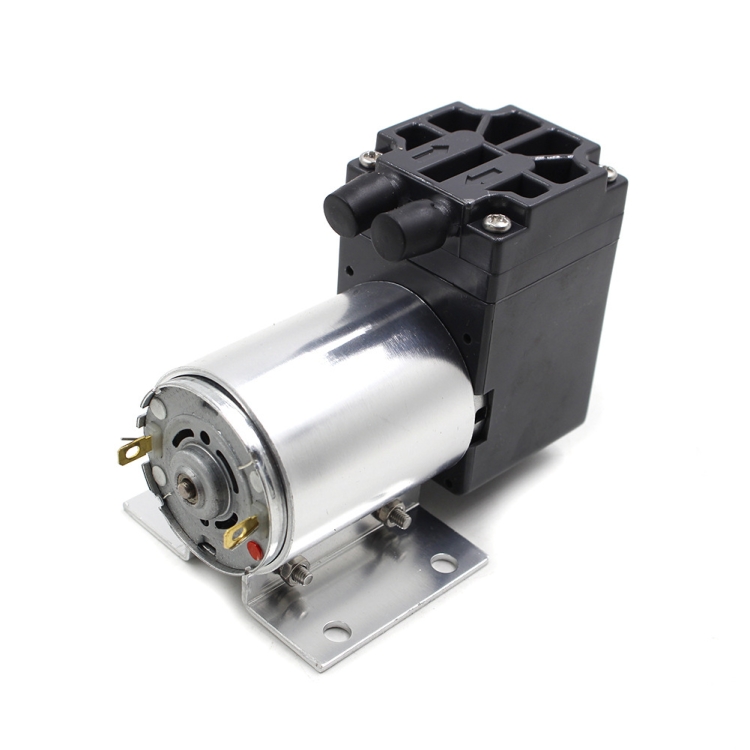

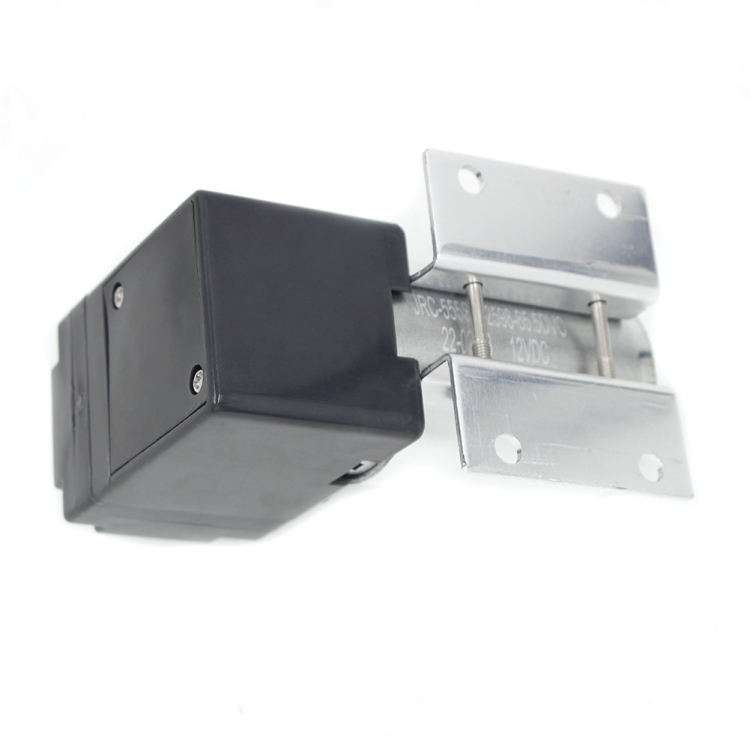

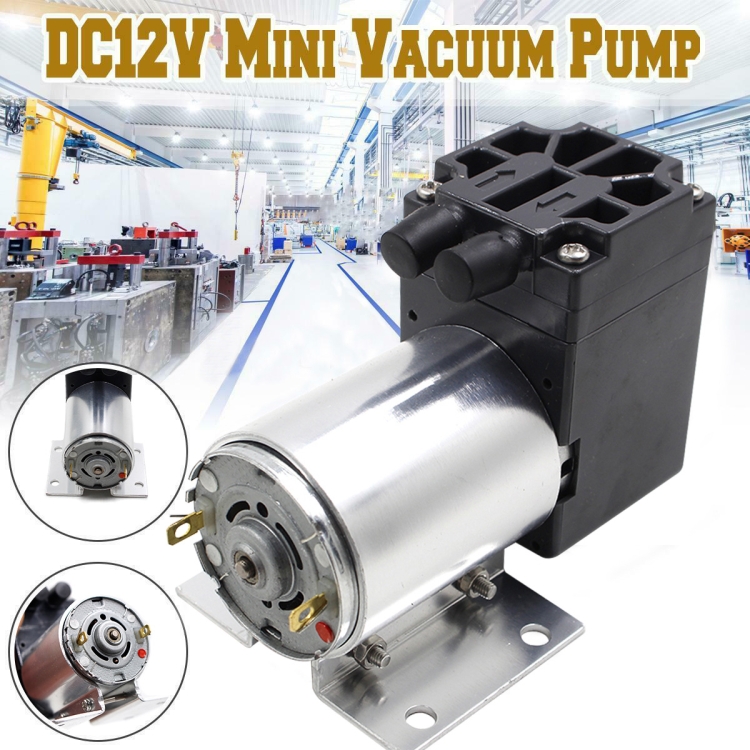

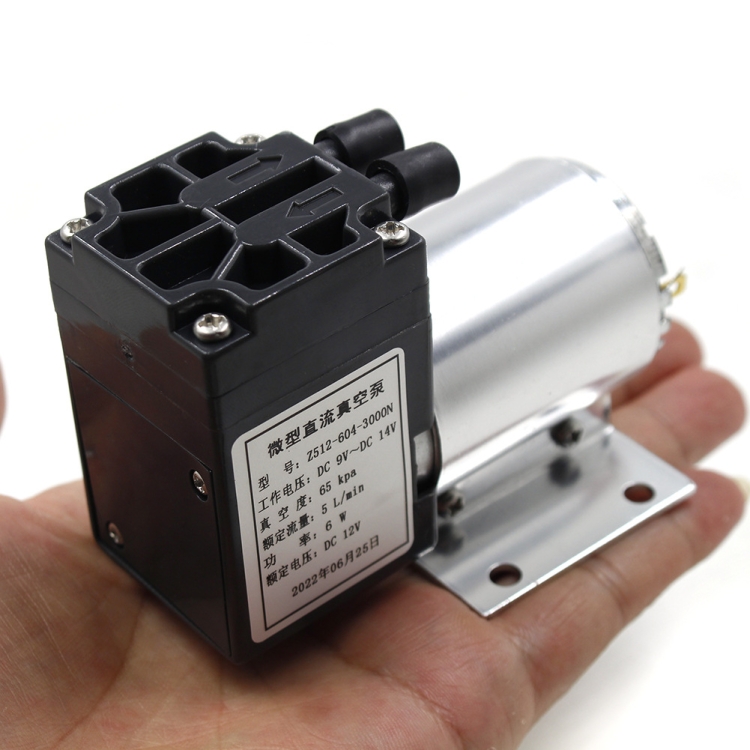

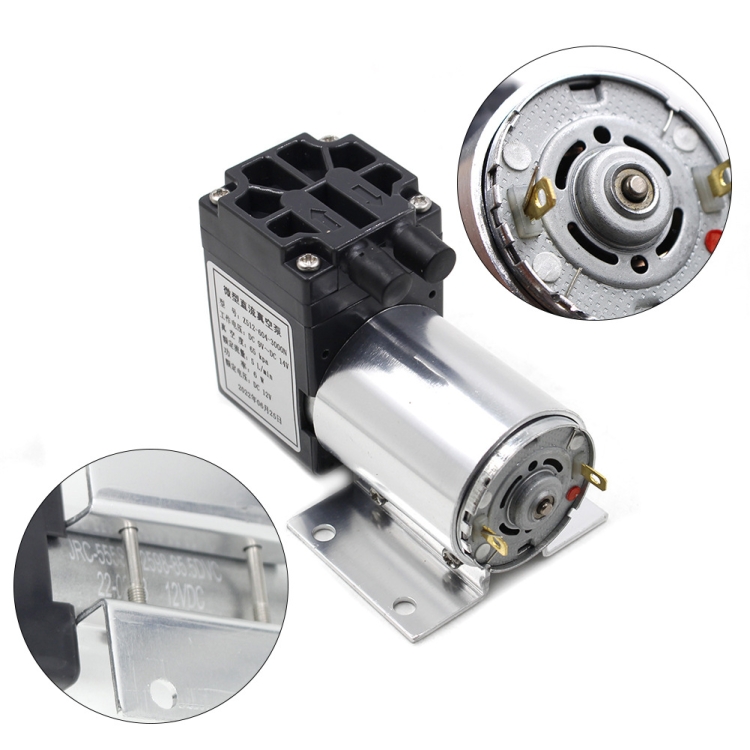

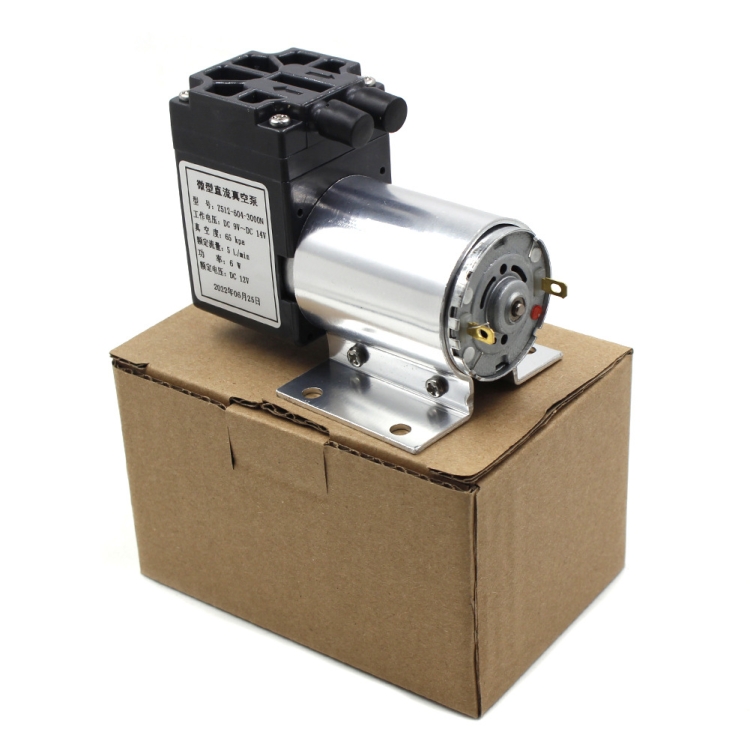

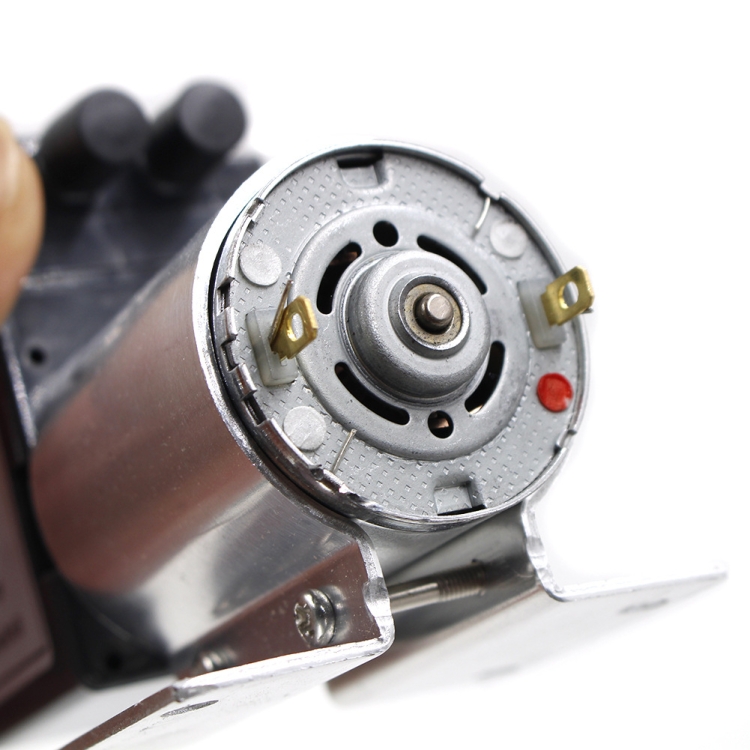

12V 5L/Min 65-120kpa Negative Pressure Vacuum Pump With Stand(Z512-604-3000N)
12V 5L/min 65-120kpa负压真空抽气泵带支架（Z512-604-3000N）
条码：6922416407375
HSCode：39259000
批量修改原始型号 		采购：Felix  编辑：Leah  产品经理：caifeng


1. Working voltage: DC9V~14V
2. Rated voltage: DC 12V
3. Rated current: 500mA
4. Rated power: 6W
5. Suction: 5L/min
6. Vacuum: 65kpa
7. Pressure: 120kpa (MAX)
8. Noise: 60db
9. Applicable to 4.5-6mm tubes, mainly about hardness, the outer diameter is 6.5mm
10. Driven by a micro DC motor, it drives the internal mechanical eccentric eccentric movement, and the eccentric movement drives the reciprocating movement inside the diaphragm, thereby compressing the fixed volume of air in the pump chamber (the compressed air intake port is closed, and the exhaust port forms a slightly open positive pressure), stretching (the compressed exhaust port is closed, and the negative pressure air intake port is opened), and the sucked air is accompanied by the external atmospheric pressure difference. Under a pressure difference, the gas pressure (inhalation) enters the pump chamber and is discharged from the exhaust port
11. Mainly used in electrical products, industrial products, vacuum preservation machines, automobile exhaust modification equipment, medical equipment, gas analysis sampling, instrumentation and other fields
12. Maintenance-free, oil-free pump, no pollution to the transmission medium, can work continuously for a long time
13. Small size, stable and reliable, handheld pump suction instrument, low noise, low power consumption

1. 工作电压：DC9V~14V
2. 额定电压：DC 12V
3. 额定电流：500mA
4. 额定功率：6W
5. 吸力：5L/min
6. 真空度：65kpa
7. 压力：120kpa（MAX）
8. 噪音：60db
9. 适用于4.5-6mm管，主要是关于硬度，外径部分为6.5mm
10. 由微型直流电机驱动，驱动内部机械偏心偏心运动，由偏心运动带动隔膜内部往复运动，从而将泵室固定容积的空气压缩（压缩吸气口关闭，排气口形成微开正压），拉伸（压缩排气口关闭，负压吸气口打开），抽吸的空气随同外界大气压力差，在一个压力差下，气体压力（吸入）进入泵腔，并从排气口排出
11. 主要用于电器产品，工业产品，真空保鲜机，汽车尾气改排设备，医疗器械、气体分析取样、仪器仪表等领域
12. 免维护，无油泵，不污染传输介质，可长时间连续工作
13. 体积小、稳定可靠、手持式泵吸仪表、低噪音、低功耗
代码：

Specification:
Package weight
One package Weight 0.34kgs / 0.75lb
One Package Size 11.0cm * 8.0cm * 7.0cm / 4.33inch * 3.15inch * 2.76inch
Qty per Carton 64
Carton Weight 22.86kgs / 50.4lb
Carton Size 46cm * 34cm * 30cm / 18.11inch * 13.39inch * 11.81inch
