CZI GL10 Gimbal Spotlight For DJI Mavic 3E / 3T Drone
司南成至GL10云台探照灯适用于大疆Mavic 3E / 3T无人机
条码：6922080792028
HSCode：39269010
批量修改原始型号 		采购：Kitty  编辑：Celery  产品经理：zengli

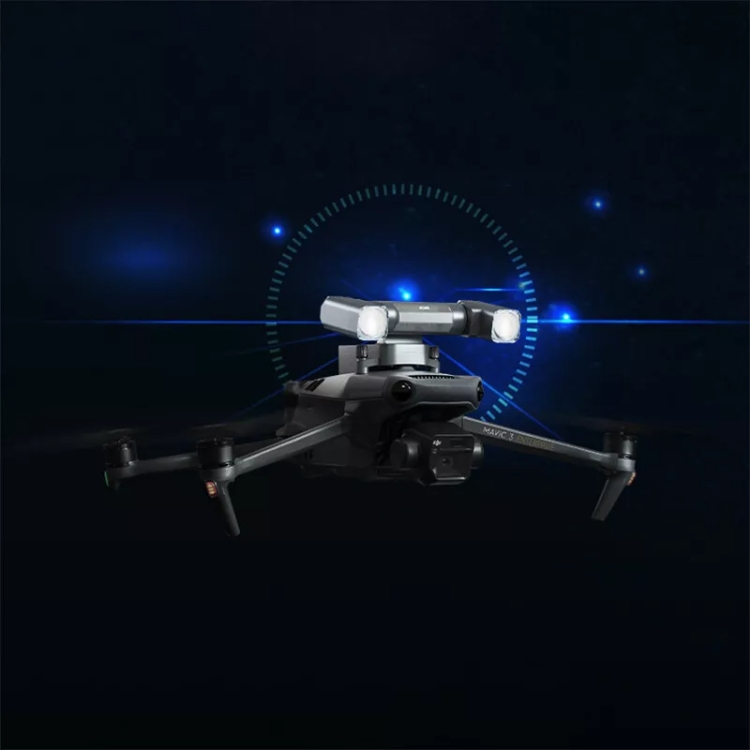

1. GL10 is equipped with dual spotlights, suitable for DJI Mavic 3E / 3T drones, with integrated red/blue warning LEDs for public safety operations.

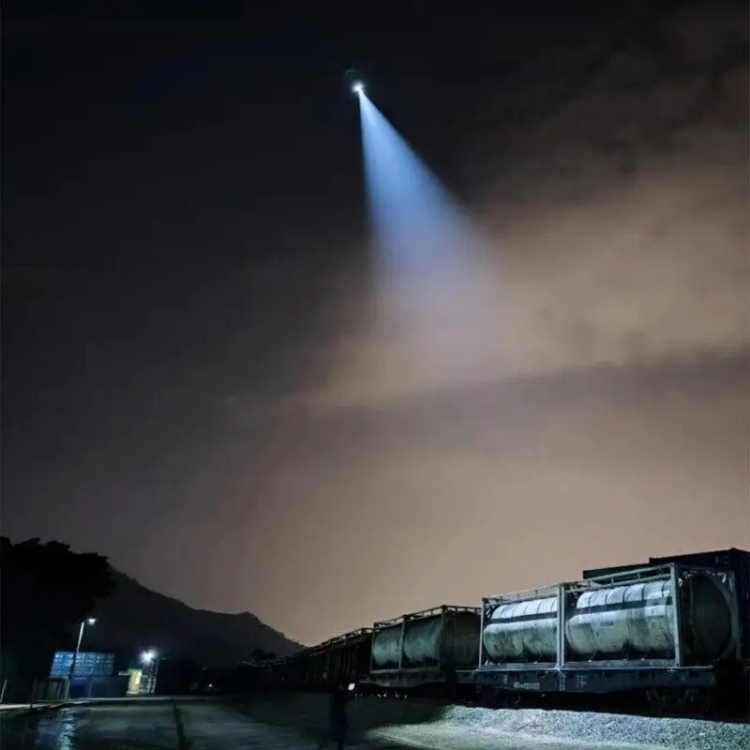

2. Rated power is 30W, it can emit a sharp beam at a 12.5-degree angle, with an effective search distance of 100 meters, uniform brightness, high color consistency, and effectively meet the needs of small drones for night patrols, direction indication, search and rescue and other application scenarios.
3. GL10 is equipped with dual-axis gimbal stabilization technology, which can achieve precise rotation and pitch movement, further enhancing the stabilization and anti-shake strength; by integrating AI algorithm intelligent technology, the light spot can be automatically centered, and the light column changes with the angle.

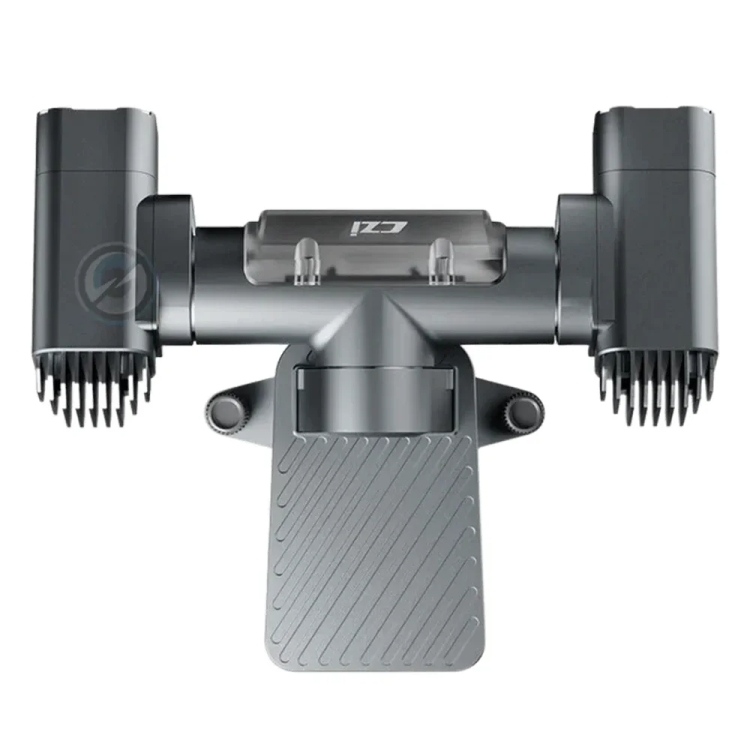

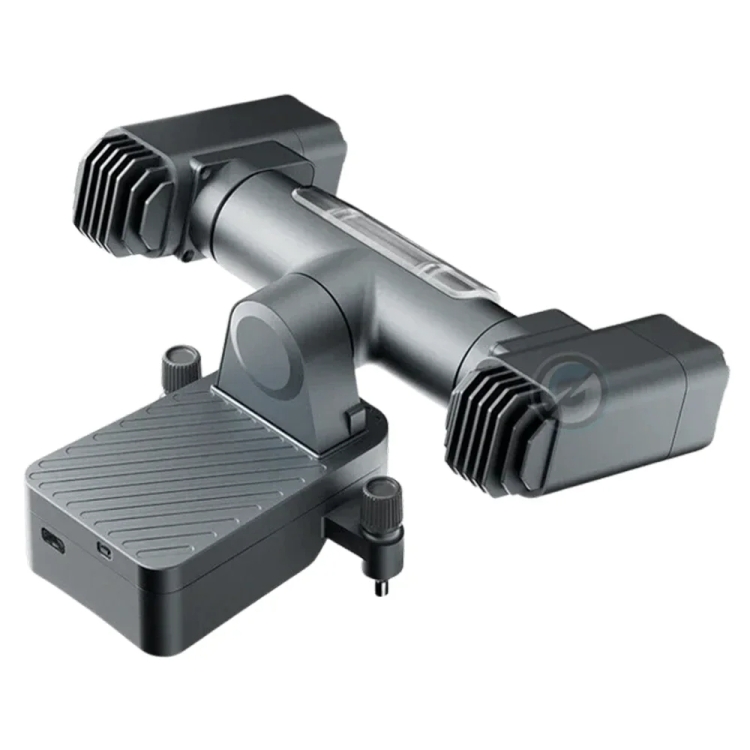

4. Lightweight and integrated, unique quick-release design

Specifications:
1. Electrical interface: for DJI PSDK
2. Weight: 130g +/- 4%
3. Dimensions: 107×128×51.5mm
4. Total power: 30W
5. White LED power: 20W
6. Red and blue LED power: 2W
7. Supply voltage: 15V
8. Luminous flux: 1830lm +/-3%
9. FOV: 12.5 degrees
10. Search distance:
--- 100m: spot diameter 22.8m, search area 407 square meters, center illumination 5.8Lux
-- 75m: spot diameter 17.1m, search area 229 square meters, center illumination 13.3Lux
-- 50m: spot diameter 11.4m, search area 102 square meters, center illumination 22.8Lux
11. Basic functions: white light night fill light, red and blue flash, dual-axis gimbal stabilization, gimbal AI algorithm light class automatic centering
12. Gimbal controllable rotation range: pitch -90 degrees to +70 degrees
13. Working temperature: -20 degrees Celsius to 50 degrees Celsius

1. GL10 配备双聚光灯，适用于大疆Mavic 3E / 3T无人机，集成红/蓝警告 LED，用于公共安全操作。
2. 额定功率30W，可发射出12.5度角锐利光束，有效探照距离达100米，亮度均匀，颜色一致性高，有效满足小型无人机夜晚巡查、方位指示、搜索救援等应用场景需求。
3. GL10搭载双轴云台增稳技术，可实现精准旋转俯仰运动，进一步提升增稳防抖力度；通过集成AI算法智能技术，可实现光斑自动居中，光柱随角度变化而变化。
4. 轻量一体化，独特快拆设计

规格：
1. 电气接口：兼容DJI PSDK
2. 重量：130g +/- 4%
3. 尺寸：107×128×51.5mm
4. 总功率：30W
5. 白光LED功率：20W
6. 红蓝LED功率：2W
7. 供电电压：15V
8. 光通量：1830lm +/-3%
9. FOV：12.5度
10. 探照距离：
---100m：光斑直径22.8m，探照面积407平方米，中心光照度5.8Lux
--75m：光斑直径17.1m，探照面积229平方米，中心光照度13.3Lux
--50m：光斑直径11.4m，探照面积102平方米，中心光照度22.8Lux
11. 基本功能：白光夜间补光，红蓝爆闪，双轴云台增稳，云台AI算法光班自动居中
12. 云台可控转动范围： 俯仰-90度至+70度
13. 工作温度：-20摄氏度至50摄氏度
代码：

Specification:
Package weight
One package Weight 0.3kgs / 0.66lb
One Package Size 18.0cm * 14.0cm * 8.0cm / 7.09inch * 5.51inch * 3.15inch
Qty per Carton 24
Carton Weight 8.3kgs / 18.3lb
Carton Size 38cm * 30cm * 50cm / 14.96inch * 11.81inch * 19.69inch
