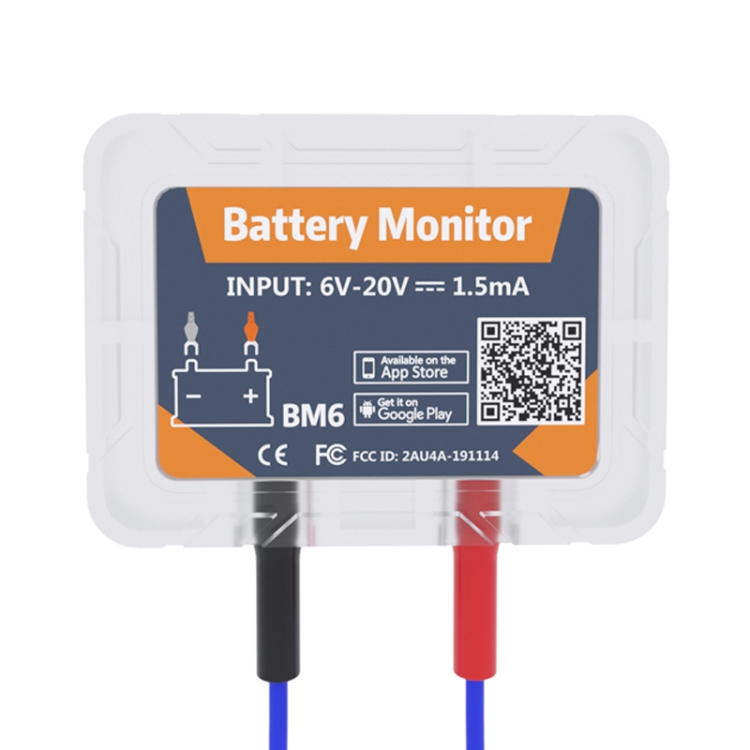

BM6 Car Battery Electricity Testing Instrument Locator
BM6 汽车电池电瓶检测仪定位器
条码：6922502646943
HSCode：90308200
批量修改原始型号 		采购：Lijialiang  编辑：Randi  产品经理：caifeng

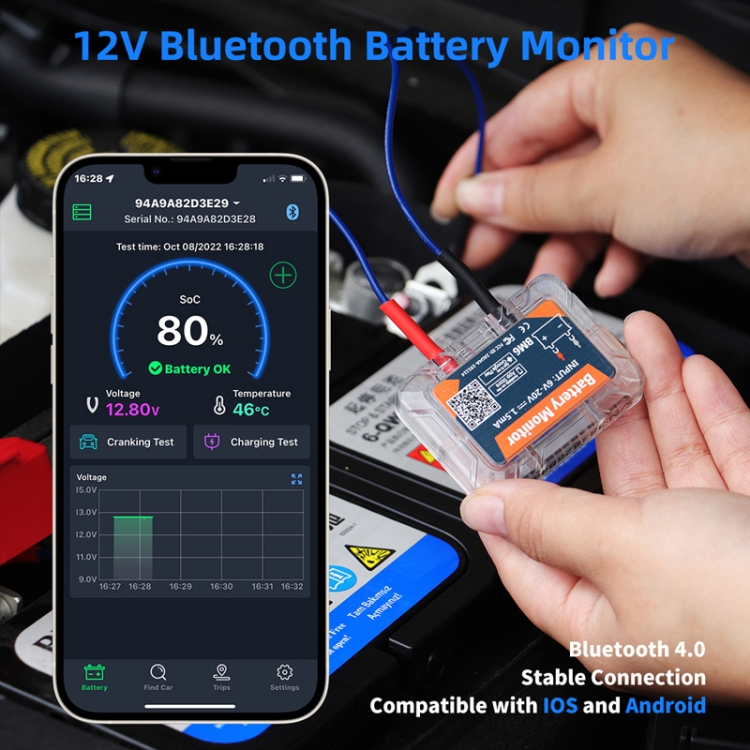

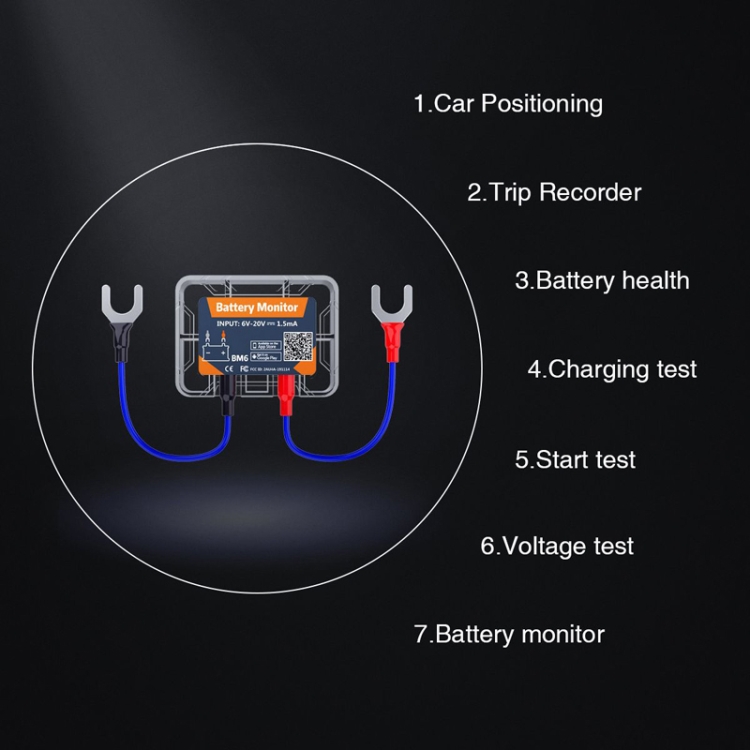

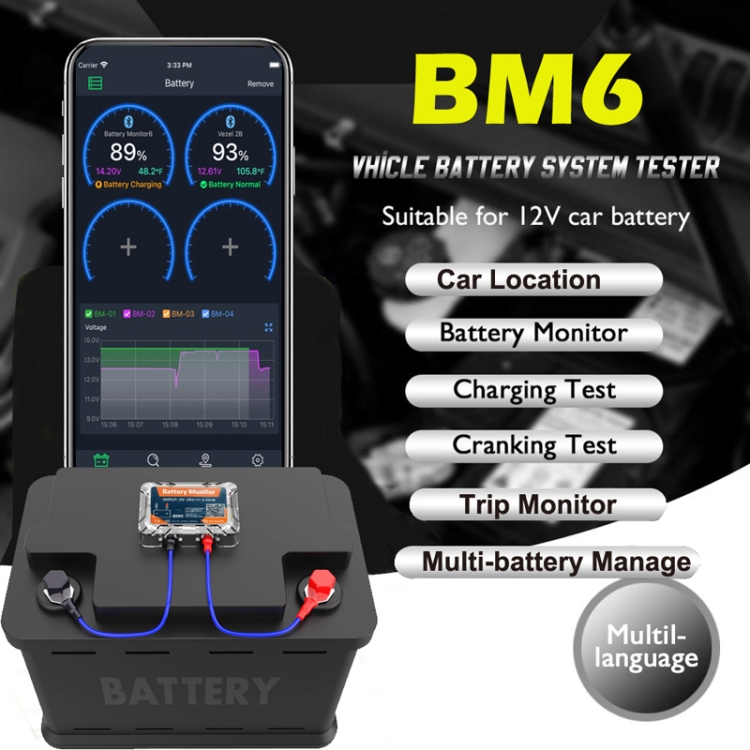

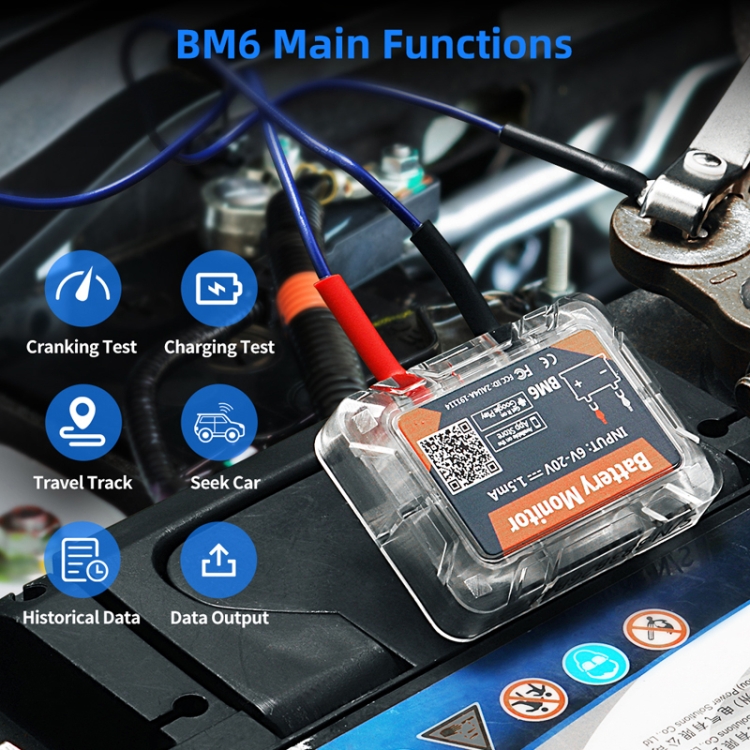

1. Receive battery status notification within bluetooth range
2. Automatically checks vehicle cranking system when engine is started
3. Checks charging system (alternator) lists time per drive and alerts cell phone when abnormal data is detected
4. Short circuit and reverse connection protection
5. Automatic synchronization within Bluetooth range, if not, data is stored in the battery monitor for up to 35 days
6. Compatible with all 12V car batteries

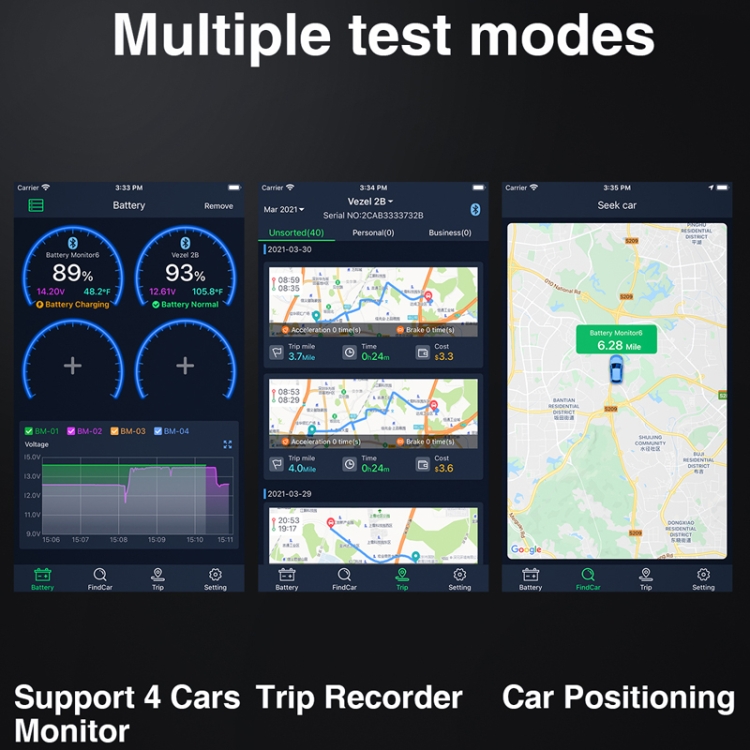

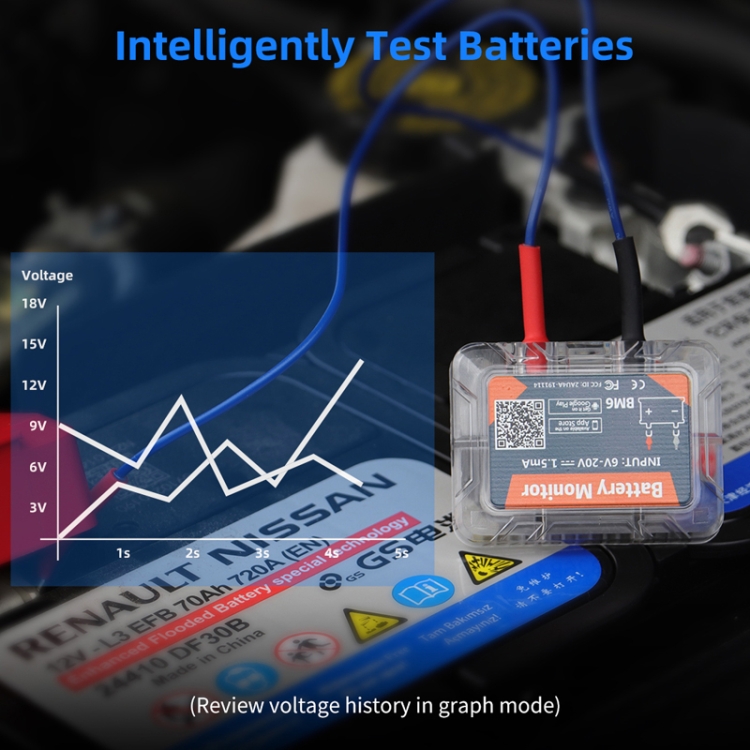

7. Graphical display of historical data
8. Automatic engine start detection
9. Supports multi-battery management
10. Car positioning function through Google Maps
11. Travel records including maps and routes
12. Wireless (bluetooth 4.0): 10 meters

Parameters:
1. Bluetooth version: 4.2
2. Bluetooth name:BM6
3. Input voltage:DC 6V-20V
4. Voltage accuracy (9V-16V): +/-0.03V
5. Operating temperature: 40-90 degrees celsius (-40-194 degrees fahrenheit)
6. Average operating current:1.5mA
7. Reverse connection protection: built-in
8. Short circuit protection: built-in
9. Waterproof: IP67
10. Overall dimensions: 55 x 41 x 12.5mm
11. Currently supported languages: English, Russian, German and Chinese

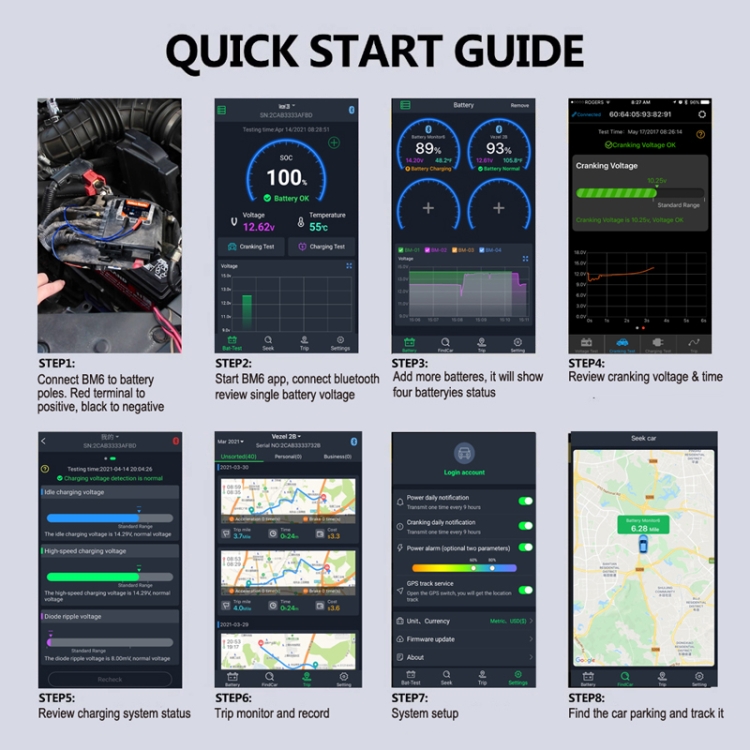

Notes on using the BM6:

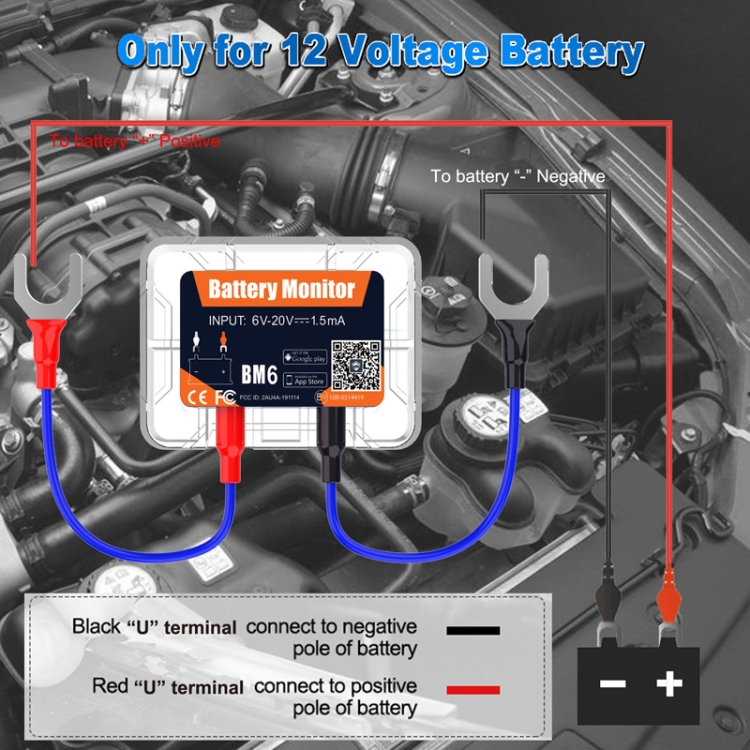

1. Install the device correctly (blinking blue)
2. Open the app and allow permissions
3. Click add device, wait for a few seconds, the attached device will be searched automatically (or manually enter the serial number pasted on the back of the product)
4. Select the device, click next, wait a few seconds, it will automatically connect to bluetooth (the whole process does not require a bluetooth connection password)
5. If the connection is successful, you can use the product normally (if the Bluetooth connection fails, please turn off Bluetooth and open the APP)
6. If the above problems can not be solved, please select the online customer service on the APP, we will have a customer service for you to answer questions online



1. 接收蓝牙范围内的电池状态通知
2. 发动机启动时自动检查车辆曲柄系统
3. 检查充电系统（交流发电机）列出每次驾驶的时间，当检测到异常数据时，提醒手机
4. 短路和反接保护
5. 在蓝牙范围内自动同步，如果不同步，数据存储在电池监视器中可达35天
6. 与所有12V汽车电池兼容
7. 以图形方式显示历史数据
8. 发动机自动启动检测
9. 支持多电池管理
10. 通过谷歌地图实现汽车定位功能
11. 旅行记录，包括地图和路线
12. 无线（蓝牙4.0）：10米

参数：
1. 蓝牙版本：4.2
2. 蓝牙名称：BM6
3. 输入电压：直流6V-20V
4. 电压精度（9V-16V）：+/-0.03V
5. 工作温度：40-90摄氏度（-40-194华氏度）
6. 平均工作电流：1.5mA
7. 反向连接保护：内置
8. 短路保护：内置
9. 防水：IP67
10. 外形尺寸：55 x 41 x 12.5mm
11. 目前支持的语言：英语、俄语、德语和中文

使用BM6注意事项：
1. 正确安装设备（蓝色闪烁）
2. 打开APP，允许权限
3. 单击添加设备，等待几秒钟，将自动搜索所附加的设备（或手动输入粘贴在产品背面的序列号）
4. 选择设备，单击下一步，等待几秒钟，它将自动连接蓝牙（整个过程不需要蓝牙连接密码）
5. 如果连接成功，则可以正常使用产品（如果蓝牙连接失败，请关闭蓝牙，打开APP）
6. 如果以上问题无法解决，请在APP上选择在线客服，我们会有客服为您在线答疑


代码：

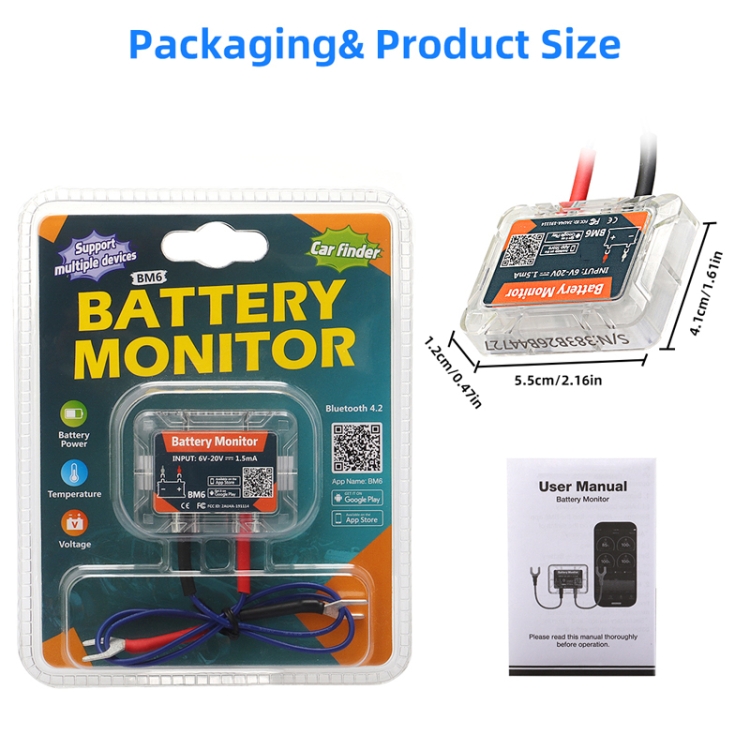

Specification:
Package weight
One package Weight 0.3kgs / 0.66lb
One Package Size 13.0cm * 9.0cm * 3.0cm / 5.12inch * 3.54inch * 1.18inch
Qty per Carton 130
Carton Weight 41kgs / 90.39lb
Carton Size 41cm * 38cm * 35cm / 16.14inch * 14.96inch * 13.78inch
