SKU:

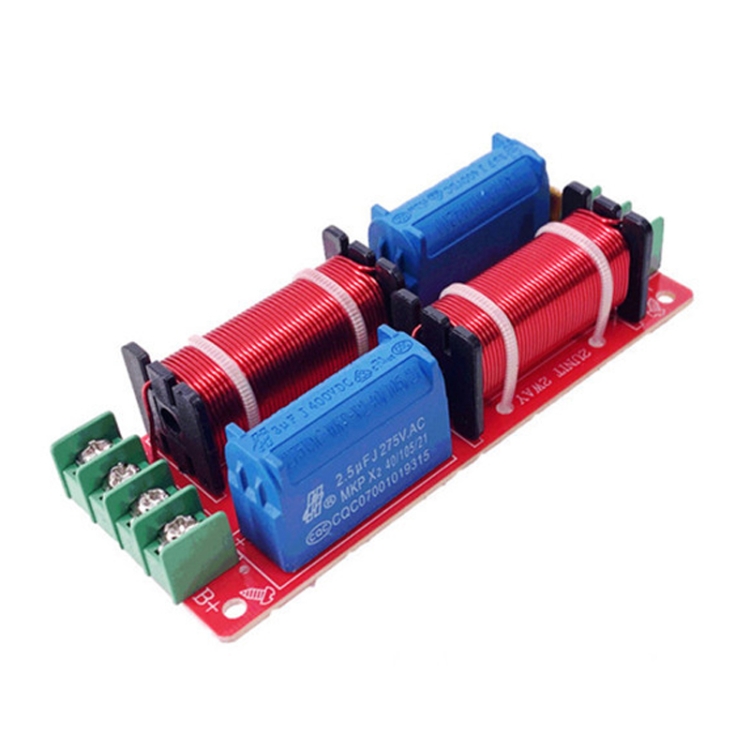

WEAH-2503 High and Low 2-way Speaker Crossover Hi-Fi Home Audio Solderless Divider(C Type Blue Capactior)
WEAH-2503 高低二路音箱分频器 高保真家用音响免焊式分音器（C款蓝色电容）
条码：6922563325719
HSCode：74198099
批量修改原始型号 		采购：Lijialiang  编辑：Randi  产品经理：Maura


1. Application: speaker high and low DIY
2. Power: 150W
3. Applicable impedance: 4-8 ohms

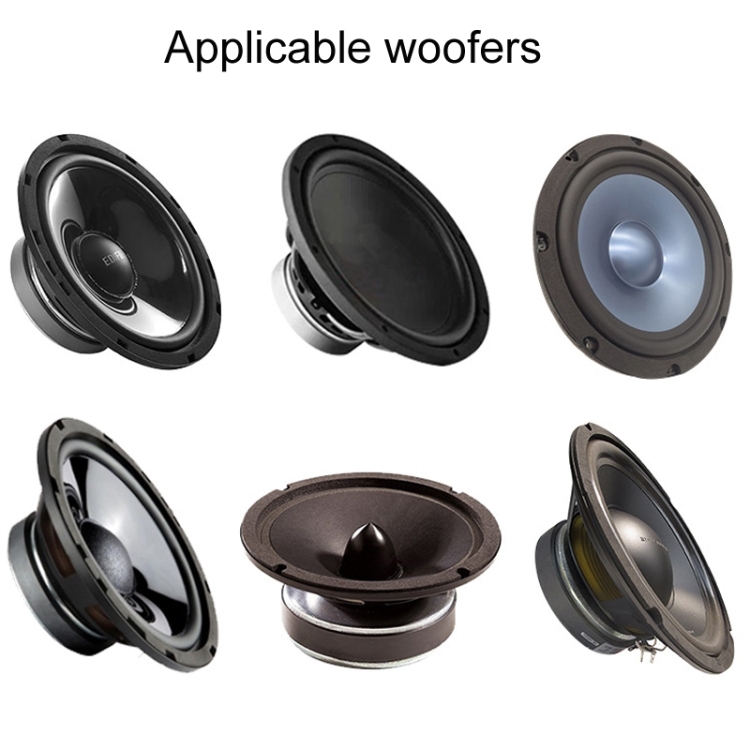

4. Applicable speaker: 5-8 inch
5. Crossover point: 2600Hz (yellow); 3000Hz (red/blue)

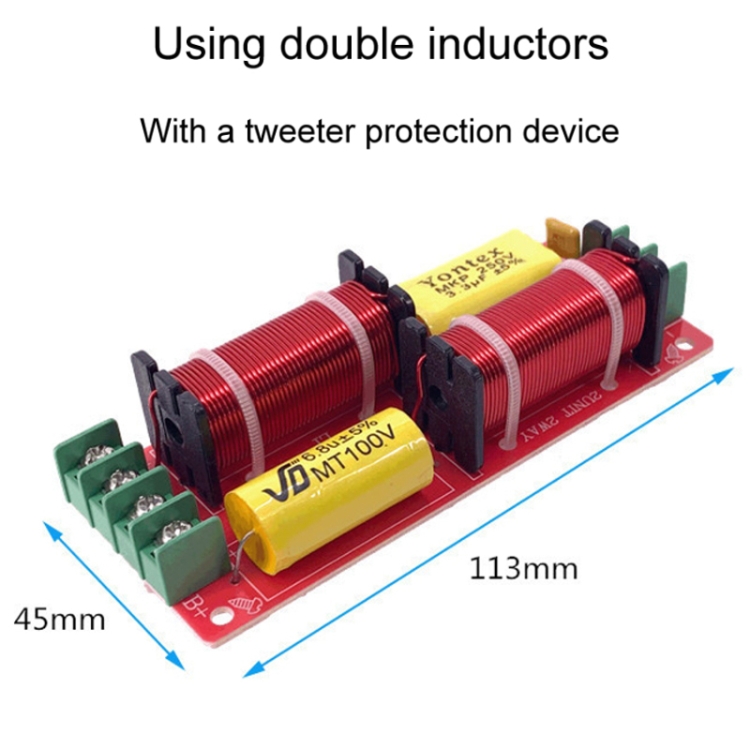

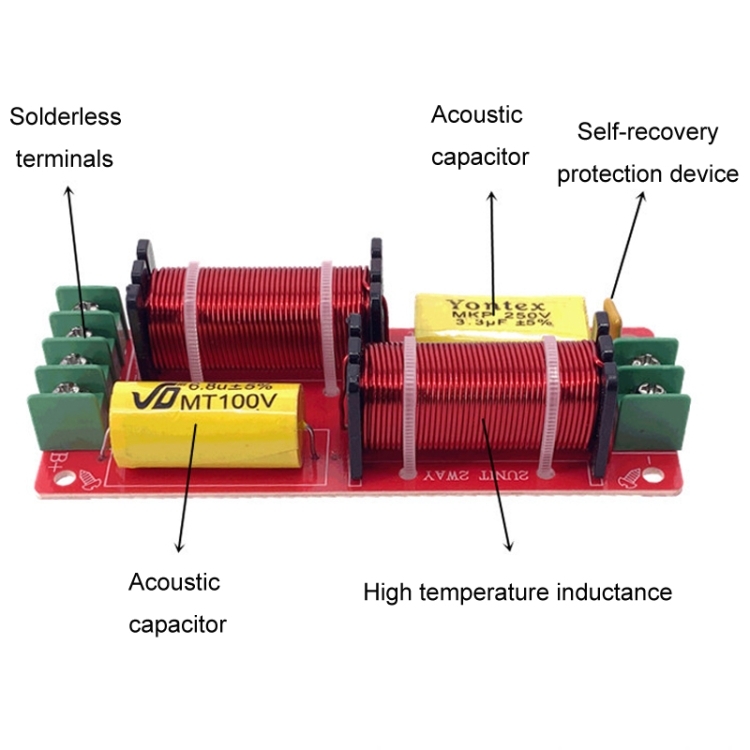

6. The use of dual inductance audio metal film capacitors, also has a treble protection device
7. Inductors fixed with double ties, effectively preventing common vibration

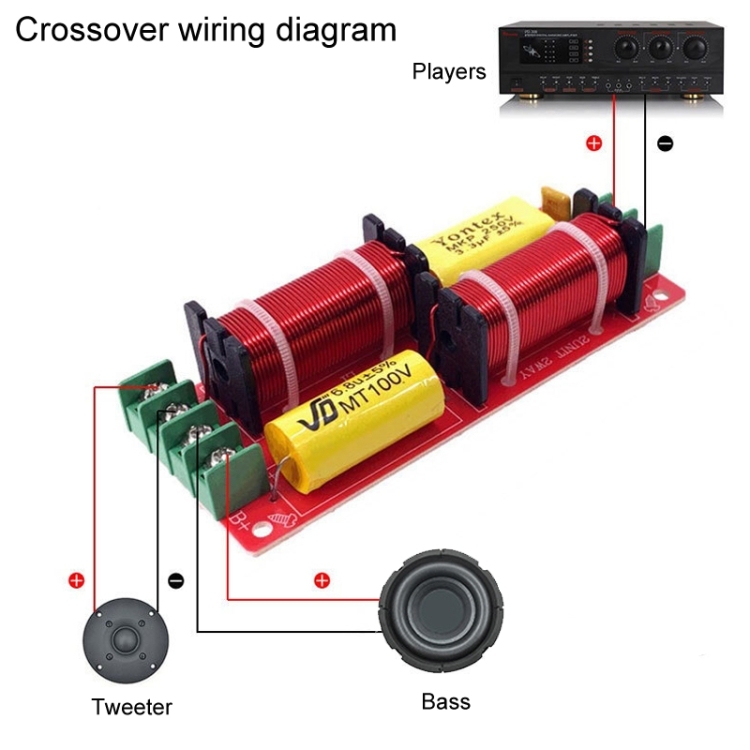

8. Wiring end product identification: IN input, T to the treble, B to the bass, black for the negative pole
9. Non-soldering terminals, very easy to use
10. Size: 113 x 45mm

1. 应用：音箱高低音DIY
2. 功率：150W
3. 适用阻抗：4-8欧
4. 适用喇叭：5-8寸
5. 分频点：2600Hz（黄色）；3000Hz（红色/蓝色）
6. 采用双电感音响金属膜电容，还设有高音保护装置
7. 电感采用双扎带固定，有效防止共震
8. 接线端品标识： IN输入、T接高音、B接低音，黑色为负极
9. 免焊式接线端子，使用非常方便
10. 尺寸：113 x 45mm
代码：

Specification:
Package weight
One package Weight 0.12kgs / 0.26lb
One Package Size 13.0cm * 6.0cm * 4.0cm / 5.12inch * 2.36inch * 1.57inch
Qty per Carton 140
Carton Weight 18kgs / 39.68lb
Carton Size 50cm * 38cm * 28cm / 19.69inch * 14.96inch * 11.02inch
