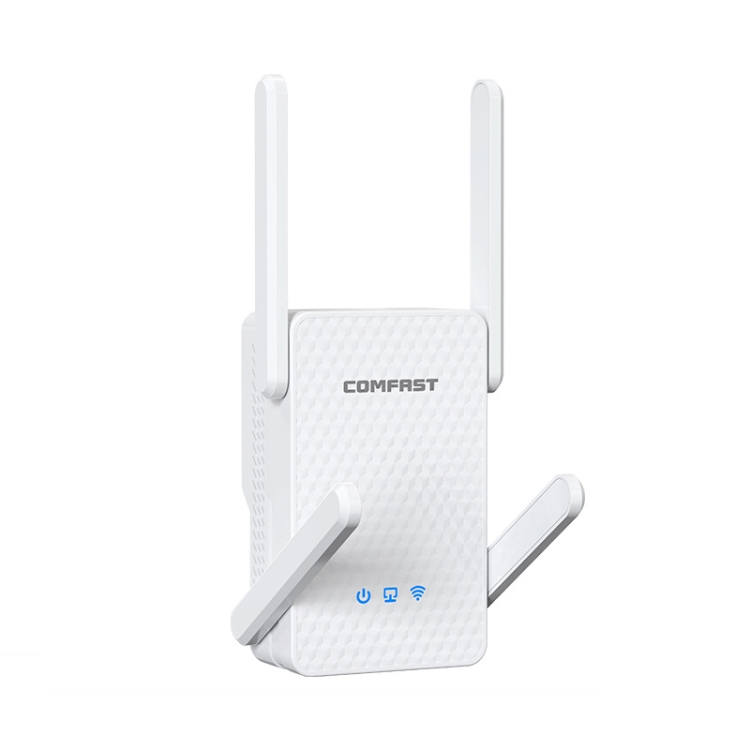

COMFAST CF-XR185 3000Mbps WiFi6 Dual Band Signal Amplifier Gigabit WAN/LAN Port EU Plug
COMFAST CF-XR185 3000Mbps WiFi6 双频信号放大器千兆WAN/LAN口 欧规
条码：6922836490156
HSCode：85177990
批量修改原始型号 		采购：Eva  编辑：Celery  产品经理：Maura

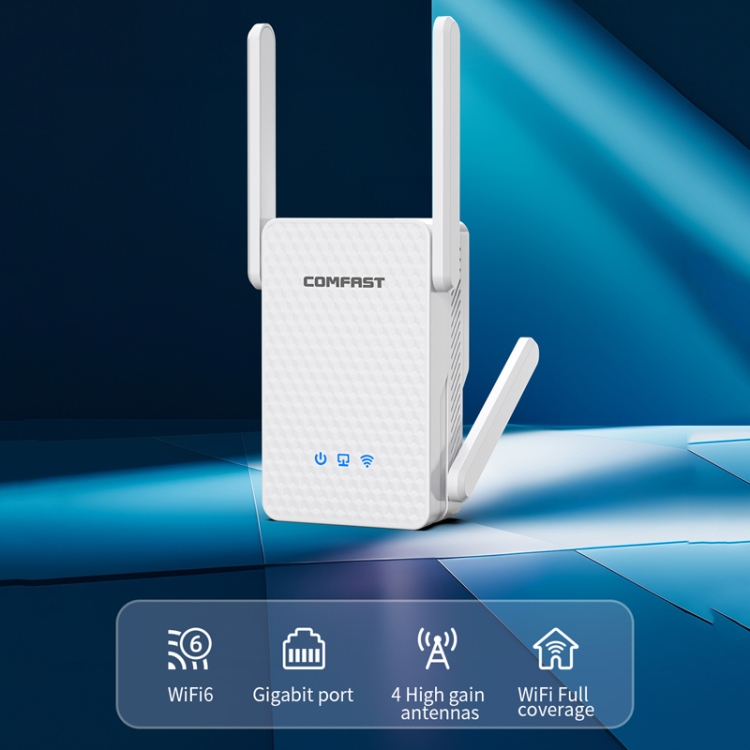

1. WiFi6 3000Mbps dual-band 4-antenna repeater, equipped with five FEM amplifier chips, to achieve WiFi full-house coverage

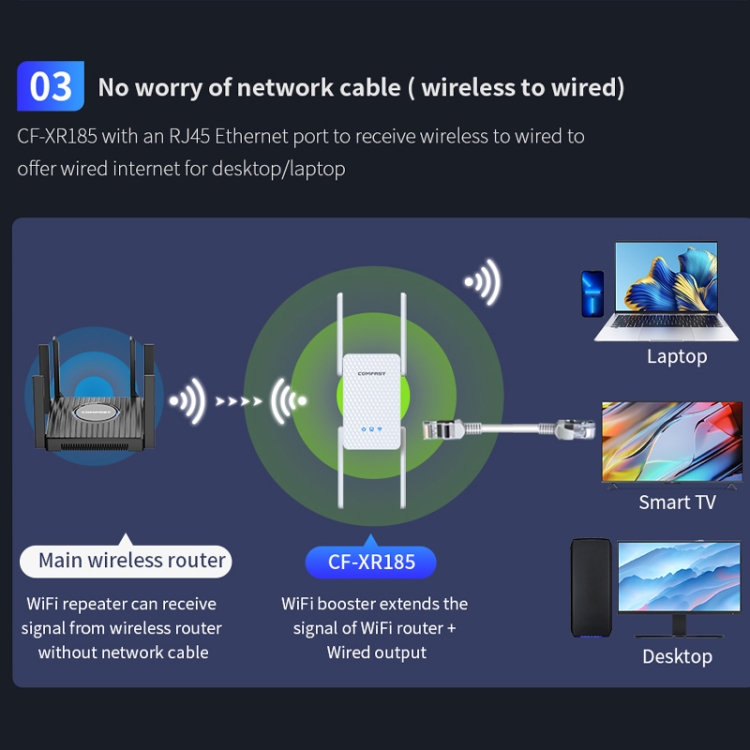

2. Supports wireless/wired connection methods, Gigabit port, more convenient expansion

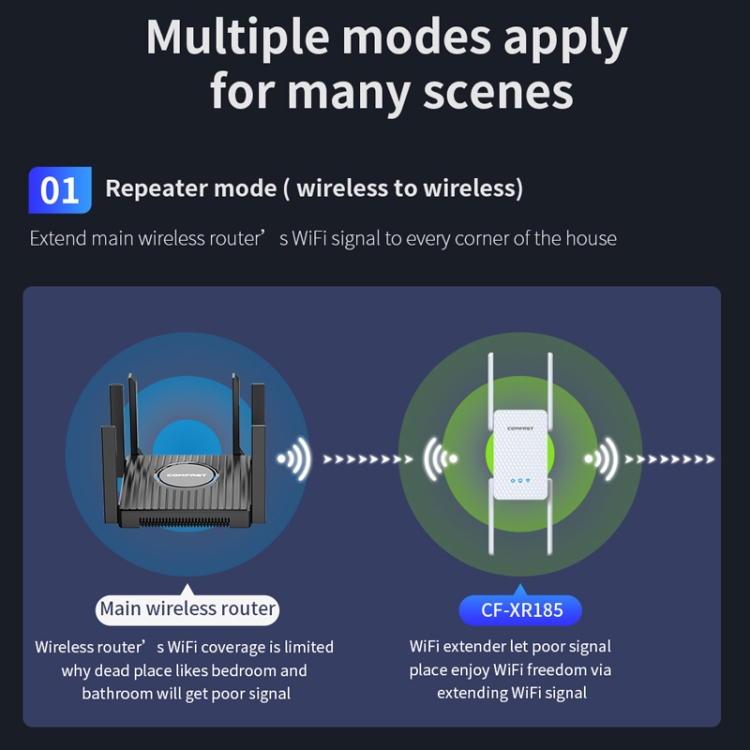

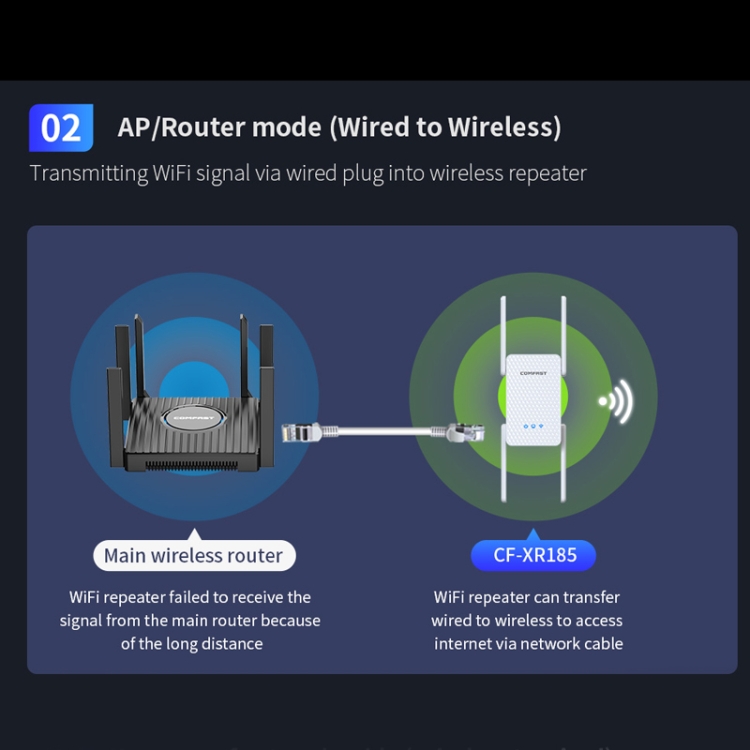

3. Supports AP/relay/router mode

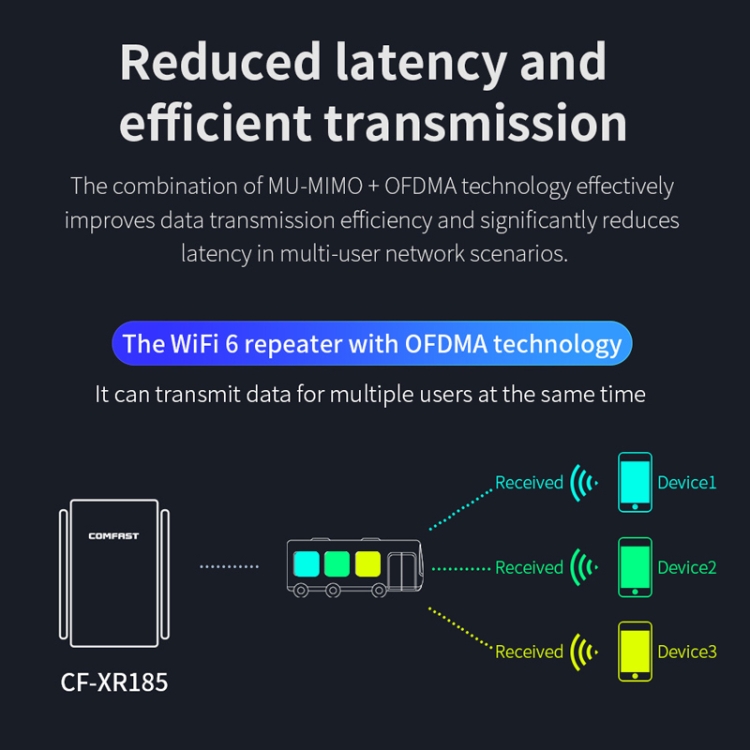

4. MU-MIMO+OFDMA technology, multi-device efficient transmission (this function requires the terminal device to support OFDMA, and must be used with a Wi-Fi6 router at the same time.)

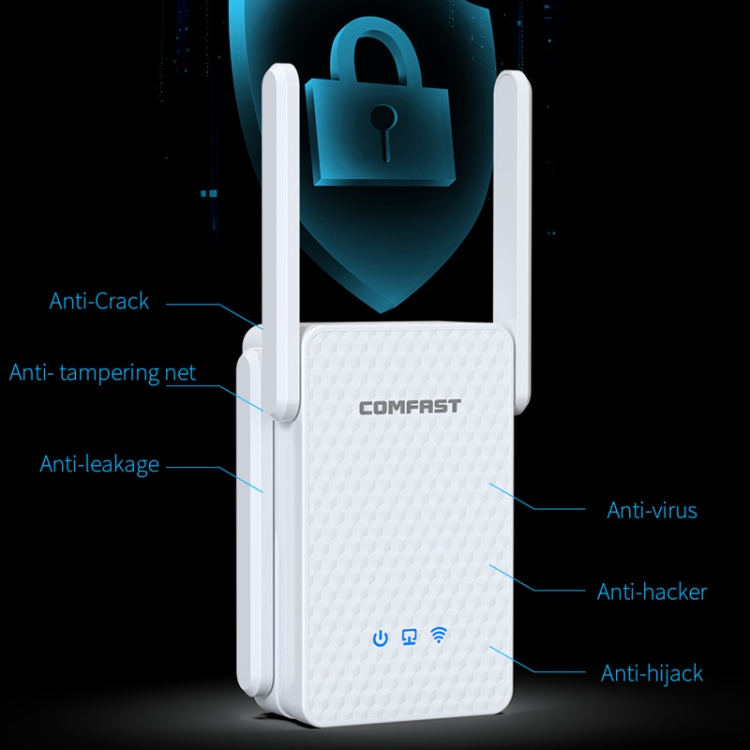

5. Supports WPA3 encryption protocol, multiple protections, more assured to use the network

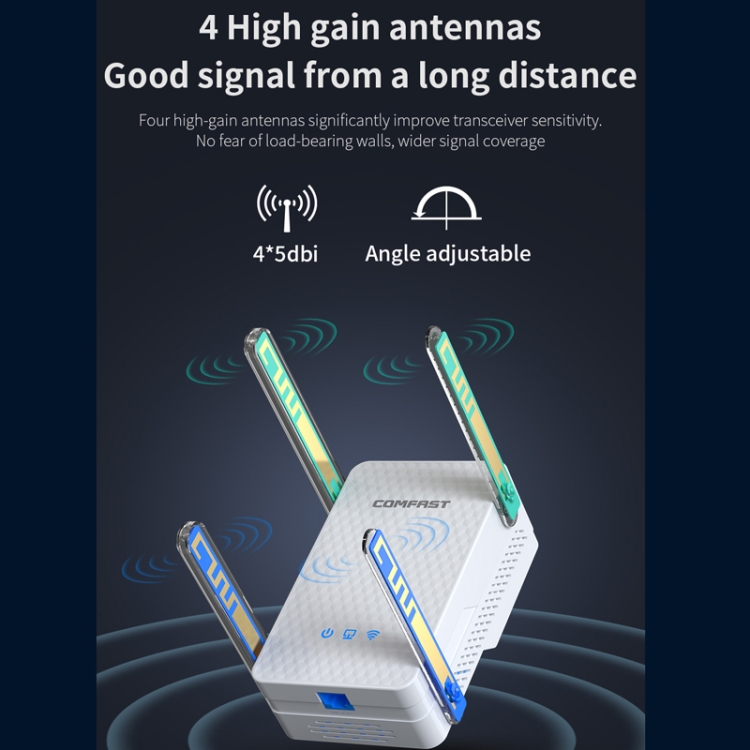

6. 4 external high-gain antennas, better wall penetration, wider coverage

Parameters:
1. Model: CF-XR186
2. Working frequency: 802.11b/g/n: 2.412GHz-2.472GHz; 802.11ax/ac/an/a: 5.180GHz_5.825GHz
3. Wireless standards: support IEEE802.11a/b/g/n/ac/ax standards

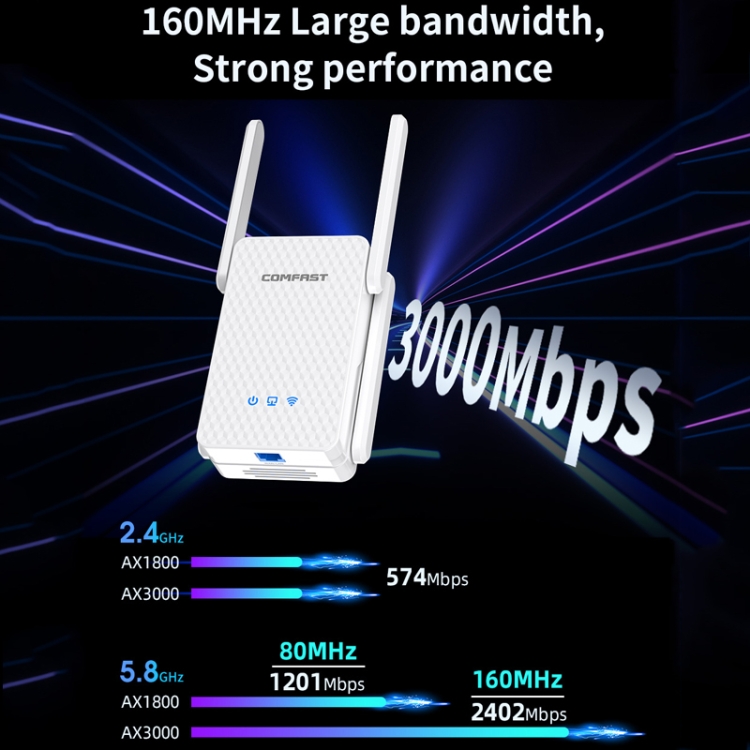

4. Transmission rate: 2.4GHz: 574Mbps; 5.8GHz: 2400Mbps

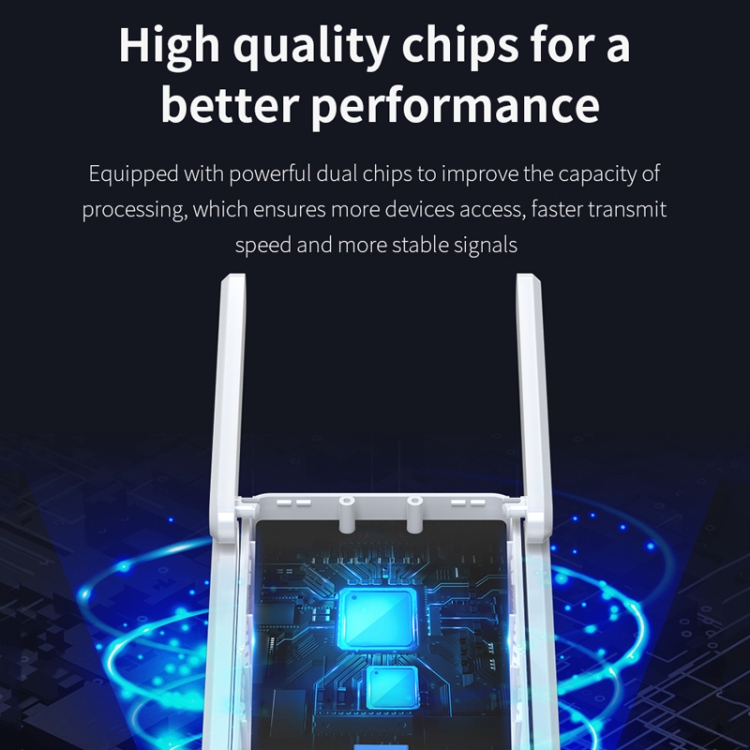

5. Hardware specifications: MT dual chip
6. Memory flash: Memory: 128MB; Flash: 16MB
7. Button: 1 WPS/RST button
8. Indicator light: power light, network port light, signal indicator light
9. Antenna gain: 4 x 3dBi external antennas
10. Power parameters: 100-240Vac
11. Maximum power consumption: 18W

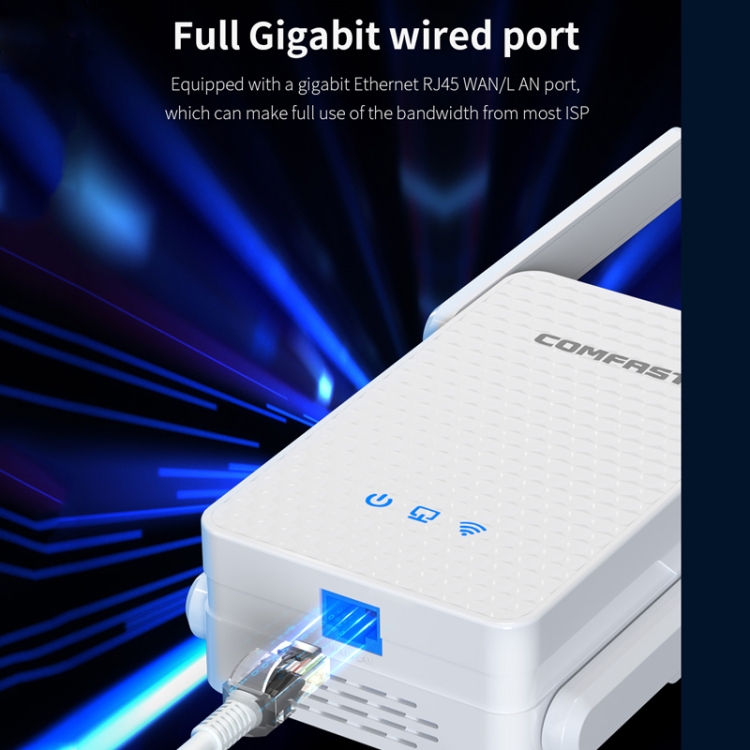

12. Physical interface: 1 10/100/1000Mbps RJ45 WAN/LAN Ethernet port
13. Working mode: AP/relay/router mode

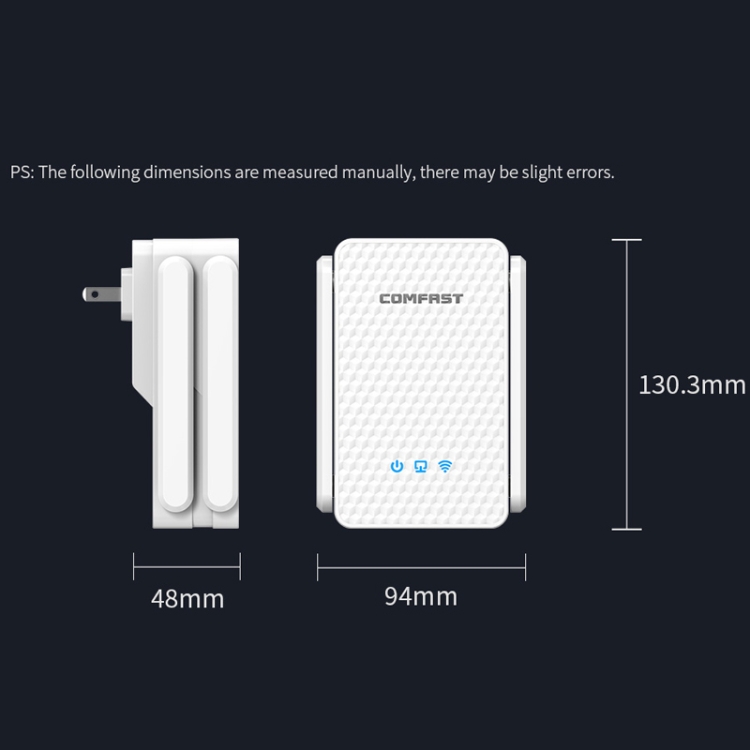

14. Product size: (width) 94mm (including antenna) x (thickness) 48mm x (height) 130.3mm (Purely measured manually, there may be errors)

1. WiFi6 3000Mbps双频4天线中继器，搭载五颗FEM功放芯片，实现WiFi全屋覆盖
2. 支持无线/有线两种连接方式，千兆端口，扩展更方便
3. 支持AP/中继/路由模式
4. MU-MIMO+OFDMA技术，多设备高效传输（此功能需要终端设备支持OFDMA，并且必须搭配Wi-Fi6路由器同时使用。）
5. 支持WPA3加密协议，多种保护，用网更放心
6. 外置4根高增益天线，穿墙更好，覆盖更广

参数：
1. 型号：CF-XR186
2. 工作频率：802.11b/g/n：2.412GHz-2.472GHz；802.11ax/ac/an/a:5.180GHz_5.825GHz
3. 无线标准：支持IEEE802.11a/b/g/n/ac/ax标准
4. 传输速率：2.4GHz: 574Mbps； 5.8GHz: 2400Mbps
5. 硬件规格：MT双芯片
6. 内存闪存：内存: 128MB；闪存: 16MB
7. 按钮：1个WPS/RST按钮
8. 指示灯：电源灯、网口灯、信号指示灯
9. 天线增益：4 x 3dBi外置天线
10. 电源参数：100-240Vac
11. 最大功耗：18W
12. 物理接口：1个10/100/1000Mbps RJ45 WAN/LAN以太网端口
13. 工作模式：AP/中继/路由模式
14. 产品尺寸：(宽) 94mm (含天线）x （厚) 48mm x (高) 130.3mm (纯手工测量，可能存在误差)
代码：

Specification:
Package weight
One package Weight 0.54kgs / 1.19lb
One Package Size 19.0cm * 16.0cm * 12.0cm / 7.48inch * 6.3inch * 4.72inch
Qty per Carton 20
Carton Weight 10.9kgs / 24.03lb
Carton Size 52cm * 38cm * 31cm / 20.47inch * 14.96inch * 12.2inch
