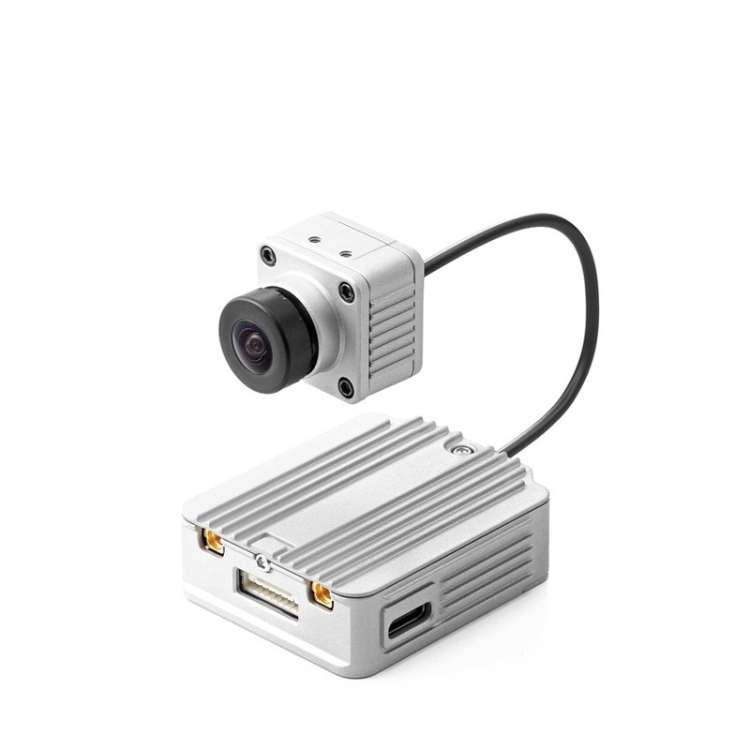

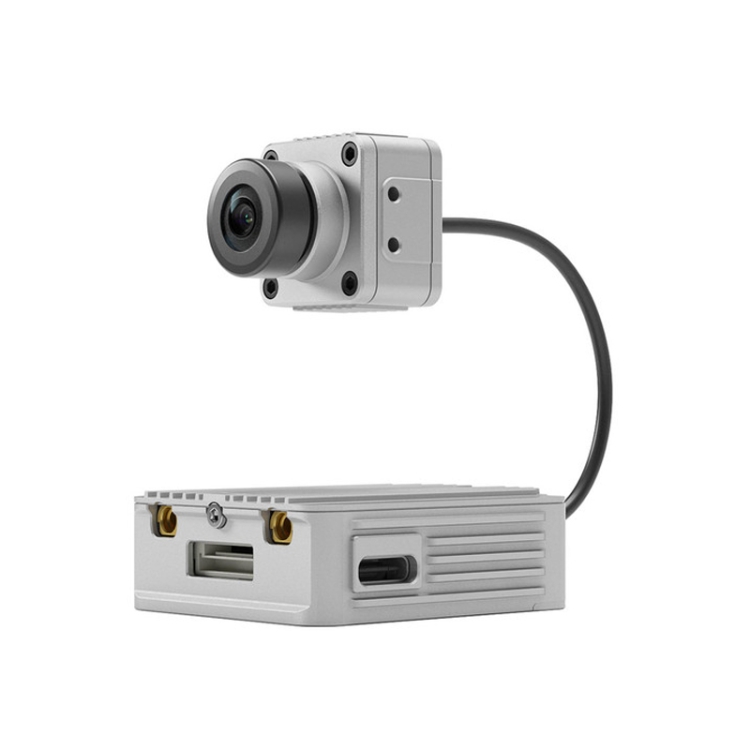

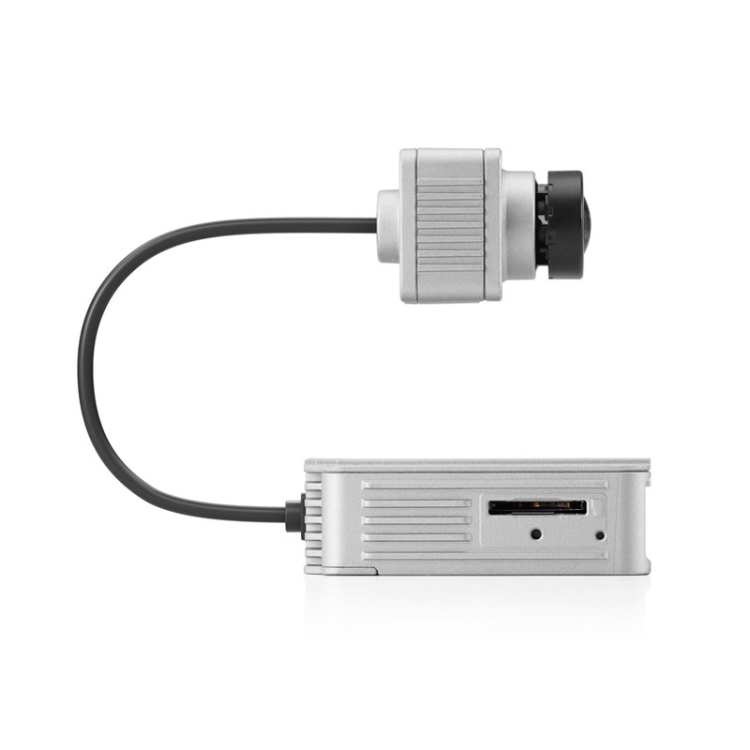

1. Overview
Ultra-low-latency high-definition digital image transmission, support for recording 1080p / 60fps video, and support 8 aircraft flying together
2. Tips
The sky end generates a lot of heat. Please do not directly touch the sky end without external heat dissipation; avoid using the sky end for a long time under high ambient temperature and no ventilation, otherwise it will enter a low power consumption mode if the temperature is too high. Performance will be affected. When installing the sky-end antenna, the two antennas should be separated as far as possible. The cylindrical parts of the two antenna ends should be separated by at least 40 mm to achieve the best communication effect. At the same time, try to stay away from metal and carbon fiber structure objects, and ensure that the antenna is not blocked during flight.

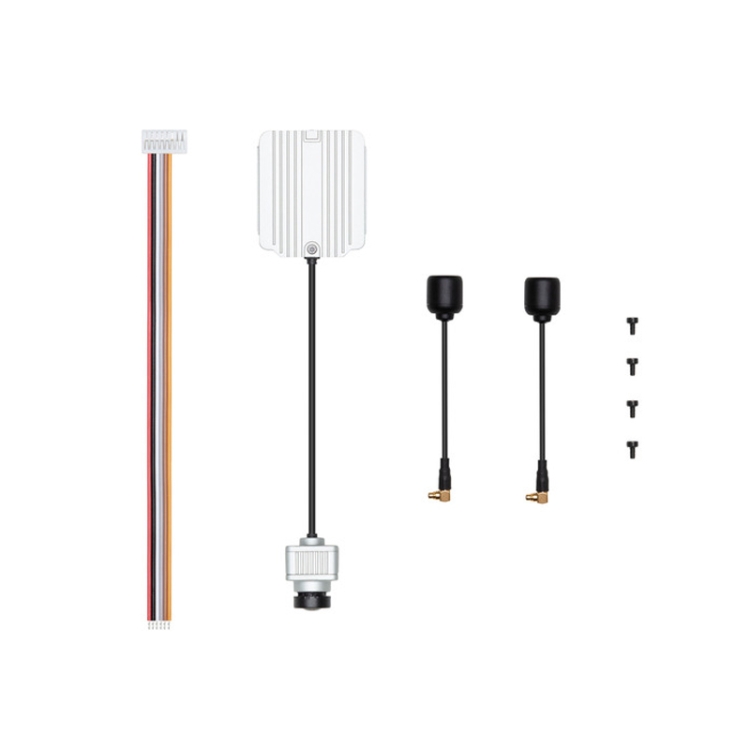

3. Packing list
Sky end (including camera and four M2.0 rack fixing screws) ?? 1
3-in-1 cable ?? 1
Antenna (MMCX elbow) ?? 2
4. Weight
Sky side (including camera): 45.8 g
Single MMCX elbow: 3.9 g
5. Dimensions
Sky module: 44 x 37.8 x 14.4 mm
Camera: 27.4 x 21.1 x 20.1 mm
Coaxial: 100 mm
Communication frequency: 5.725-5.850 GHz
Transmit power (EIRP): FCC / SRRC: <30 dBm; CE: <14 dBm
6. End-to-end minimum delay
Low latency mode (720p / 120fps): <28 ms
High quality mode (720p / 60fps): <40 ms
7. Maximum transmission distance: FCC / SRRC: <4 km; CE: <0.7 km
Video format: MP4 (Video format: H.264; Audio format: ACC-LC)
Interface: USB-C, MMCX, three-in-one cable, microSD card slot
Operating ambient temperature: 0 degree C to 40 degree C (32 degree F to 104 degree F)
Input power: 7.4 V-17.6 V, about 4-9 W
Image sensor: 1 / 3.2 inch CMOS, 4 million effective pixels
Lens: 2.1 mm, aperture f / 2.1
Shutter: rolling shutter
ISO: 100-25600
FOV: 150 degree (D); 122 degree (H); 93 degree (V)
Dimensions: 22.1 x 21.1 x 20.1 mm
Weight: 8.2 grams
Frequency information: supports up to 8 channels with a bandwidth of 20MHz, of which channel 8 is a public channel.
