1. Long-Distance HD Live Feed:Incorporates O3 Pro video transmission technology that offers an incredible 20,000ft transmission distance at 1080p/60fps. 2. Unlimited Number of Receivers:Broadcast mode allows an unlimited number of receivers, convenient for real-time monitoring by multiple teams for enhanced efficiency. 3. Triple-Band Seamless Auto Hopping:Supports triple-band automatic frequency hopping between 2.4 GHz, 5.8 GHz, and DFS for optimal wireless channel use. 4. End-to-End Ultra-Low Latency???Use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency. 5. Remote Gimbal/Focus/Camera Control:When used with Ronin 4D Hand Grips or Master Wheels, you can remotely control Ronin 2, RS 3 Pro, focus, and camera functions. 6. Independent Recording and Playback:1080p/60fps H.264 footage can be independently recorded and stored on a microSD card, making it easy to edit samples right on set.
Specification: 1. Weight: Image transmission transmitter is about 350 grams (excluding antenna) 2. Dimensions: 127 mm long, 87 mm wide, 26 mm high (excluding antenna) 3. Power consumption: 11W 4. Power supply voltage: 6-18V 5. Input audio format: SDI embedded, HD-MI embedded 6. Output audio format: PCM 7. Image transmission solution: O3 Pro 8. Image transmission delay: 70 milliseconds (measured under 1080p/60fps recording specifications.)

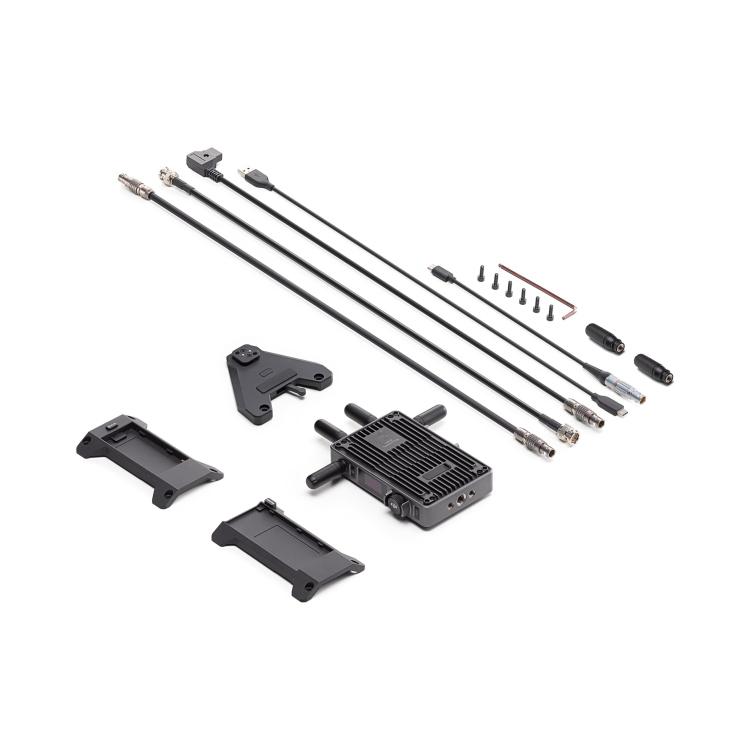

Packing list: Video transmitter x 1 WB37 battery adapter board (TX) x 1 NP-F battery adapter board x 1 Ronin image transmission antenna x 2 USB-C cable (40 cm) x 1 SDI cable x 1 DC power cord x 1 DC to P-TAP power supply cable x 1 USB-C image transmission cable x 1 RS pan/tilt mounting plate x 1 Installation tool kit x 1
中文描述： 1. 远距离高清画质：采用 O3 Pro 图传技术，拥有 6 公里传输距离，适用于多种复杂拍摄场景；具备 1080p/60fps 传输规格，且支持实时音频监听远距离高清画质 2. 无接收端数量限制：广播模式下无接收端数量限制，大型剧组的灯光、美术、化妆等各部门都可实时监看画面，拍摄效率大幅提升。 3. 三频段无感自动跳频：提供 2.4 GHz、5.8 GHz、DFS 三类频段，可自动检测当前电磁环境并选择优质无线信道，实现无感自动跳频。 4. 端到端超低延时：采用 Ronin 4D 同款芯片方案，画面传输的每一个环节均经过专门优化，实现端到端的超低延时顺滑体验。 5. 与 Ronin 4D 控制手柄、大师摇轮等设备组合时，可掌控 Ronin 2、RS 3 Pro、焦点与相机功能。与PRO 生态融会贯通，帮助团队高效流畅完成拍摄。 6. 可独立录制 1080p/60fps H.264 画面并存于 microSD 卡，为样片剪辑提供便利
