产品型号:
侵权图库 型号:TBD0604590601
大类别:In Car
第2级类别:Replacement Parts
-->子类别:Car Switches

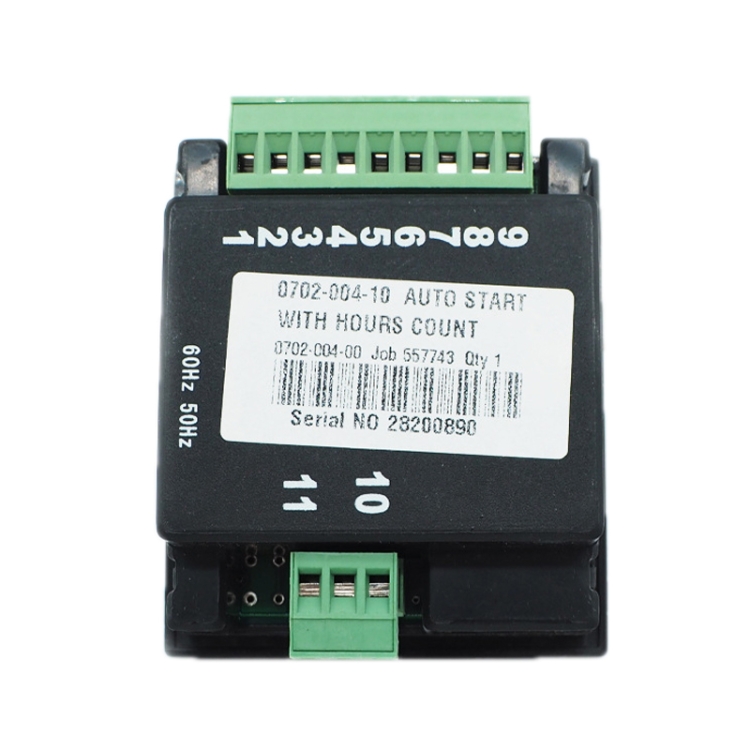

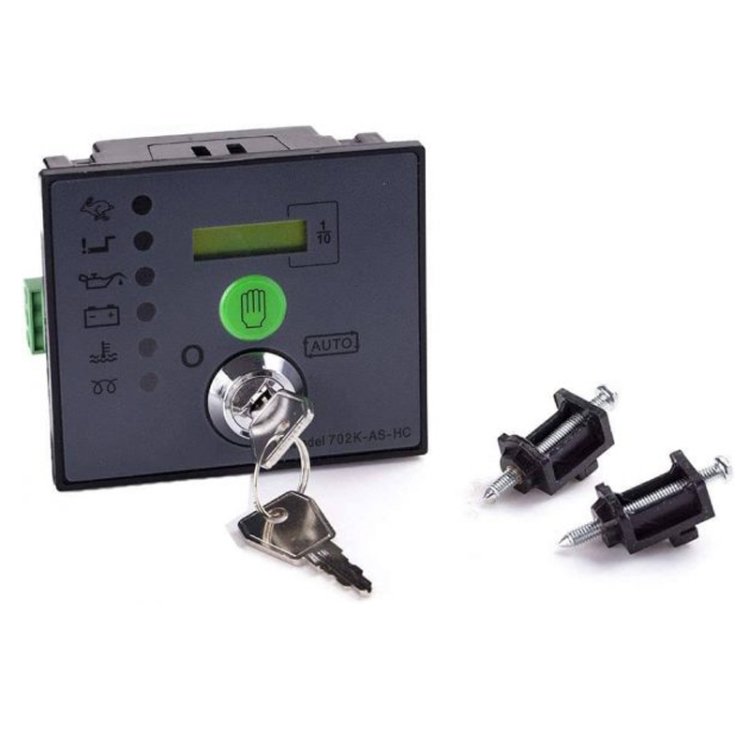

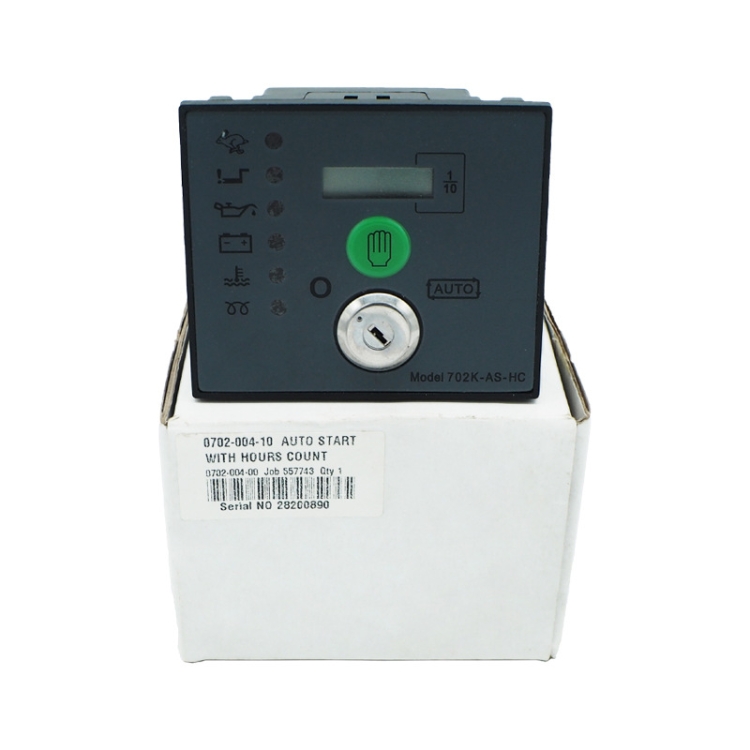

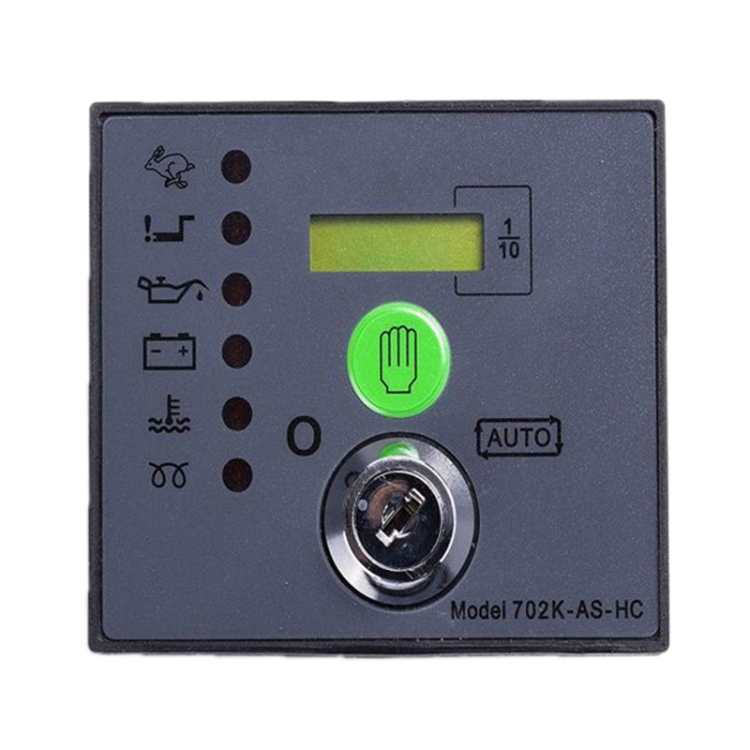

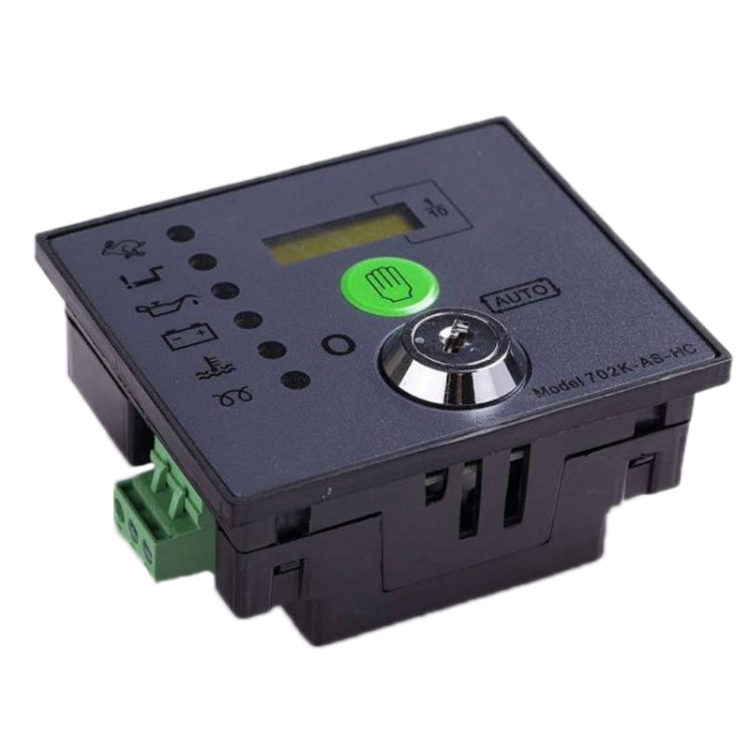

审核产品所有审核和提问(new)1688链接英文名称:DSE702K AS HC Deep Sea Diesel Generator Set Controller Panel 中文名称:DSE702K AS HC 深海柴油发电机组控制器面板
1. The DSE702 generator controller provides an excellent range of engine monitoring and protection functions 2. Generator manual start control provides input to monitor low oil pressure, high engine temperature and overspeed and the manual start version also has a user-defined auxiliary input 3. The auto-start version also includes input options for starting signals from a remote location When the generator manual control detects any of the above faults it will illuminate the warning LED on the front panel 4. The DSE702AS controller also has the ability to monitor battery charging using the WL terminal on the charging alternator and will light up the warning LED on the front panel when a battery charging failure is detected 5. Continuous rated voltage: 8V to 35V continuous 6. Voltage range: 15V ~ 33V ac (l-n) 7. Frequency range: 3.5 Hz ~ 75hz 8. Dimensions: 72x72x38mm excluding key switch 9. Panel thickness: 8 mm
