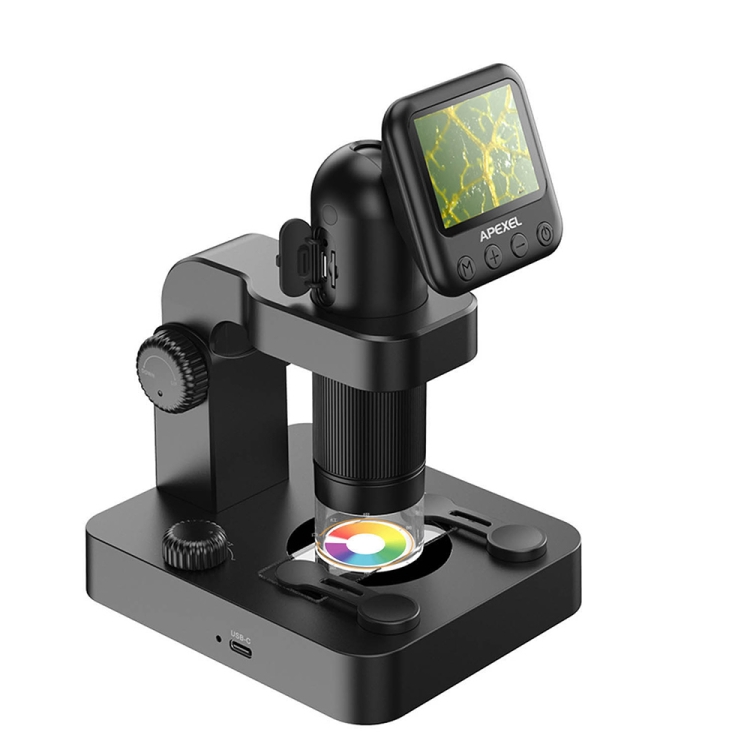

型号:MCP0362     大类别:Consumer Electronics     第2级类别:Magnifier & Microscope  -->子类别:Digital Microscope   审核产品   所有审核和提问(new)  链接英文名称:APEXEL MS003 Outdoor Portable HD Digital Microscope with Base
中文名称:APEXEL MS003 户外便携式高清数码显微镜带底座
颜色:
包装:Plastic Bag
配件:
装箱资料:
每箱:10pcs
重量:13.38kgs
外箱尺寸:76cm * 57cm * 32cm
采购:Kitty  编辑:Liangzhaoyun(2022-09-14)  美工:ganzhou_Ava

Features

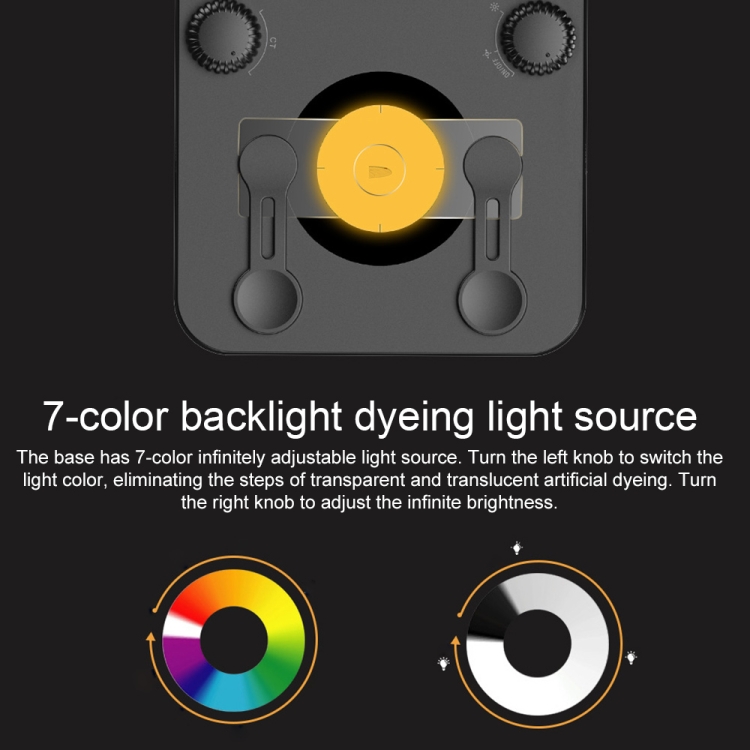

1. Comes with a screen and oblique lighting source (increasing the three-dimensional sense), and the screen orientation can be adjusted.
2. Has a larger magnification (20~100X).

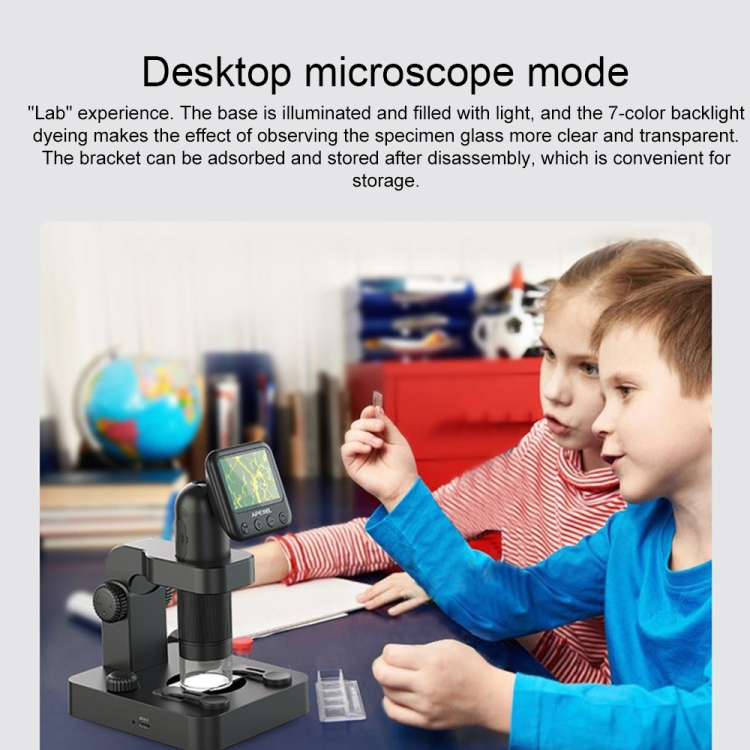

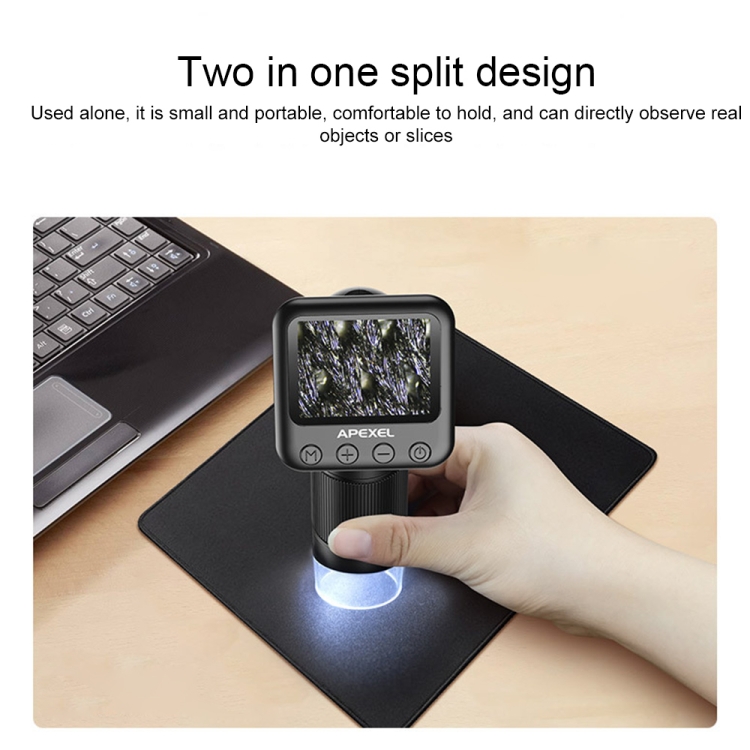

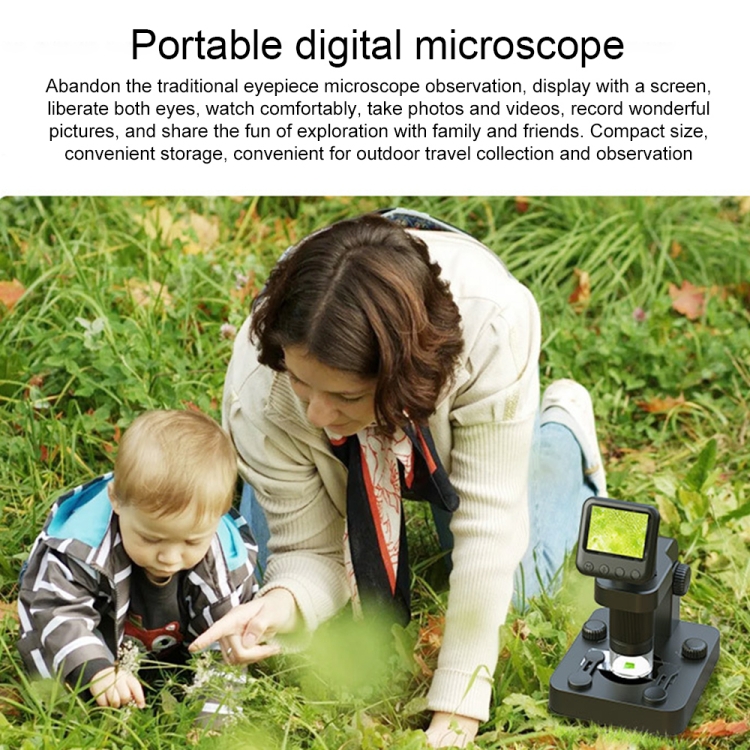

3. Portability (small size, can be used without a stand), can be used with a stand.
4. FHD high-definition, flat-field ED lens achromatic.
5. Simple and elegant appearance, built-in lithium battery, rich in functions.
6. Product material: ABS+PC

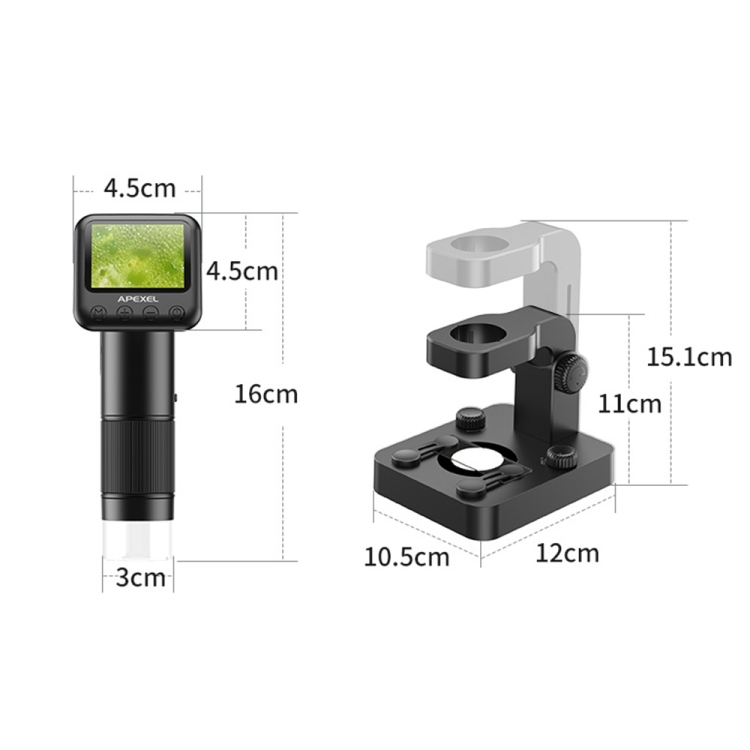

7. Microscope size: 58x58x160mm
8. The size of the base after adsorption: 150x135x60mm

Parameters
1. Digital zoom: 1X~5X
2. Continuous shooting mode: 1~5 shots
3. Cycle photography: 5-1800 seconds
4. Display brightness: adjustable
5. Object image multiple ratio: 2.5:6
6. With 2-inch screen magnification: 20-100X (5 times digital)
7. Structure: fixed focus
8. Coating: Multilayer
9. Field of view diameter: 2.5mm
10. Overall length: less than 68mm
11. Filter: AR anti-reflection 450~650nm bandpass
12. Focusing method: Manual
13. Focus range: -3~+5mm
14. Light source: SMD LED 3pcs
15. Color temperature: 6500K
16. Display: 2 inches 320x240
17. Auxiliary light source: white LED
18. Power supply mode: built-in 1 lithium battery 700mAh / 5V 0.5A Micro USB
19. Built-in battery turn on LED light time (default brightness): 2 hours
20. Storage: Support 32GTF memory card


packing list:
- MS003 Microscope
- Adjustable height stand
- Cloth bag storage box (including Type-C data cable, mirror cloth)
- Kit (includes: coverslips, slides, specimens, tweezers, petri dishes, collection bottles, collection boxes)
- manual


中文描述:
特点
1. 自带屏幕及斜照明光源(增加立体感),可调整屏幕方向。
2. 具有较大的放大倍数(20~100X)。
3. 便携性(尺寸小,无须支架也可使用), 可配支架使用。
4. FHD高清,平场ED镜片消色差。
5. 外观简洁大方,内置锂电池,功能丰富。
6. 产品材质:ABS+PC
7. 显微镜尺寸:58x58x160mm
8. 底座吸附后尺寸:150x135x60mm


参数
1. 数码变焦:1X~5X
2. 连拍模式:1~5张
3. 循环拍照:5-1800秒
4. 显示屏亮度:可调整
5. 物像倍数比:2.5:6
6. 配合2英寸屏幕放大倍数:20-100X(5倍数码)
7. 结构:定焦
8. 镀膜:多层
9. 视场直径:2.5mm
10. 总长:小于68mm
11. 滤光片:AR增透 450~650nm带通
12. 调焦方式:手动
13. 对焦范围: -3~+5mm
14. 光源:贴片LED 3颗
15. 色温:6500K
16. 显示屏:2寸 320x240
17. 辅助光源:白光LED
18. 供电方式:内置1节锂电池 700mAh / 5V 0.5A Micro USB
19. 内置电池开启LED灯时间(默认亮度):2小时
20. 存储:支持32GTF存储卡


包装清单:
- MS003显微镜
- 可调节高度支架
- 布包收纳盒(包括Type-C数据线,擦镜布)
- 工具盒(包括:盖玻片,载玻片,标本,镊子,培养皿,采集瓶,采集盒)
- 说明书



搜索关键词:Microscope,HD Electron Microscope,Portable Microscope

OEM/ODM are Welcome! we can make Customize design and print your logo
