型号：TBD06029751     大类别：Mobile Accessories     第2级类别：Cable & Charger  -->子类别：Wireless Charger Receiver   审核产品   所有审核和提问(new)  1688链接英文名称：RTL-SDR V3 4.5V 8-Bit Software Defined USB Radio Receiver
中文名称：RTL-SDR V3 4.5V 8-Bit 软件定义USB无线电接收器

颜色： 包装：Plastic Bag 配件：null 装箱资料： 每箱：500pcs 重量：29.0kgs 外箱尺寸：50cm * 50cm * 58cm 采购:Nicole  编辑:Teri(2022-11-08)  美工:Teri

给产品打分

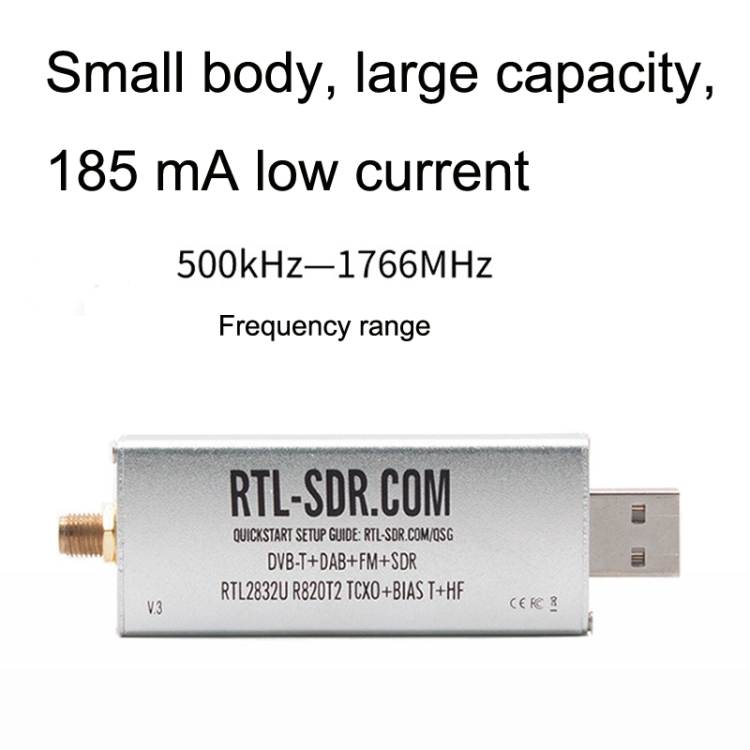

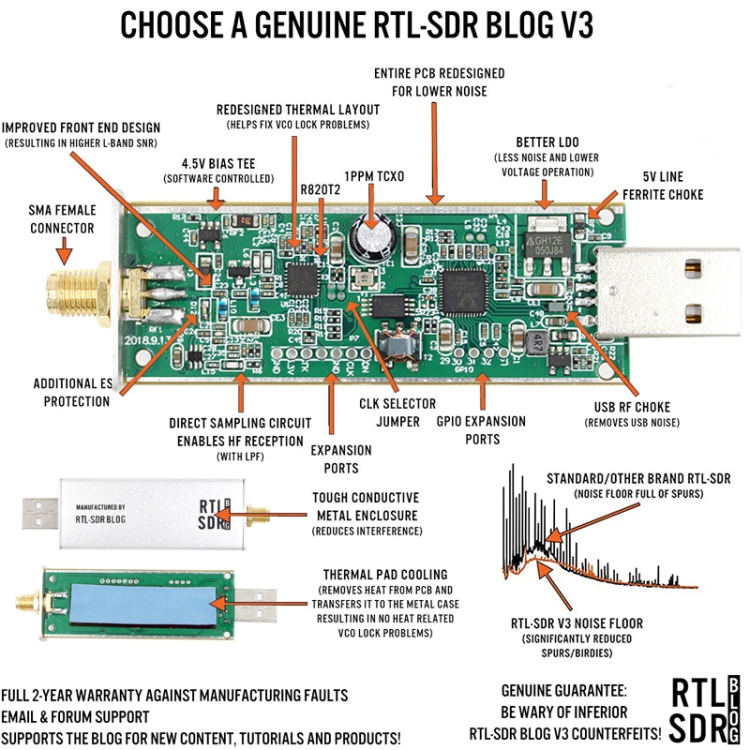

1. With RTL2832U ADC chip, R820T2 tuner, 1PPM TCXO, SMA F connector and aluminum housing with passive cooling

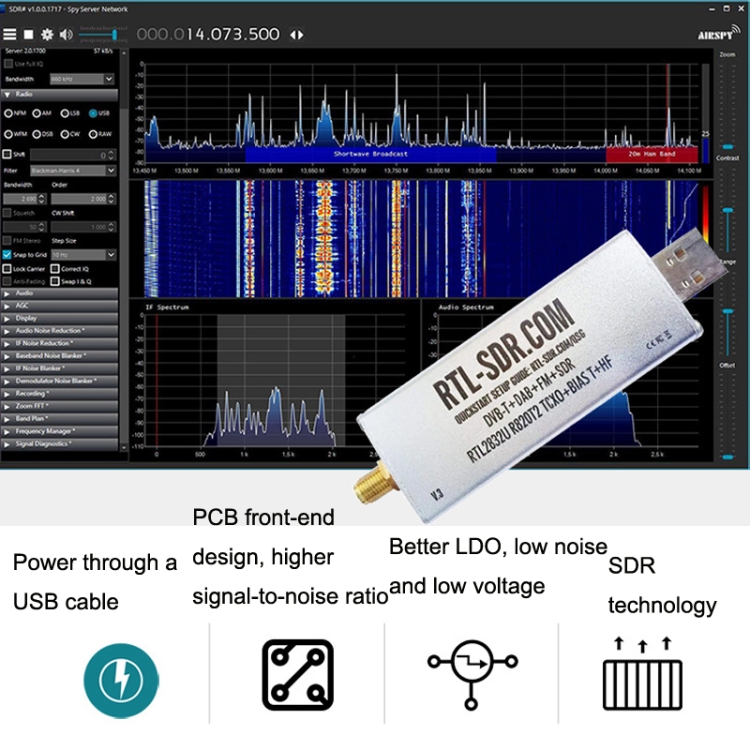

2. Suitable for use as a computer-based radio scanner, with free software such as SDR, HDSDR, SDR-radio, GQRX or SDR Touch on Android
3. For Windows / OSX / Linux / Android / Raspberry Pi Computer
4. The antenna is suitable for the 137mhz weather satellite and the International Space Station, and is used in the vertical configuration of ground signals
5. Suitable for many applications, these include general radio scanning, air traffic control, public safety, ADS-B Aircraft Radar, ACARS, trunking radios, p25mototrbo digital voice, POCSAG, weather balloons, APRS, NOAA Aptmeteor M2 Weather Satellite, radio astronomy, DAB or low-cost panadapter with ham radio
6. Better LDO, low noise and low voltage
7. Power through a USB cable
8. AD sampling bit: 8-bit
9. PCB front-end design, higher signal-to-noise ratio
10. Current: 185MA
11. Sample rate: 3.2 msps (2.56 msps stability)
12. Frequency range: 500 KHZ-1766 MHz
13. Size: 7 x 1.4 x 2.8CM
中文描述：

1. 带有RTL2832U ADC 芯片、R820T2 调谐器、1PPM TCXO、SMA F 连接器和带被动冷却功能的铝制外壳
2. 适合用作基于计算机的无线电扫描仪，带有 Android 上的 SDR、HDSDR、SDR-Radio、GQRX 或 SDR Touch 等免费软件
3. 适用于 Windows / OSX / Linux / Android / Raspberry Pi 等计算机
4. 该天线适用于 137 MHz 气象卫星和国际空间站；用于地面信号的垂直配置
5. 适合许多应用，包括一般无线电扫描、空中交通管制、公共安全、ADS-B 飞机雷达、ACARS、集群无线电、P25/MotoTRBO 数字语音、POCSAG、气象气球、APRS、NOAA APT/Meteor M2 气象卫星、射电天文学、DAB 或作为带有业余无线电的低成本 panadapter
6. 更好的LDO，低噪声低电压
7. 通过USB电缆供电
8. AD采样位数：8-bit
9. PCB前端设计，更高的信噪比
10. 电流：185MA
11. 采样率：3.2Msps（2.56Msps稳定值）
12. 频率范围：500KHz-1766 MHZ
13. 尺寸：7 x 1.4 x 2.8CM

搜索关键词：Radio Receivers, Wireless Receivers, Low Noise and Low Voltage

OEM/ODM are Welcome! we can make Customize design and print your logo
