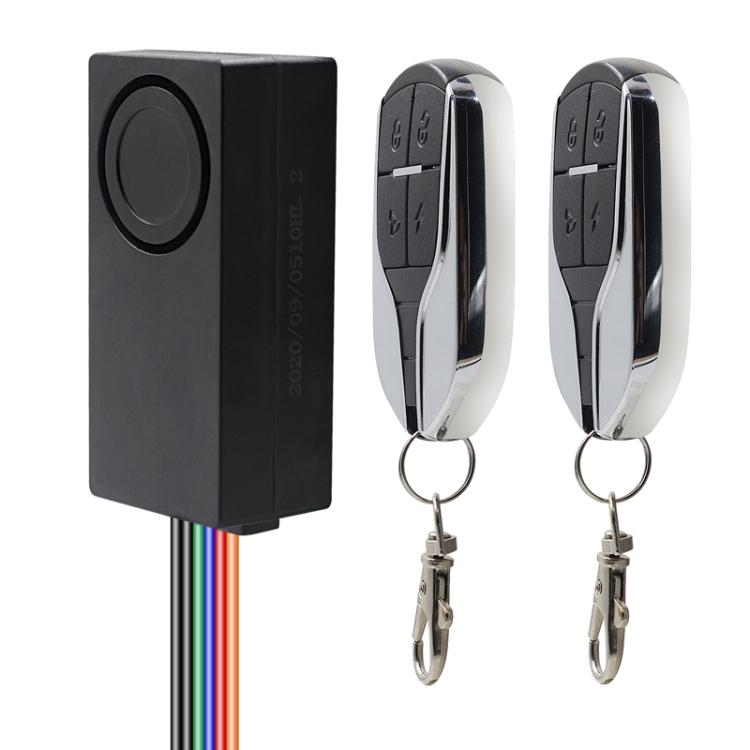

型号:TBD0604922601A     大类别:In Car     第2级类别:Motorcycle Accessories  -->子类别:Theft Protection   审核产品   所有审核和提问(new)  1688链接英文名称:Electric Vehicle Anti-theft Remote Alarm Keyless Quick Vehicle Search(48-72V)
中文名称:电动车防盗遥控报警器免钥匙快速寻车(48-72V)
颜色: 48-72V
包装:Plastic Bag
配件:null
装箱资料:
每箱:100pcs
重量:14.5kgs
外箱尺寸:61cm * 42cm * 42cm
采购:Felix  编辑:Leah(2024-07-04)  美工:Leah


1. Working voltage: 48V-72V
2. Working current: 80mA
3. Static current: 6mA
4. Working frequency: 433 MHZ

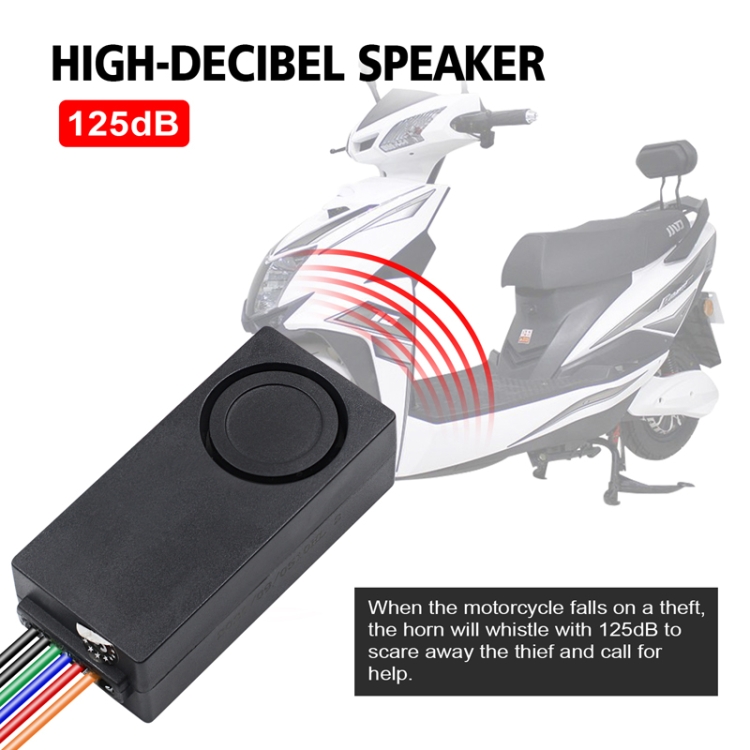

5. Horn sound level: 120~125db
6. Applicable models: electric vehicles (applicable to 48V-72V)
7. Net weight: 89g

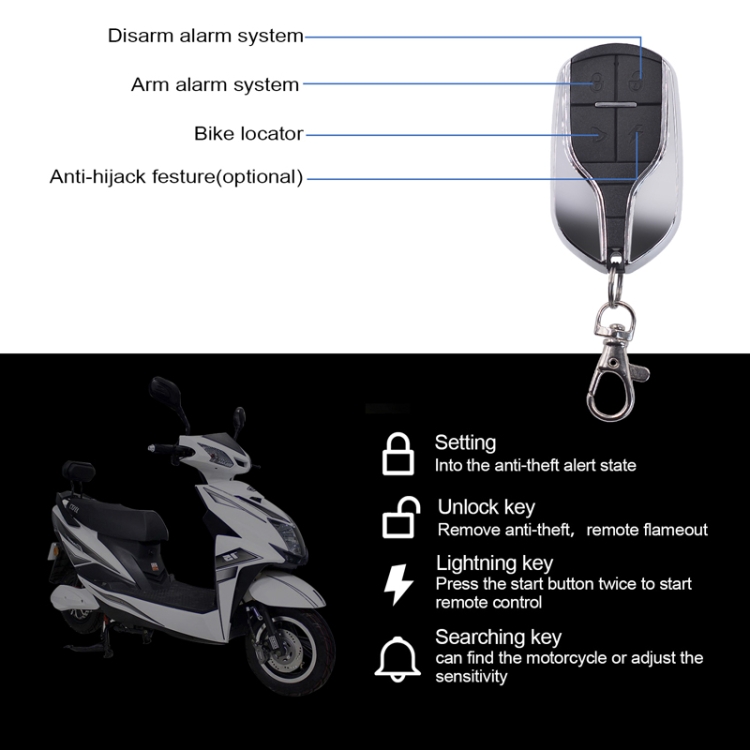

8. Set alarm and anti-theft: after parking and closing the electric door lock, press the "lock" button, the horn will sound once, indicating that the anti-theft alarm state has entered. When the car is pushed or vibrated, the horn will continue to shout for 15 seconds. At the same time, the anti-theft system will lock the motor, making it difficult for the thief to push the car away. Press the unlock button to release this state
9. Release the alarm state: press the unlock button once, the horn will sound twice, and the alarm will be released; press the unlock button when the locomotive is remotely started, the locomotive will immediately cut off the power, indicating that the engine is turned off successfully (Note: This function is invalid when starting with a key)
10. Remote start: press the lightning button twice in a row, the horn will sound once, indicating that the motorcycle will continue to run, and keyless driving is possible
11. Vehicle search function (three-button type does not have this function): in the anti-theft alarm state, press the bell button, the horn will sound 5 times, telling the owner the vehicle location, press any key to stop this state
12. Adjust sensitivity (three-button type does not have this function): when the motorcycle is turned off, press the bell button until the horn makes a short sound. One sound indicates that the sensitivity is level 1, two sounds indicate level 2, and so on, with a total of four levels of sensitivity
13. Anti-robbery function: if you encounter a robbery during driving, you can press the lock button within the effective remote control distance to strongly alarm the horn, and cooperate with the controller to lock the motor, and press the unlock button to release it
14. Overspeed reminder (this function is applicable to national standard vehicles): when the vehicle is running, when the vehicle speed exceeds 15 kilometers per hour, the alarm will sound to remind you

Special instructions:
1. When installing the host, please install it on the flat surface of the motorcycle as much as possible. The part where the host is pasted should be dry and dust-free (easy to paste double-sided tape), the wiring port should be facing the ground as much as possible, and the antenna should be straightened and suspended as much as possible (so as not to affect the receiving distance)
2. The speaker should be installed with the sound outlet slightly downward to prevent rain from seeping in
3. The remote control is precision-made, please do not drop it hard
4. When you find that the remote control distance becomes shorter or the indicator light becomes darker, please replace the battery
5. The anti-theft device increases the difficulty of theft, deters thieves and reminds the owner


中文描述:

1. 工作电压:48V-72V
2. 工作电流:80mA
3. 静态电流:6mA
4. 工作频率:433 MHZ
5. 喇叭声级:120~125db
6. 适用车型:电动车(48V-72V适用)
7. 净重:89g
8. 设定警戒防盗:停车关闭电门锁后,按“锁”键,喇叭响一声,表示进入防盗警戒状态,推动车子或受到振动时,喇叭会连续大叫15秒,同时防盗系统将电机抱死,使盗窃者很难把车推走,按解锁键解除此状态
9. 解除警戒状态:按一下解锁键,喇叭响两声,警戒解除;在机车遥控启动状态下按一下解锁键,机车会立即断电,表示熄火成功(注:用钥匙启动时该功能失效)
10. 遥控启动:连按两下闪电键,喇叭响一声,表示机车会一直运转,可做免钥匙驾驶
11. 寻车功能(三键式无此功能):防盗警戒状态,按铃铛键,喇叭响5声,告诉车主车辆位置,按任意键停止此状态
12. 调节灵敏度(三键式无此功能):机车熄火状态下,长按铃铛键直至喇叭出现短响声,响一声,表示灵敏度为1级,响两声为2级,依次类推,共分四级灵敏度
13. 防抢功能:行驶中遇悍匪强抢,可在有效遥控距离范围内按锁键喇叭强烈报警,并配合控制器锁死电机,按解锁键解除
14. 超速提醒(此功能适用于国标车):在车辆运行中,当车辆 速度超过15公里每小时,报警器会发出声音进行提醒

特别说明:
1. 安装主机时,请尽量使主机安装在机车的平面位置,粘贴主机的部位应干燥且无灰尘(易于粘贴双面胶),接线口方向尽量朝向地面,天线应尽量拉直悬空(以免影响接收距离)
2. 喇叭安装须把发声口稍微朝下,避免雨水渗入
3. 遥控器精密制造,请勿重摔
4. 当发现遥控距离变短或指示灯变暗时,请更换电池
5. 防盗器起增加偷盗难度、阻吓窃贼和提醒车主的作用



搜索关键词:Burglar Alarm, Remote Door Lock, Electric Door Locks, Keyless Door Lock, Wireless Motorcycle Alarm

OEM/ODM are Welcome! we can make Customize design and print your logo
