型号：TBD06060694     大类别：Consumer Electronics     第2级类别：Electronics Module  -->子类别：Other Accessories   审核产品   所有审核和提问(new)  1688链接英文名称：Waveshare SIMCom SIM7600G-H-PCIE 4G LTE Cat-4 Module, Global Coverage, GNSS, Mini-PCIe Connector
中文名称：微雪 SIMCom SIM7600G-H-PCIE 4G LTE Cat-4模组GNSS 全球定位无线通讯模块Mini-PCIe接口
颜色：
包装：Plastic Bag
配件：
装箱资料：
每箱：64pcs
重量：10.7kgs
外箱尺寸：42cm * 34cm * 34cm
采购:Cary  编辑:Celery(2026-04-24)


1. The SIM7600G-H-PCIE series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

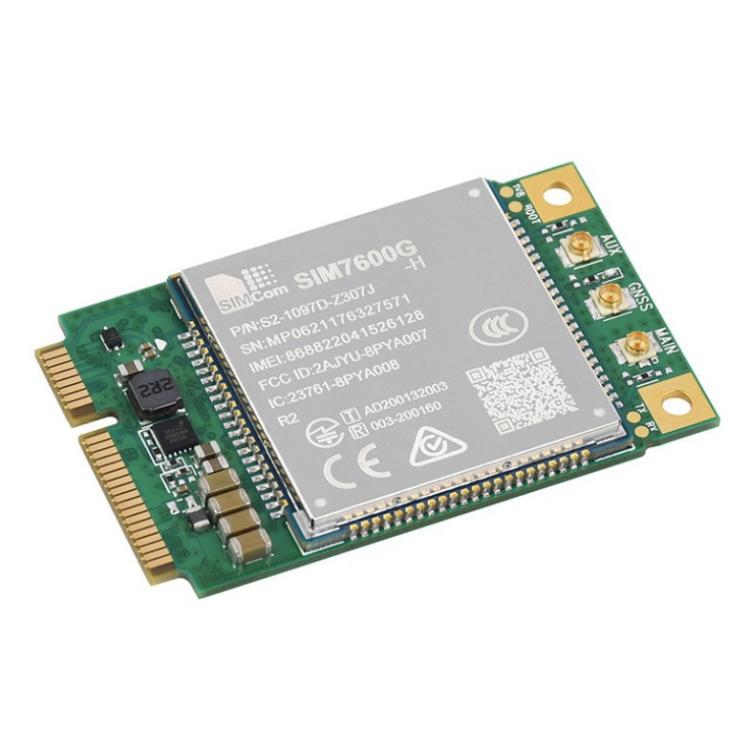

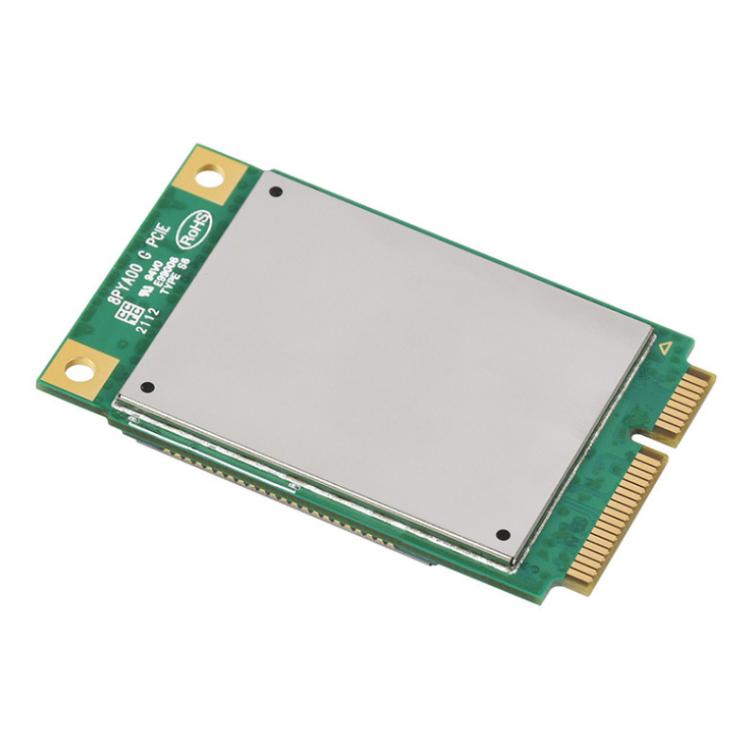

2. The SIM7600G-H-PCIE series adopts mini PCIE form factor and consists of a SIM7600-H series module and a mini PCIE adapter board. It is easy for customers to integrate. The SIM7600G-H-PCIE series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.
3. Mean while the SIM7600G-H-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.

Operating Bands:
LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD: B34, B38, B39, B40, B41
WCDMA: B1, B2, B4, B5, B6, B8, B19
GSM: 850, 900, 1800, 1900 MHz
GNSS: GPS, BeiDou, GLONASS, Galileo, QZSS

Data Transmission:
LTE: 150 Mbps (DL) / 50 Mbps (UL)
HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
WCDMA: 384 Kbps (DL) / 384 Kbps (UL)
EDGE: 236.8 Kbps (DL) / 236.8 Kbps (UL)
GPRS: 85.6 Kbps (DL) / 85.6 Kbps (UL)

Software Features:
Operating System: Windows/Linux/Android
Communication Protocols: TCP, IP, IPv4, IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS
SMS: Supports MT, MO, CB, Text, PDU
Firmware Upgrade: Supports firmware upgrades via USB/FOTA interfaces

Hardware Specifications:
SIM Card: 1.8V/3.0V
Antenna Interface: IPEX Gen 1 (LTE Main Antenna + LTE Diversity Antenna + GNSS Antenna)
Supply Voltage: 3V ~ 3.6V
Form Factor: Mini-PCIe

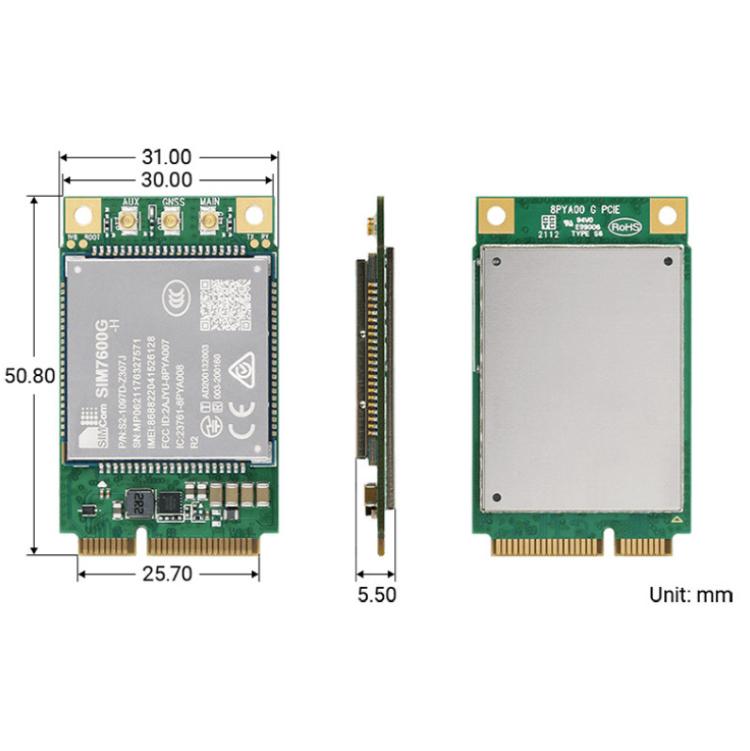

Dimensions: 50.8 × 31.0 × 5.5 mm
中文描述：

1. SIM7600G-H-PCIE 是款 LTE Cat 4 模块，支持 LTE-TDD，LTE-FDD，HSPA+，GSM，GPRS，EDGE 等无线通信模式，支持 150Mbps(Max) 下行速率和 50Mbps(Max) 上行速率。
2. SIM7600G-H-PCIE 采用 Mini-PCIe 外形规格，由 SIM7600G-H 模块和 Mini-PCIe 转接板组成，非常易于集成。SIM7600G-H-PCIE 系列集成了多个卫星高精度定位 GNSS 系统，内置多种网络协议，支持主流操作系统的驱动（Windows、Linux、Android 等的 USB 驱动）和软件功能，AT 指令与 SIM7500/SIM7600 系列模块兼容。
3. SIM7600G-H-PCIE 系列同时集成了主流的工业标准接口，具有强大的扩展性，包括丰富的 UART、USB、GPIO 等接口，适用于远程信息处理、监控设备、CPE、工业路由器和远程诊断等主流物联网应用

工作频段：
LTE-FDD：B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD：B34, B38, B39, B40, B41
WCDMA：B1, B2, B4, B5, B6, B8, B19
GSM：850, 900, 1800, 1900MHz
GNSS：GPS、Beidou、GLONASS、GALILEO、QZSS

数据传输：
LTE：150 Mbps (DL) / 50 Mbps (UL)
HSPA+：42 Mbps (DL) / 5.76 Mbps (UL)
WCDMA：384 Kbps (DL) / 384 Kbps (UL)
EDGE：236.8 Kbps (DL) / 236.8 Kbps (UL)
GPRS：85.6 Kbps (DL) / 85.6 Kbps (UL)

软件功能：
操作系统：Windows/Linux/Android
通信协议：TCP, IP, IPV4, IPV6, 多 PDP, FTP, FTPS, HTTP, HTTPS, DNS
短信(SMS)：支持 MT、MO、CB、Text、PDU
固件升级：支持通过 USB/FOTA 接口进行固件升级

硬件说明：
SIM卡：1.8V/3.0V
天线接口：IPEX 1 代接口 (LTE 主天线 + LTE 分集天线 + GNSS 天线)
供电电压：3V ~ 3.6V
外形封装：Mini-PCIe
产品尺寸：50.8 × 31.0 × 5.5mm
