型号：TBD0606844702     大类别：Security     第2级类别：Video Recorder  -->子类别：Digital Video Recorder   审核产品   所有审核和提问(new)  1688链接英文名称：8CH Wireless NVR System For Security Cameras 5MP/3MP WiFi Network Video Recorder Support 2.5-Inch HDD & TF Card EU Plug
中文名称：8路无线监控录像机 NVR 500万/300万像素 WiFi 摄像机支持 2.5英寸硬盘及 TF卡 欧规

颜色： 包装：Plastic Bag 配件：null 装箱资料： 每箱：20pcs 重量：11.1kgs 外箱尺寸：34cm * 47cm * 32cm 采购:Lijialiang  编辑:Celery(2026-05-14)  美工:Celery

给产品打分

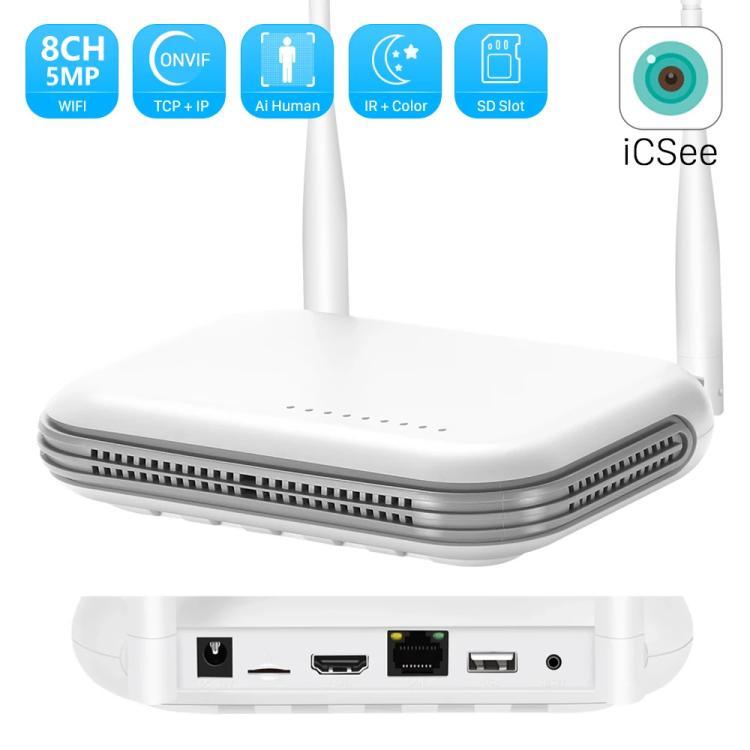

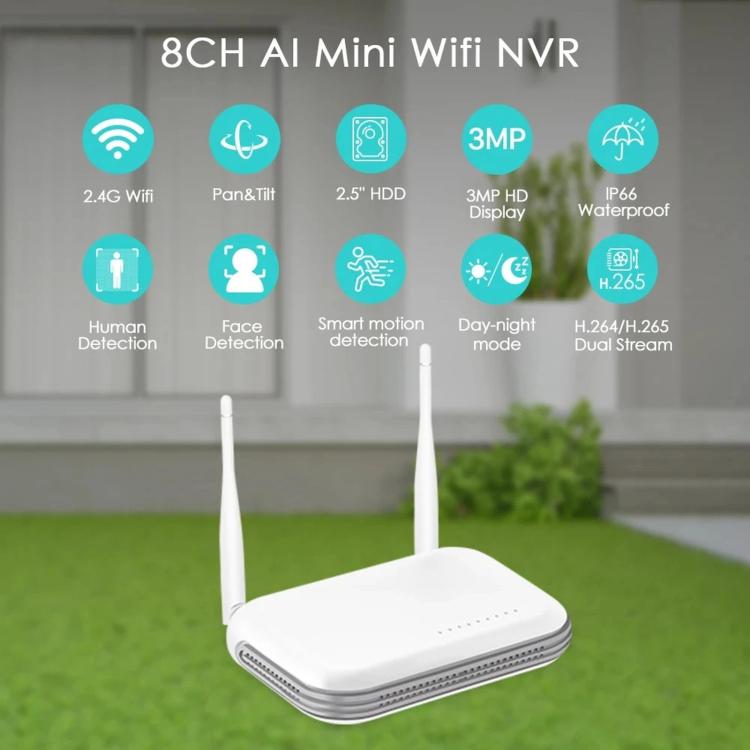

1. Upgrade your home or business security with this 8-Channel Wireless NVR. Designed for efficiency and reliability, this compact recorder is powered by the Hi3536E processor and supports high-definition video input up to 5MP. Whether you prefer a hard drive or a TF card for storage, this device has you covered with its dual-interface design. Its sleek, white, dual-antenna body ensures a stable wireless connection even through walls, making it an ideal hub for your WiFi camera system. Note: This is an NVR only; cameras and HDD are sold separately.

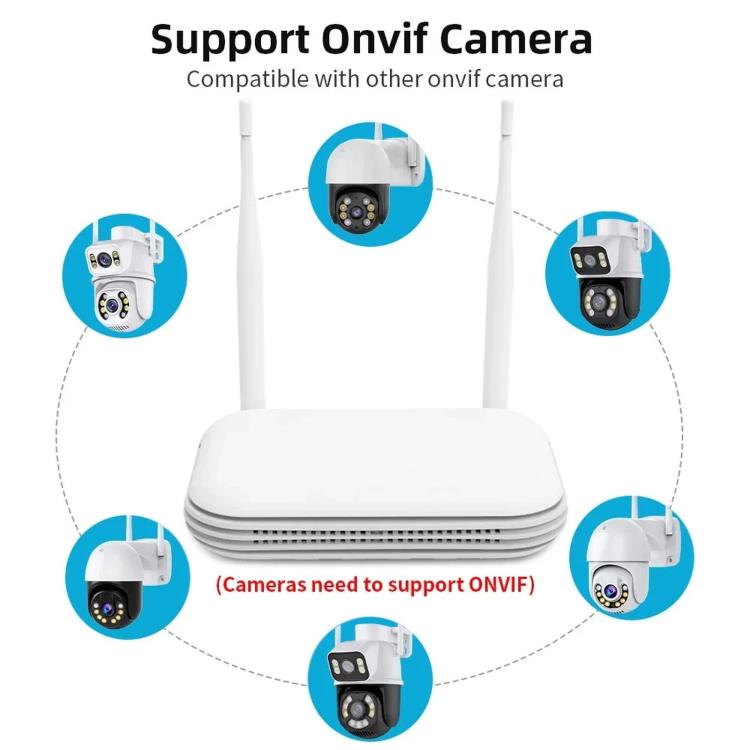

2. 8-Channel Expanded Compatibility: Supports up to 8 channels of 3MP or 4 channels of 5MP WiFi cameras. Fully compatible with ONVIF protocol, allowing you to connect third-party cameras seamlessly for a flexible security setup.

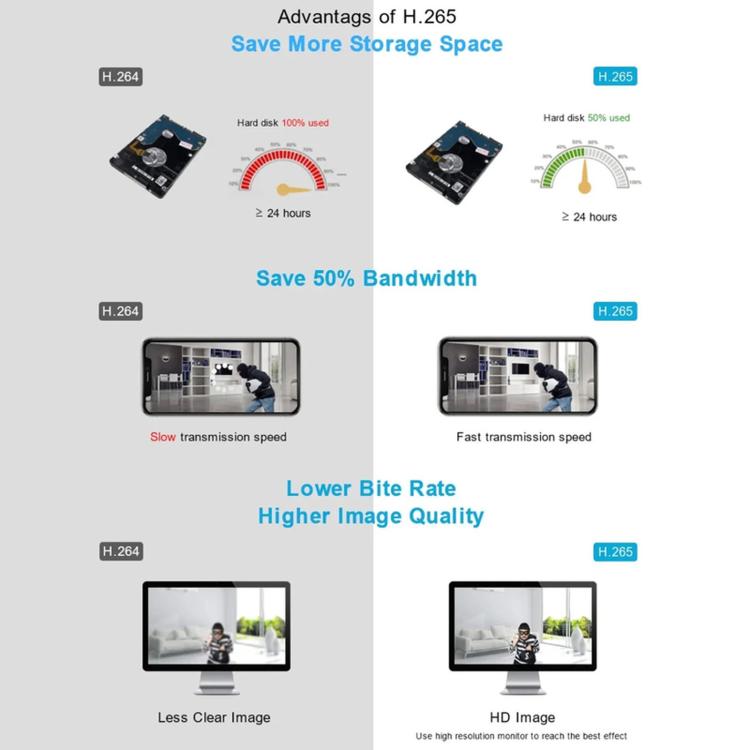

3. H.265+ AI Advanced Compression: Utilizing the latest H.265+ technology, this NVR reduces storage usage and bandwidth by up to 50% compared to H.264, providing smoother video streaming without sacrificing 3MP/5MP high-definition quality.
4. Dual Storage Options: Features a 2.5-inch SATA HDD bay (supports up to 14TB) and a built-in TF card slot (up to 128GB). Supports auto-loop recording and encrypted cloud storage options to ensure your data is always safe and accessible.
5. AI Human & Motion Detection: Works with compatible cameras to support Smart AI Humanoid Detection and Face Detection. Get instant App push alerts on your phone whenever unexpected movement is detected, minimizing false alarms.

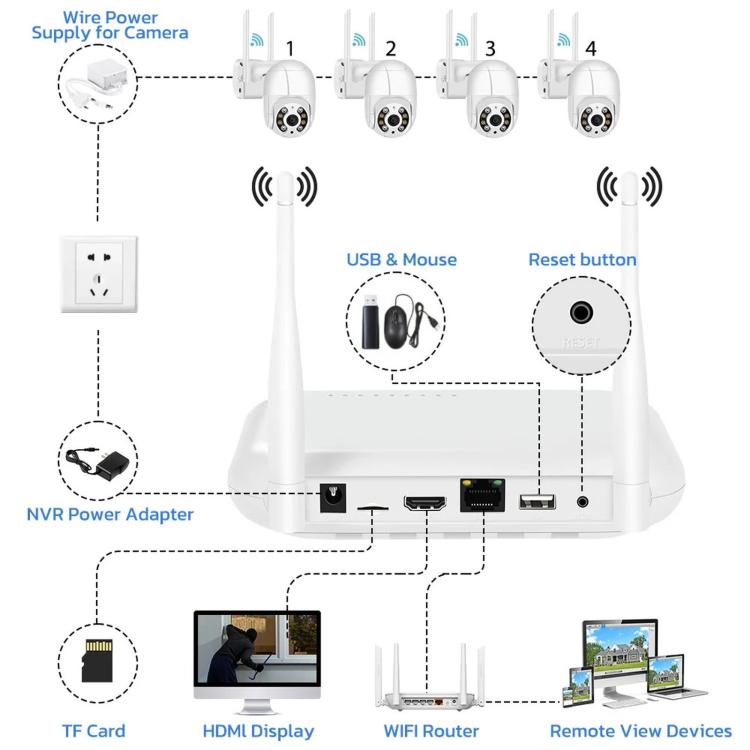

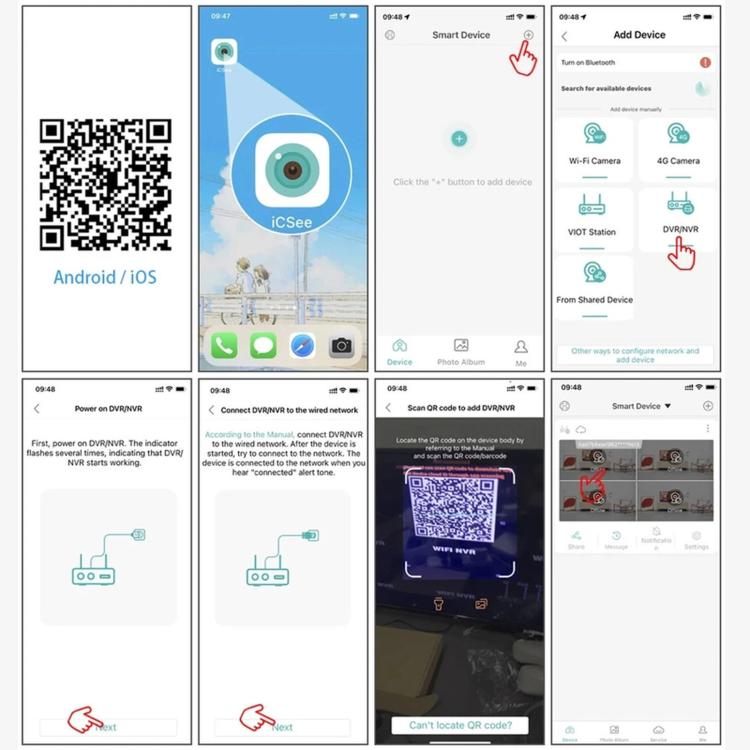

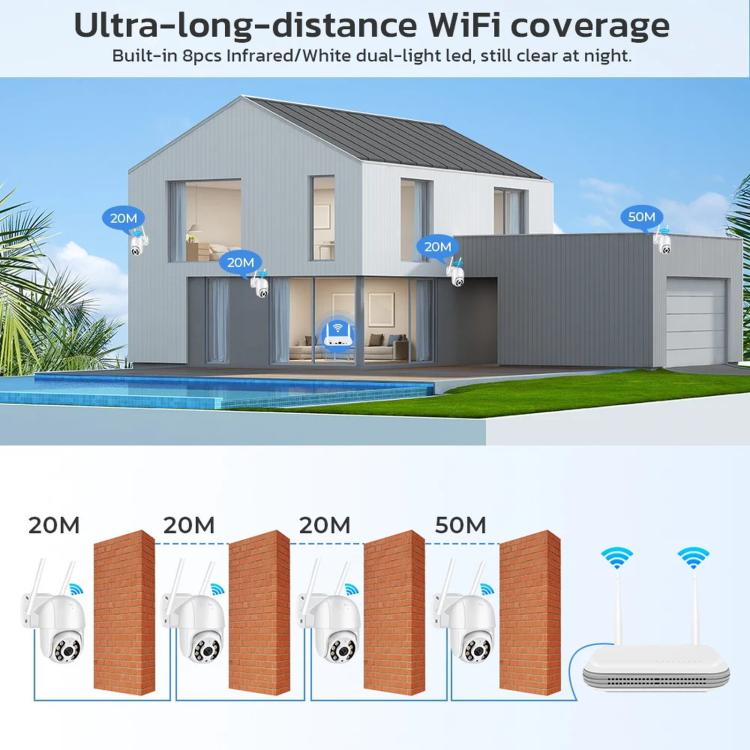

6. Easy Remote Access & Setup: Plug-and-play design with ultra-long-distance WiFi coverage. View live footage or playback anytime via the "XMeye" or "iCSee" App (iOS/Android) and HDMI 1080P local output.

Parameters:
1. System:
-- Main Processor: Hi3536E
-- Operating System: Embedded Linux

2. Video:

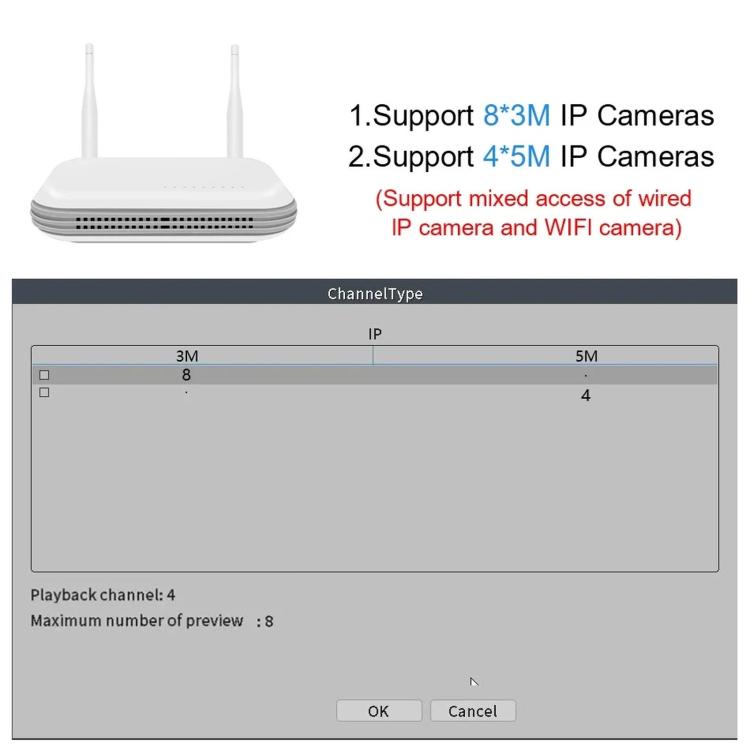

-- Video Input: 8-channel 3MP / 4-channel 5MP
-- Synchronous Playback: 8-channel 3MP / 4-channel 5MP
-- Decoding Type: H.265 AI / H.265+ (Compatible with H.265/H.264)

3. Audio: Voice broadcast, configuration prompts

4. Recording Modes:
-- SD Card Recording: Supported (Max. 128GB)
-- Cloud Storage Recording: Supported
-- Recording Search: Via Mobile App

5. Wireless:
-- Frequency Band: 2.4GHz
-- Transmission Standard: IEEE 802.11b/g/n

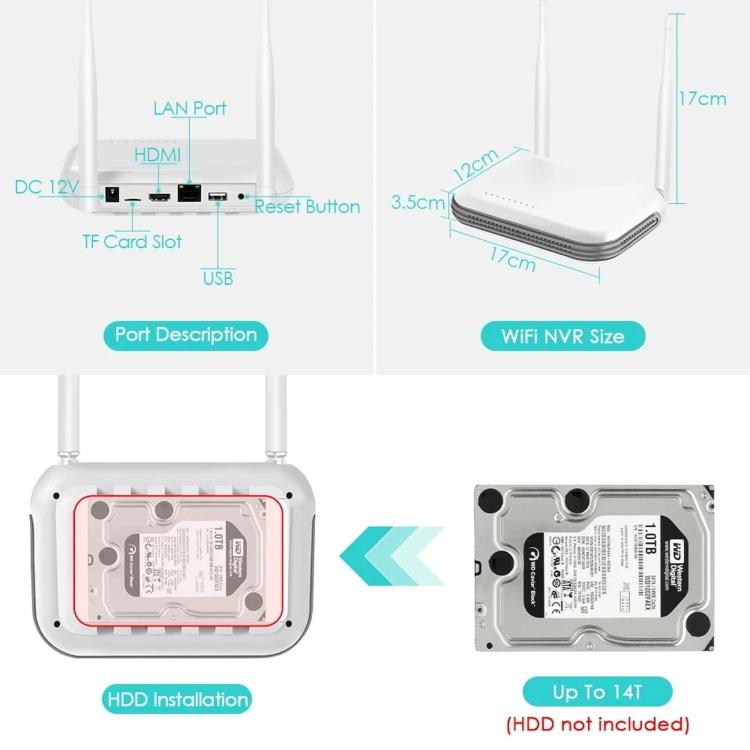

6. Interfaces:
1 x HDMI Port (Output Resolution: Max. 1080P)
1 x SD Card Slot
1 x RJ45 10M/100M Adaptive Ethernet Port
1 x USB 2.0 Port

7. General Specifications:
-- Operating Temperature: 0 – +55 degrees Celsius
-- Operating Humidity: 10% – 90% RH
-- Power Supply: DC 12V
-- Power Consumption: Less than 5W
-- Weight: Approx. 120g
-- Dimensions: 171mm (L) x 136mm (W) x 37mm (H)
中文描述：

1. 使用这款8路无线NVR 升级您的安防系统。这款紧凑型录像机采用海思 Hi3536E 处理器，最高支持500万像素高清接入。其双接口设计同时支持硬盘和TF卡，提供灵活的存储选择。简洁的白色机身配有双天线，确保穿墙信号稳定，是您无线监控系统的理想核心。注：本产品仅为录像机主机，不含摄像机和硬盘。
2. 8路扩展兼容： 支持8路300万或4路500万摄像机，兼容ONVIF协议，支持第三方相机。
3. H.265+ AI 压缩： 节省50%存储空间和带宽，视频预览更流畅。
4. 双存储模式： 支持2.5寸硬盘（最高14TB）和128G TF卡，支持循环录像和云存储。
5. AI 人形人脸检测： 配合兼容相机实现精准告警，减少误报，手机App即时推送。
6. 简便的远程访问与设置：采用即插即用设计，具备超远距离 WiFi 覆盖能力。您可通过“XMeye”或“iCSee”应用程序（支持 iOS/Android）以及 HDMI 1080P 本地输出，随时随地查看实时监控画面或回放录像。

参数：
1. 系统：
--主处理器：Hi3536E
--操作系统：嵌入式LINUX操作系统

2. 视频：
--视频接入：8路3M/4路5M
--同步回放：8路3M/4路5M
--解码类型：H.265 AI/H.265+（兼容H.265/H.264）

3. 音频：语音播报，配置提示音

4. 录像方式：
--SD录像：支持，最大128G
--云存录像：支持
--录像查询：手机APP查询

5. 无线：
--频段：2.4GHz
--传输标准：IEEE802.11b/g/n

6. 接口：
1个HDMI接口（输出分辨率：MAX 1080P）
1个SD接口
1个RJ45 10M/100自适应以太网口
1个USB2.0接口

7. 一般规范：
--工作温度：0摄氏度-＋55摄氏度
--工作湿度：10%-90% RH
--电源：DC12V
--功耗：小于5W
--重量：约120g
--尺寸：171mm(长) x 136mm(宽) x 37mm(高)

搜索关键词：H.265+ NVR, ONVIF NVR, CCTV Recorder,

OEM/ODM are Welcome! we can make Customize design and print your logo
