型号：TBD06069404     大类别：Consumer Electronics     第2级类别：Electronics Module  -->子类别：Arduino Nucleo Accessories   审核产品   所有审核和提问(new)  1688链接英文名称：Waveshare ESP32-S3 RGB Matrix Driver Board Onboard Dual Microphones Array, Supports 2.4 GHz Wi-Fi And Bluetooth 5
中文名称：微雪 ESP32-S3 RGB Matrix驱动板 配备双麦克风阵列 支持2.4 GHz Wi-Fi与Bluetooth 5 (BLE)双模通信

颜色： 包装：Plastic Bag 配件：null 装箱资料： 每箱：120pcs 重量：13.1kgs 外箱尺寸：34cm * 42cm * 32cm 采购:Cary  编辑:Celery(2026-06-12)  美工:Celery

给产品打分

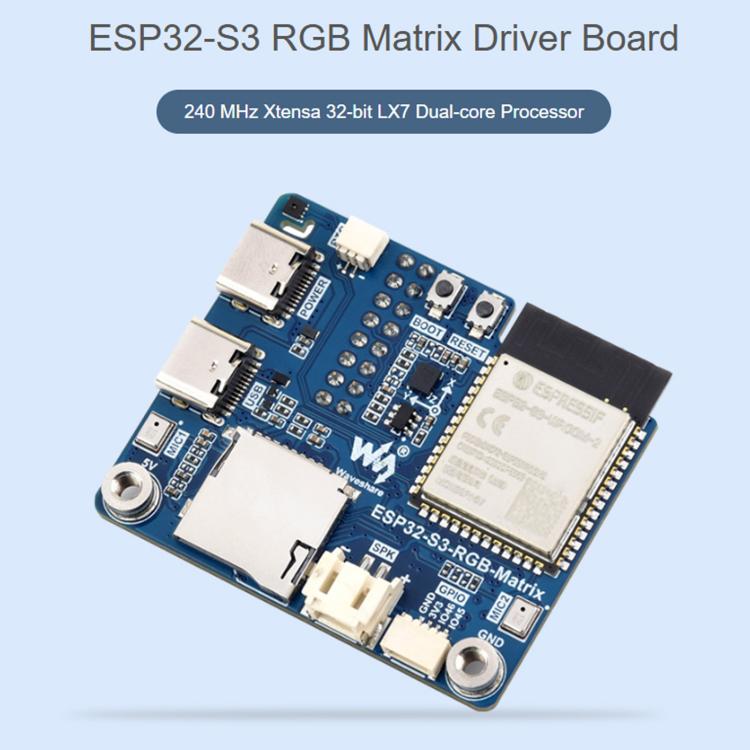

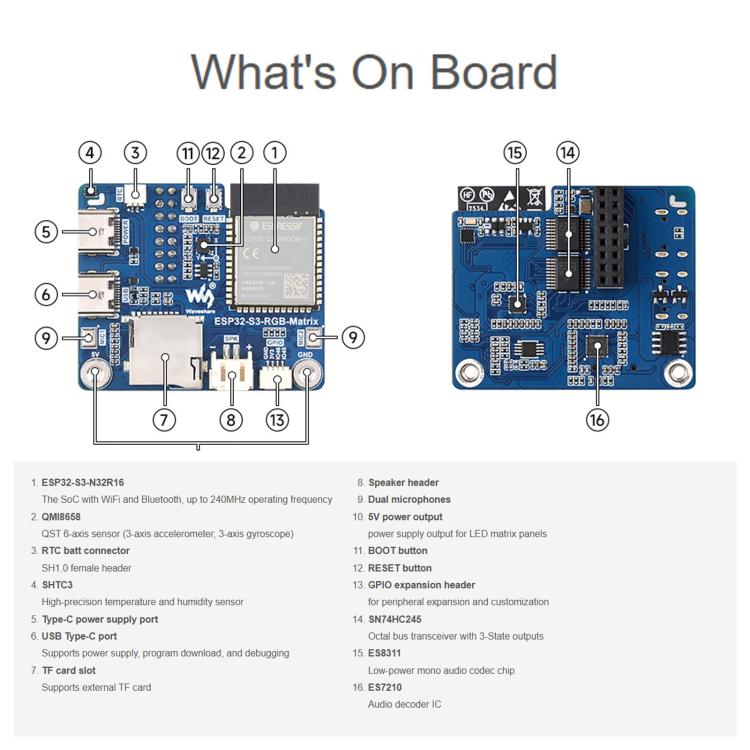

1. The ESP32-S3-RGB-Matrix is a high-performance, highly integrated LED matrix panel driver board. It is suitable for HUB75 interface RGB matrix panels and related embedded applications. Based on the ESP32-S3 microcontroller, it integrates large-capacity Flash storage, RTC chip, IMU, TF card slot, low-power audio codec chip, dual microphones, and so on. It also provides reserved interfaces such as USB, UART, I2C, and GPIO, offering strong scalability and enabling users to quickly develop and integrate it into practical applications.
3. Supports 2.4 GHz Wi-Fi and Bluetooth 5 (BLE) dual-mode communication
4. Includes 512KB SRAM and 384KB ROM; integrates 32MB Flash and 16MB PSRAM to meet storage requirements across various scenarios

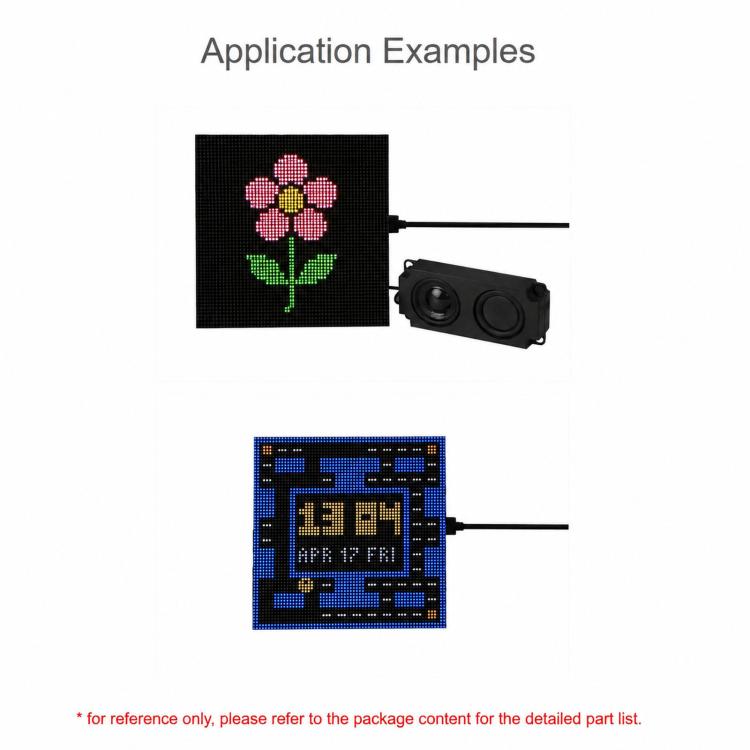

5. Compatible with the full range of Waveshare Matrix-RGB panel sizes; capable of smoothly running graphical interface programs like LVGL
6. Onboard ES7210 echo cancellation chip for enhanced voice processing performance
7. Onboard ES8311 low-power audio codec chip, supporting high-quality audio input and output

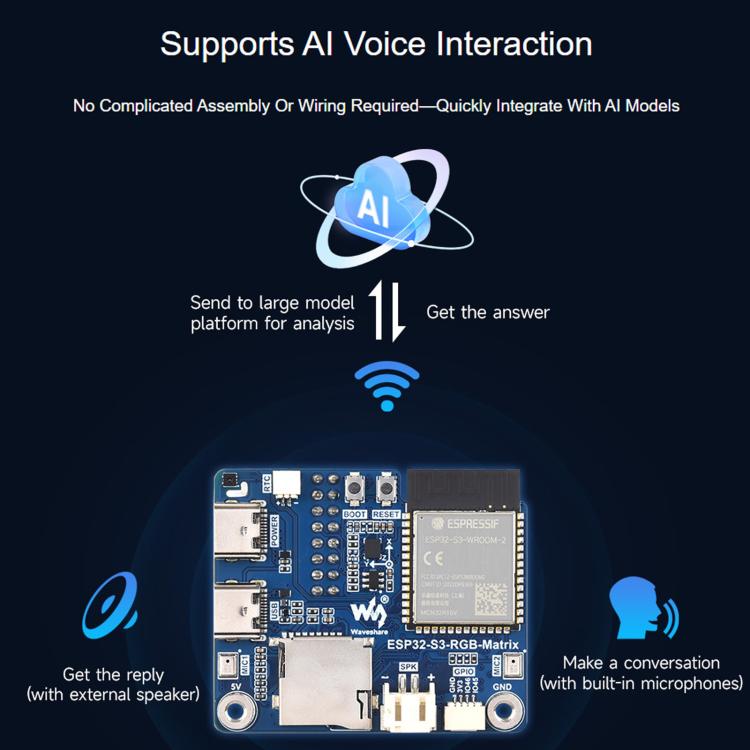

8. Equipped with a dual-microphone array supporting noise reduction and echo cancellation algorithms; suitable for applications such as voice recognition and wake-up
9. Onboard speaker interface for audio output; allows for direct connection to a speaker
10. Integrates the QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope) for attitude detection
11. Integrates the SHTC3 temperature and humidity sensor for precise environmental monitoring
12. Onboard Micro SD card slot for storing images, audio, and various data files, facilitating easy data read/write operations
13. Onboard PCF85063 RTC chip and reserved SH1.0 battery interface; supports timekeeping during power outages
14. Reserved GPIO expansion interface for peripheral expansion and custom functionality, catering to diverse development needs

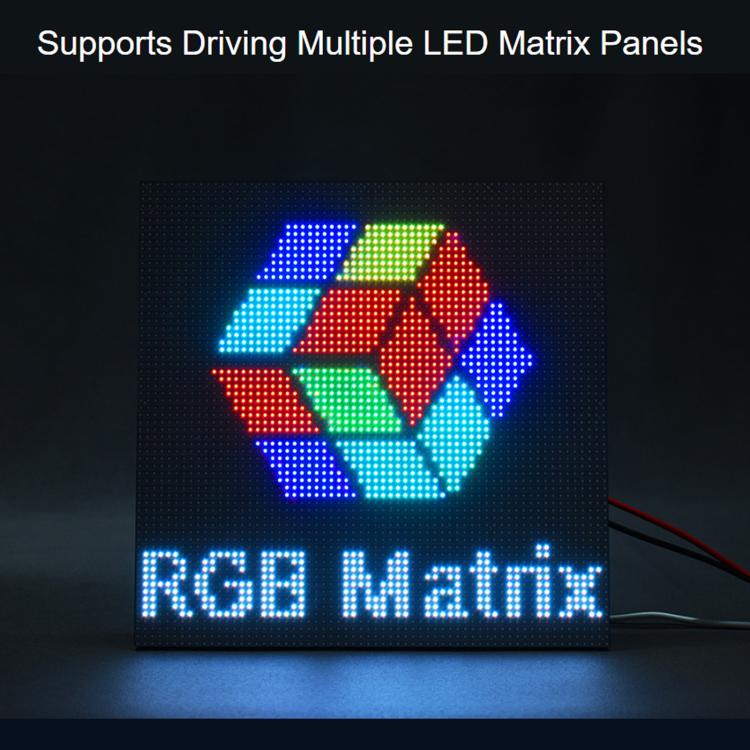

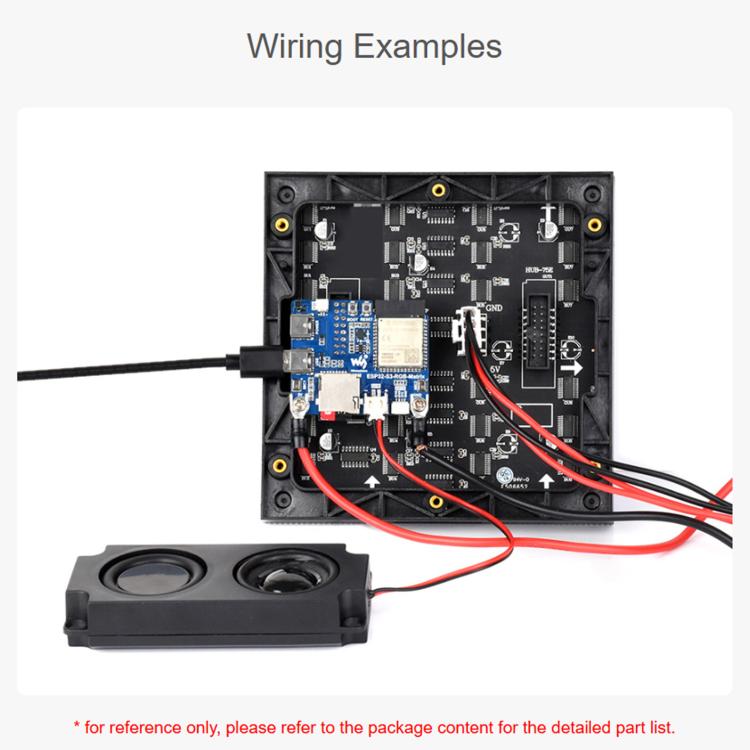

15. Dual power supply interface design; supports stable operation of up to six 64×64 Matrix-RGB panels and allows for cascading expansion to meet large-format display requirements
16. Onboard USB Type-C interface for power supply, programming, and debugging
17. Onboard RST and BOOT buttons; the BOOT button supports custom functions, enhancing development flexibility

Specifications:
1. Power supply voltage: 5V
2. Maximum current capacity: 10A
3. Supported resolutions: 64 × 64 | 64 × 32 | 80 × 40 | 96 × 48
4. Interface type: HUB75
5. Maximum resolution (cascaded): 6 × 64 × 64
6. Operating temperature range: -40 ~ +85 degrees Celsius

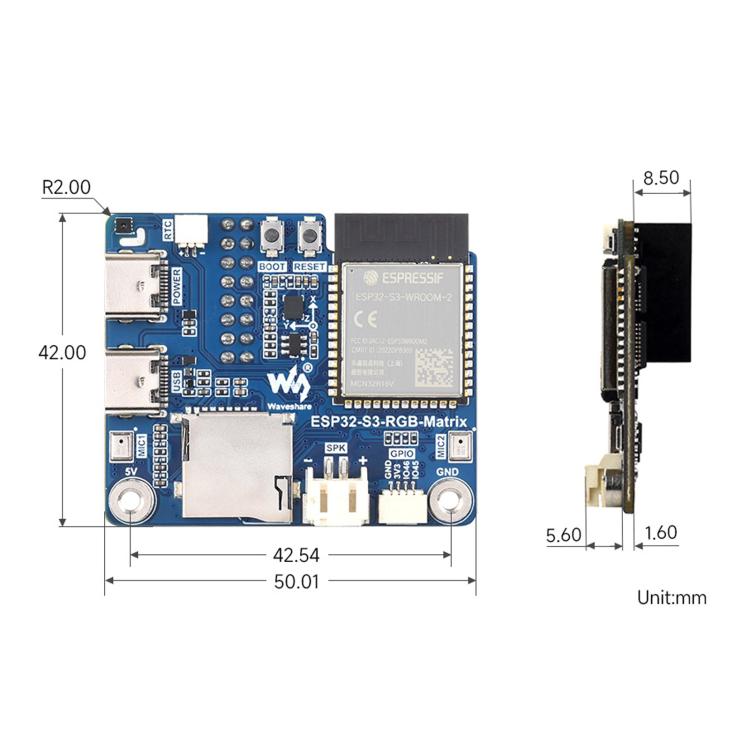

7. Product dimensions: 50 × 42 mm
中文描述：

1. 本产品是款高性能、高集成度的 LED 屏幕显示驱动板，适用于 HUB75 接口 RGB Matrix 显示及相关嵌入式应用。板载高性能微控制器及大容量 Flash，集成 RTC、IMU、Micro SD 卡槽、低功耗音频编解码芯片、双麦克风等丰富外设资源，同时预留 USB、UART、I2C 及 GPIO 等接口，具备良好的扩展能力，方便用户快速开发并嵌入到实际产品中。
2. 采用 ESP32-S3-N32R16 芯片，搭载 Xtensa 32 位 LX7 双核处理器，主频高达 240MHz
3. 支持 2.4 GHz Wi-Fi 与 Bluetooth 5 (BLE) 双模通信
4. 内置 512KB SRAM、384KB ROM，叠封 32MB Flash 与 16MB PSRAM，满足多场景存储需求
5. 兼容微雪 Matrix-RGB 全系列尺寸，可流畅运行 LVGL 等图形界面程序
6. 板载 ES7210 回声消除芯片，提升语音处理效果
7. 板载 ES8311 低功耗音频编解码芯片，支持高质量音频输入输出
8. 配备双麦克风阵列，支持降噪与回声消除算法，适用于语音识别及唤醒等应用场景
9. 板载喇叭接口，支持音频播放输出，可直接连接喇叭使用
10. 集成 QMI8658 六轴惯性测量单元 (3 轴加速度计 + 3 轴陀螺仪)，可实现姿态检测
11. 集成 SHTC3 温湿度传感器，可实现精准的温湿度检测
12. 板载 Micro SD 卡槽，支持图片、音频及各类文件数据存储，方便数据读写
13. 板载 PCF85063 RTC 实时时钟芯片，预留 SH1.0 电池接口，支持掉电持续计时
14. 预留 GPIO 扩展接口，便于外设扩展与功能定制，适配多样化开发需求
15. 双供电接口设计，最多支持 6 块 64 × 64 Matrix-RGB 屏幕稳定工作，支持级联扩展，满足大尺寸显示需求
16. 板载 USB Type-C 接口，支持供电、程序下载与调试，操作便捷
17. 板载 RST / BOOT 按钮，其中 BOOT 按钮支持自定义功能，提升开发灵活性

参数：
1. 供电电压：5V
2. 可承受电流MAX：10A
3. 可驱动分辨率：64 × 64?|?64 × 32?|?80 × 40?|?96 × 48
4. 接口类型：HUB75
5. MAX分辨率 (级联)：6 × 64 × 64
6. 工作温度范围：-40 ~ +85摄氏度
7. 产品尺寸：50 × 42 mm

搜索关键词：LED matrix panel driver board, RGB matrix panels, ESP32-S3 Driver Board for AIoT applications
