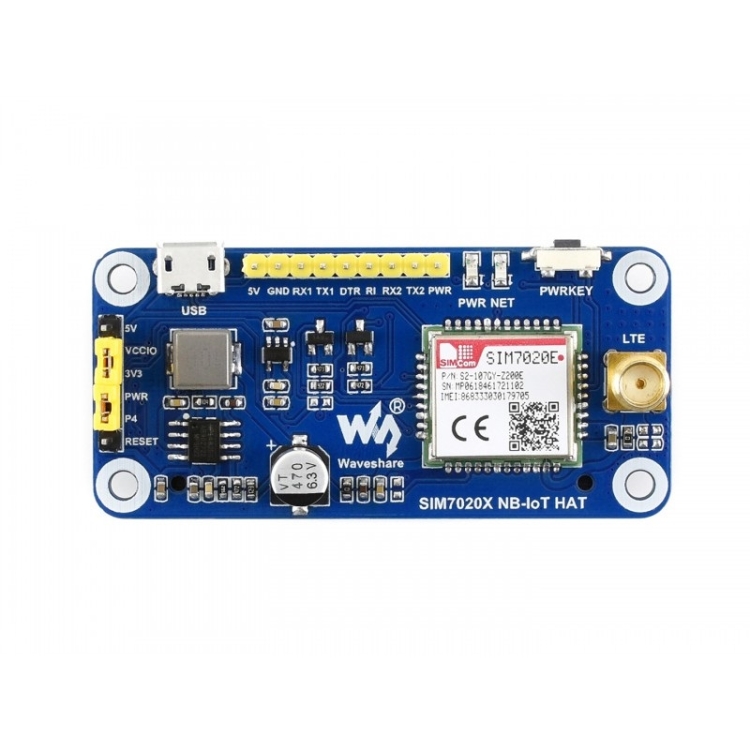

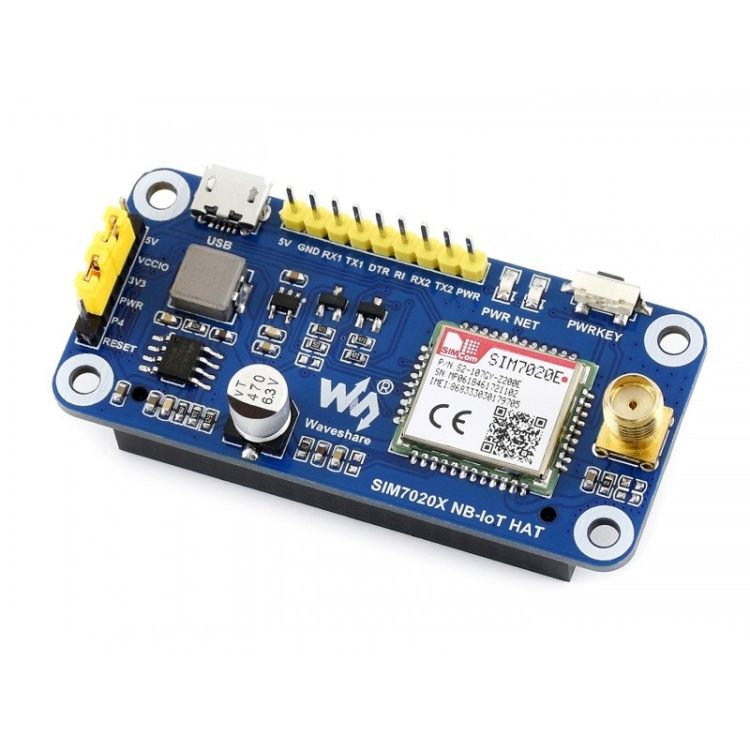

NB-IoT HAT for Raspberry Pi, Based on SIM7020E, B1/B3/B5/B8/B20/B28 Bands

Applicable Region
1. SIM7020E is mainly applicable in Europe, Asia, Africa, Australia.
2. Please check the supported bands according to your local service provider when placing order.

Overview

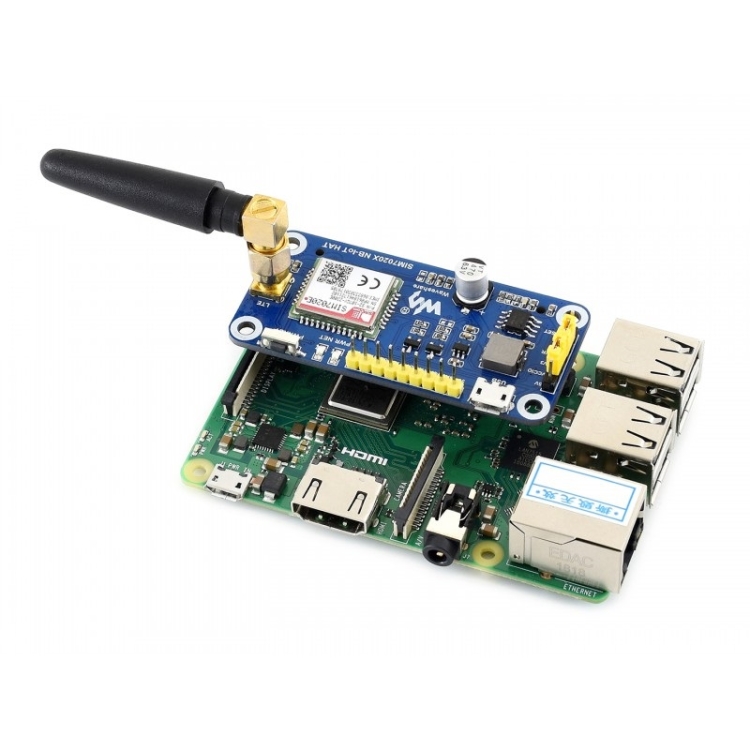

This is an NB-IoT (NarrowBand-Internet of Things) HAT for Raspberry Pi, controlled via serial AT commands, supports communication protocols like LWM2M/COAP/MQTT, etc. Due to the advantages of low delay, low power, low cost, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, and so on.

Features
1. Raspberry Pi connectivity, compatible with any revision
2. Support communication protocols such as LWM2M/COAP/MQTT/TCP/UDP/HTTP/HTTPS, etc.
3. Onboard USB interface, for power supply OR debugging
4. Breakout UART control pins, to connect with host boards like Arduino/STM32
5. Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper

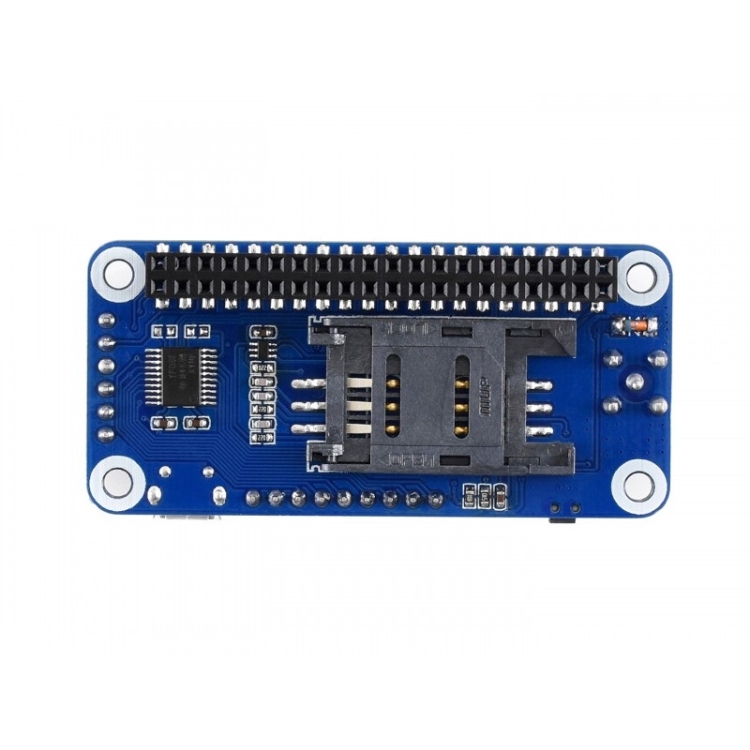

6. SIM card slot, supports NB-IoT specific card
7. 2x LED indicators, easy to monitor the working status
8. Baudrate: 300bps~921600bps (115200bps by default)
9. Control via AT commands (V.25TER, 3GPP TS 27.007, and SIMCOM AT Commands)
10. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32/Python)

Communications Specifications
1. Band
- FDD-LTE B1/B3/B5/B8/B20/B28
2. Data rate
- Uplink=<62.5Kbps
- Downlink=<26.15Kbps
3. SMS
- Text mode and PDU mode (depends on the NB card)

General Specifications
1. Power supply: 5V
2. Logic level: 5V/3.3V (3.3V by default)
3. Overall current (idle mode): ~18mA
4. Single module current (VBAT=3.3V):
- Idle mode: 5.6mA
- Sleep mode: 0.4mA
- PSM mode: 5uA
- eDRX mode: 70uA (eDRX=655.36s)

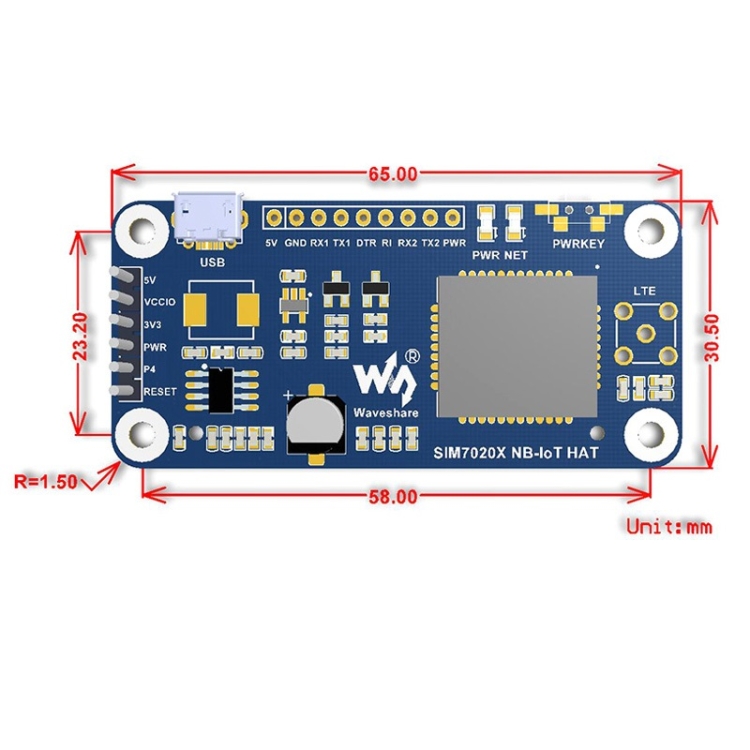

5. Dimension: 30.5mm x 65.0mm

Package Contents

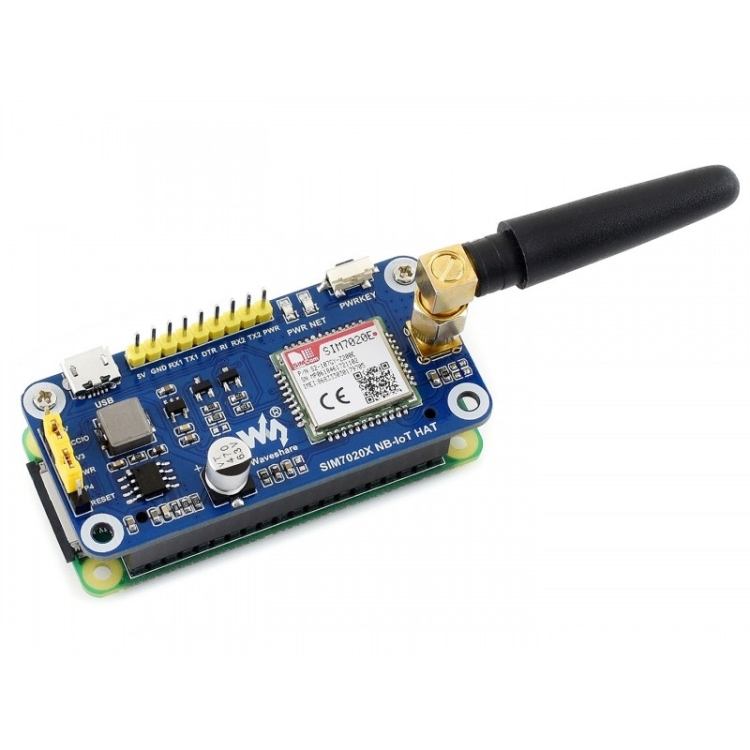

1. SIM7020E NB-IoT HAT x1
2. Antenna x1
3. USB type A plug to micro plug cable x1
4. RPi screws pack (2pcs) x1
Note: The Raspberry Pi is NOT included.
中文描述：
Raspberry Pi的NB-IoT HAT，基于SIM7020E，B1 / B3 / B5 / B8 / B20 / B28频段

适用地区
1. SIM7020E主要适用于欧洲，亚洲，非洲，澳大利亚。
2. 下订单时，请根据当地服务提供商检查支持的频段。

概观
这是Raspberry Pi的NB-IoT（NarrowBand-Internet of Things）HAT，通过串行AT命令控制，支持LWM2M / COAP / MQTT等通信协议。由于具有低延迟，低功耗，低成本的优点，覆盖范围广，是物联网应用的理想选择，如智能仪表，资产跟踪，远程监控等。

特征
1. Raspberry Pi连接，兼容任何版本
2. 支持LWM2M / COAP / MQTT / TCP / UDP / HTTP / HTTPS等通信协议。
3. 板载USB接口，用于电源或调试
4. 突破UART控制引脚，与Arduino / STM32等主机板连接
5. 板载电压转换器，默认为3.3V，允许通过板载跳线切换到5V
6. SIM卡插槽，支持NB-IoT专用卡
7. 2个LED指示灯，便于监控工作状态
8. 波特率：300bps~921600bps（默认为115200bps）
9. 通过AT命令控制（V.25TER，3GP​​P TS 27.007和SIMCOM AT命令）
10. 附带开发资源和手册（Raspberry Pi / Arduino / STM32 / Python示例）

通信规格
1. 频段
- FDD-LTE B1 / B3 / B5 / B8 / B20 / B28
2. 数据速率
- 上行链路≤62.5Kbps
- 下行链路≤26.15Kbps
3. 短信
- 文本模式和PDU模式（取决于NB卡）

一般规格
1. 电源：5V
2. 常规电压：5V / 3.3V（默认为3.3V）
3. 总电流（空闲模式）：~18mA
4. 单模块电流（VBAT = 3.3V）：
- 空闲模式：5.6mA
- 睡眠模式：0.4mA
- PSM模式：5uA
- eDRX模式：70uA（eDRX = 655.36s）
5. 尺寸：30.5mm x 65.0mm


包装内容
1. SIM7020E NB-IoT HAT x1
2. 天线x1
3. USB A型插头到微型插头电缆x1
4. RPi螺丝包（2个）x1
注意：不包括Raspberry Pi。
